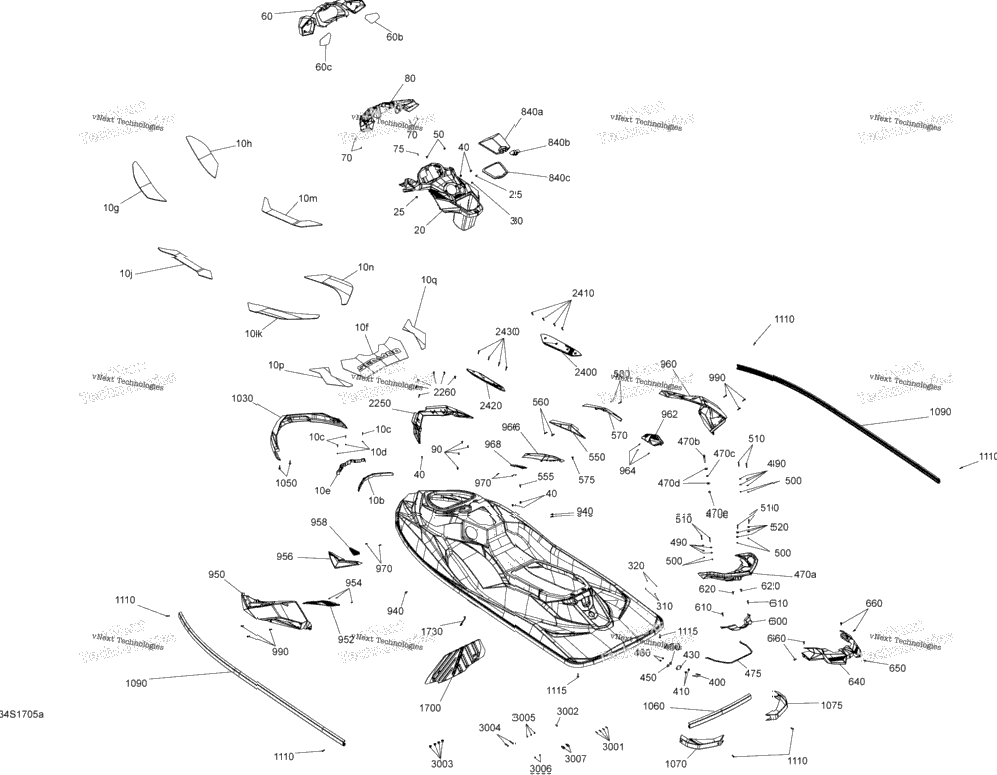

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 291003897 | Deck Nose | 1 |
| 3 | 241142560 | Hex. Flange Screw K40 X 25 | 3 |
| 3 | 234042600 | Flat Washer 4 mm, Stainless | 3 |
| 1 | 291003704 | Bumper Support | 1 |
| 1 | 291003586 | Platform Carpet | 1 |
| 1 | 291003587 | Front Carpet LH | 1 |
| 1 | 291003588 | Front Carpet RH | 1 |
| 1 | 291003589 | Center Front Carpet LH | 1 |
| 1 | 291003577 | Rear Center Carpet LH | 1 |
| 1 | 291003591 | Center Front Carpet RH | 1 |
| 1 | 291003578 | Rear Center Carpet RH | 1 |
| 1 | 291003593 | Rear Carpet LH | 1 |
| 1 | 291003594 | Rear Carpet RH | 1 |
| 1 | 291004282 | Console | 1 |
| 2 | 414644300 | Black, Dart | 2 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 5 | 293150123 | Pop Rivet 3/16" | 5 |
| 2 | 293150186 | Pop Rivet 3/16 | 2 |
| 1 | 291004261 | Black Bezel Ass'y Includes 60 to 60c | 1 |
| 1 | 291003090 | Mirror RH, With Double-Face Tape | 1 |
| 1 | 291003091 | Mirror LH, With Double-Face Tape | 1 |
| 4 | 250000287 | Flange Torx Screw K40 X 16 Model North America | 4 |
| 1 | 250000735 | Torx Screw K40 X 16 Model North America | 1 |
| 1 | 291004271 | Deep Black, Mirror Support | 1 |
| 4 | 293150123 | Pop Rivet 3/16" Model North America | 4 |
| 2 | 293150016 | Rivet 1/8" | 2 |
| 2 | 293000014 | Black, Snap Cap | 2 |
| 1 | 292000933 | U-Clamp | 1 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 1 | 291001386 | Black, Finition Plate | 1 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 291004628 | Rear Grab Handle Model White | ||
| 1 | 291004629 | Rear Grab Handle Model Red | 1 |
| 1 | 291003877 | Stud Seat | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 1 | 232501200 | Elastic Stop Nut M10, Brass | 1 |
| 1 | 293250289 | Seal | 1 |
| 8 | 234062600 | Flat Washer M6, Stainless | 8 |
| 6 | 232561200 | Elastic Stop Nut M6, Brass | 6 |
| 6 | 207164060 | Hex. Screw M6 X 40 | 6 |
| 4 | 250200022 | Flat Washer M6.6 X 22 | 4 |
| 291004363 | RED LH COSMETIC Model Red | ||
| 1 | 291004428 | Yellow Cosmetic LH Model White | 1 |
| 1 | 293730006 | Black, Dart | 1 |
| 2 | 250000828 | Screw Torx M6.81 X 30 | 2 |
| 291004364 | RED COSMETIC RH Model Red | ||
| 1 | 291004431 | Yellow Cosmetic RH Model White | 1 |
| 1 | 291003372 | Deep Black, Vent Cover | 1 |
| 2 | 293730006 | Black, Dart | 2 |
| 1 | 291004365 | Deep Black, Cosmetic Rear | 1 |
| 1 | 250000828 | Screw Torx M6.81 X 30 | 1 |
| 4 | 293730006 | Black, Dart | 4 |
| 1 | 291004579 | Deep Black, Glove Box Door | 1 |
| 1 | 264000091 | Black, Latch | 1 |
| 1 | 293250265 | Urethane Seal | 1 |
| 1 | 291004314 | Black Side Cosmetic LH Model Red | 1 |
| 291004416 | COSMETIC Model White | ||
| 1 | 291003348 | Black, LH Side Grille | 1 |
| 3 | 250000287 | Flange Torx Screw K40 X 16 | 3 |
| 1 | 291004368 | Red Front Cosmetic LH Model Red | 1 |
| 1 | 291004417 | Front Cosmetic LH Model White | 1 |
| 1 | 291003343 | Deep Black, LH Front Hood Grille | 1 |
| 1 | 291004316 | Side Cosmetic RH Model Red | 1 |
| 291004419 | RH. COSMETIC Model White | ||
| 1 | 291003349 | Deep Black, RH Side Grille | 1 |
| 1 | 291004369 | Red Front Cosmetic RH Model Red | 1 |
| 1 | 291004420 | Front Cosmetic RH Model White | 1 |
| 1 | 291003344 | Deep Black, RH Front Hood Grill | 1 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 6 | 250000828 | Screw Torx M6.81 X 30 | 6 |
| 1 | 291004277 | Front Bumper | 1 |
| 2 | 250000399 | Hexagonal Cap Screw M6 X35 | 2 |
| 291004451 | Black, Side Bumper | ||
| 1 | 291004278 | Black, Corner Bumper | 1 |
| 1 | 291004279 | Black, Corner Bumper | 1 |
| 1 | 291004572 | Divider Ass'y | 1 |
| 1 | 269502111 | Holding Strap | 1 |
| 1 | 291004367 | Deflector | 1 |
| 1 | 291004317 | Footrest | 1 |
| 4 | 250000710 | Torx Screw M6 X 3 | 4 |
| 1 | 291004319 | Footrest | 1 |
| 4 | 250000287 | Flange Torx Screw K40 X 16 Model Europe | 4 |
| 1 | 250000735 | Torx Screw K40 X 16 Model Europe | 1 |
| 4 | 293150123 | Pop Rivet 3/16" Model Europe | 4 |
| 2 | 207153060 | Hex. Flange Screw M5 X 30 Model Europe | 2 |
| 3 | 211200035 | Flat Washer Model Europe | 3 |
| 2 | 232551200 | Elastic Stop Nut 5 mm Model Europe | 2 |
| 2 | 293150089 | Tuflok Plastic Rivet Model Europe | 2 |
