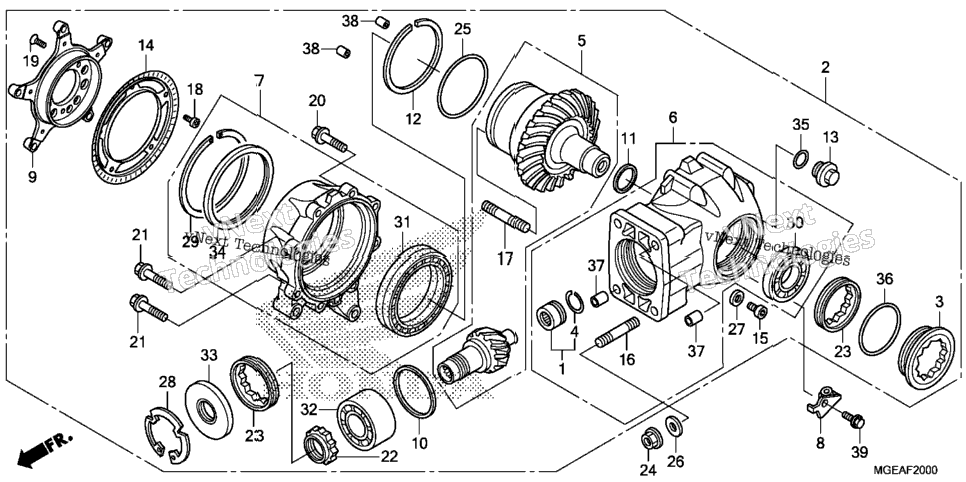

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06910-MCA-000 | BEARING SET, NEEDLE | 1 |
| 1 | 41300-MGE-040 | GEAR ASSY., FINAL | 1 |
| 1 | 41302-MGE-020 | BOLT, GEAR CASE | 1 |
| 1 | 41305-MB4-770 | RING, STOPPER | 1 |
| 1 | 41310-MGE-000 | GEAR SET, FINAL | 1 |
| 1 | 41311-MGE-010 | CASE SUB-ASSY., FINAL GEAR | 1 |
| 1 | 41320-MGE-010 | COVER SUB-ASSY., FINAL GEAR | 1 |
| 1 | 41352-MGE-010 | STAY, FINAL GEAR COVER | 1 |
| 1 | 41441-MGE-000 | FLANGE, FINAL GEAR SIDE | 1 |
| 1 | 41450-MGE-000 | SHIM A, PINION GEAR (1.32) | 1 |
| 1 | 41451-MGE-000 | SHIM B, PINION GEAR (1.38) | 1 |
| 1 | 41452-MGE-000 | SHIM C, PINION GEAR (1.44) | 1 |
| 1 | 41453-MGE-000 | SHIM D, PINION GEAR (1.50) | 1 |
| 1 | 41454-MGE-000 | SHIM E, PINION GEAR (1.56) | 1 |
| 1 | 41455-MGE-000 | SHIM F, PINION GEAR (1.62) | 1 |
| 1 | 41456-MGE-000 | SHIM G, PINION GEAR (1.68) | 1 |
| 1 | 41505-MGE-000 | SHIM Q, RING GEAR (1.58) | 1 |
| 1 | 41506-MGE-000 | SHIM R, RING GEAR (1.61) | 1 |
| 1 | 41507-MGE-000 | SHIM S, RING GEAR (1.64) | 1 |
| 1 | 41508-MGE-000 | SHIM T, RING GEAR (1.67) | 1 |
| 1 | 41509-MGE-000 | SHIM U, RING GEAR (1.70) | 1 |
| 1 | 41510-MGE-000 | SHIM A, RING GEAR (1.73) | 1 |
| 1 | 41511-MGE-000 | SHIM B, RING GEAR (1.76) | 1 |
| 1 | 41512-MGE-000 | SHIM C, RING GEAR (1.79) | 1 |
| 1 | 41513-MGE-000 | SHIM D, RING GEAR (1.82) | 1 |
| 1 | 41514-MGE-000 | SHIM E, RING GEAR (1.85) | 1 |
| 1 | 41515-MGE-000 | SHIM F, RING GEAR (1.88) | 1 |
| 1 | 41516-MGE-000 | SHIM G, RING GEAR (1.91) | 1 |
| 1 | 41517-MGE-000 | SHIM H, RING GEAR (1.94) | 1 |
| 1 | 41518-MGE-000 | SHIM I, RING GEAR (1.97) | 1 |
| 1 | 41519-MGE-000 | SHIM J, RING GEAR (2.00) | 1 |
| 1 | 41520-MGE-000 | SHIM K, RING GEAR (2.03) | 1 |
| 1 | 41521-MGE-000 | SHIM L, RING GEAR (2.06) | 1 |
| 1 | 41522-MGE-000 | SHIM M, RING GEAR (2.09) | 1 |
| 1 | 41523-MGE-000 | SHIM N, RING GEAR (2.12) | 1 |
| 1 | 41524-MGE-000 | SHIM O, RING GEAR (2.15) | 1 |
| 1 | 41525-MGE-000 | SHIM P, RING GEAR (0.45) | 1 |
| 1 | 41530-MCA-000 | SHIM A, RING GEAR (1.82) | 1 |
| 1 | 41531-MCA-000 | SHIM B, RING GEAR (1.88) | 1 |
| 1 | 41532-MCA-000 | SHIM C, RING GEAR (1.94) | 1 |
| 1 | 41533-MCA-000 | SHIM D, RING GEAR (2.00) | 1 |
| 1 | 41534-MCA-000 | SHIM E, RING GEAR (2.06) | 1 |
| 1 | 41535-MCA-000 | SHIM F, RING GEAR (2.12) | 1 |
| 1 | 41536-MCA-000 | SHIM G, RING GEAR (2.18) | 1 |
| 1 | 41537-MCA-000 | SHIM H, RING GEAR (2.24) | 1 |
| 1 | 41538-MCA-000 | SHIM I, RING GEAR (2.30) | 1 |
| 1 | 41539-MCA-000 | SHIM J, RING GEAR (2.36) | 1 |
| 1 | 41540-MCA-000 | SHIM K, RING GEAR (2.42) | 1 |
| 1 | 41541-MCA-000 | SHIM L, RING GEAR (2.48) | 1 |
| 1 | 41542-MCA-000 | SHIM M, RING GEAR (2.54) | 1 |
| 1 | 41543-MCA-000 | SHIM N, RING GEAR (2.60) | 1 |
| 1 | 41545-MCA-000 | SHIM Q, RING GEAR (1.64) | 1 |
| 1 | 41546-MCA-000 | SHIM R, RING GEAR (1.70) | 1 |
| 1 | 41547-MCA-000 | SHIM S, RING GEAR (1.76) | 1 |
| 1 | 41530-MGE-000 | CAP, FINAL GEAR CASE HOLE | 1 |
| 1 | 42515-MGE-000 | RING, RR. PULSER | 1 |
| 1 | 90109-ME5-770 | BOLT, SOCKET (8X11) | 1 |
| 4 | 90124-MGE-300 | BOLT, STUD (12X48) | 4 |
| 5 | 90125-MCA-300 | BOLT, STUD (12X46) | 5 |
| 5 | 90131-MGE-000 | BOLT, TORX (5X8) | 5 |
| 2 | 90132-MCA-000 | SCREW, FLAT (6X16) | 2 |
| 6 | 90133-MCA-000 | BOLT, FLANGE (8X30) | 6 |
| 2 | 90134-MGE-000 | BOLT, FLANGE (10X35) | 2 |
| 1 | 90241-MCH-000 | NUT, LOCK (35MM) | 1 |
| 2 | 90242-MCH-000 | NUT, LOCK (75MM) | 2 |
| 4 | 90309-375-003 | NUT, FLANGE (12MM) | 4 |
| 1 | 90351-MCA-003 | O-RING | 1 |
| 4 | 90440-GT4-970 | WASHER, PLAIN (12MM) | 4 |
| 1 | 90471-580-000 | GASKET (8MM) | 1 |
| 1 | 90653-MGE-000 | RING, STOPPER | 1 |
| 1 | 90655-MGE-000 | CIRCLIP (INNER) (124.5MM) | 1 |
| 1 | 91002-KCW-J11 | BEARING, RADIAL BALL SPECIAL SPL (6207) | 1 |
| 1 | 91051-MCA-003 | BEARING, RADIAL BALL (100X125X26) | 1 |
| 1 | 91052-MGE-003 | BEARING, RADIAL BALL (DE07) | 1 |
| 1 | 91261-MGE-003 | OIL SEAL (32X77X6) | 1 |
| 1 | 91265-MGE-013 | OIL SEAL (110X124X7) | 1 |
| 1 | 91352-MGE-003 | O-RING (21.5X2.9) | 1 |
| 1 | 91353-MGE-003 | O-RING (76.5X2) | 1 |
| 2 | 94301-14200 | PIN, DOWEL (14X20) | 2 |
| 2 | 94303-10160 | PIN, DOWEL (10X16) | 2 |
| 1 | 96001-06012-07 | BOLT, FLANGE (6X12) | 1 |
