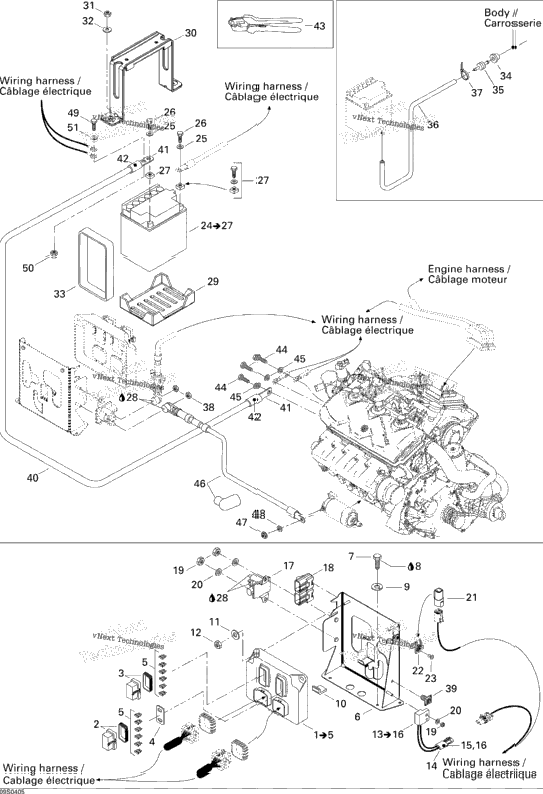

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001913 | Electronic Module Includes 1 to 5 | ||
| 1 | 278001618 | Fuse Holder Cover | 1 |
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001719 | COVER BUSHING | ||
| 1 | 409012800 | FUSE, 1 AMPERE | 1 |
| 1 | 278001442 | FUSE, 2 AMPERES | 1 |
| 278001196 | FUSE, 3 AMPERES | ||
| 3 | 278000344 | Fuse, 5 Amperes | 3 |
| 1 | 278000704 | FUSE, 7.5 AMPERES | 1 |
| 5 | 278001197 | Fuse, 10 Amperes | 5 |
| 278001870 | Module Support | ||
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 4 | 211200043 | WASHER-LOCK IMPERIAL | 4 |
| 1 | 278001166 | MODULE PROTECTOR | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 278001547 | T.O.P.S. SWITCH Includes 13 to 16 | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 1 | 278000222 | Male Terminal | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 1 | 278001802 | Relay Starter | 1 |
| 1 | 710000342 | HOUSING COVER | 1 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 1 | 278001725 | Diagnostic Connect Cap | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 204000081 | Pop Rivet 3/16" | 1 |
| 1 | 278001882 | Battery, 30 Amperes Includes 24 to 27 | 1 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211000045 | Battery Screw | 2 |
| 1 | 295500849 | Battery Fastener Kit | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278001582 | LOWER BATTERY PAD | ||
| 278001677 | BATTERY SUPPORT | ||
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 1 | 278001764 | BATTERY STRAP 337 MM | 1 |
| 1 | 293720029 | Grommet | 1 |
| 275500499 | CHECK VALVE | ||
| 275500446 | HOSE 6 MM | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 278001775 | Self-Locking Clip | ||
| 278001611 | Battery Ground Cable Ass'y Includes 41,42 | ||
| XXXX | Not Available As Spare Part - Terminal 30° (2 Holes) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45° (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90° (Small Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45° (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90° (Big Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal | ||
| XXXX | Not Available As Spare Part - Heat Shrink | ||
| XXXX | Not Available As Spare Part - Crimp Plier | ||
| 3 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 3 |
| 1 | 278001862 | Starter Cable | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 207161260 | Hex. Cap Screw M6 X 12 | 1 |
