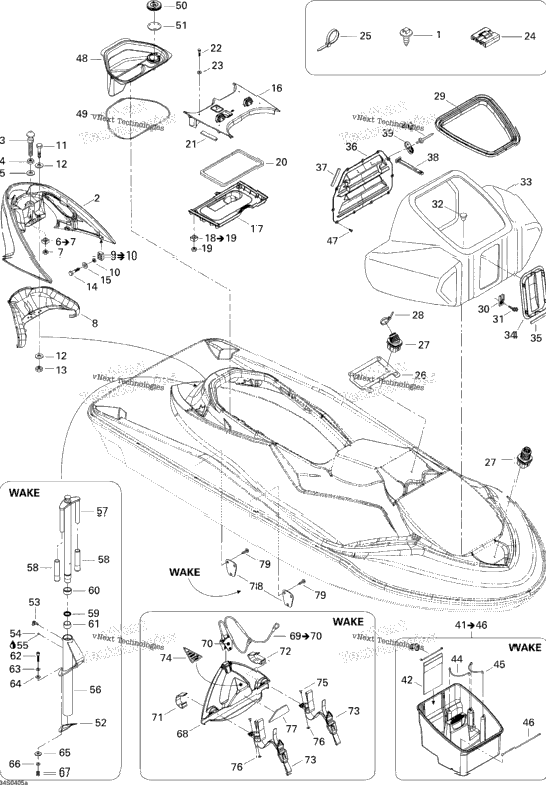

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 269000722 | GRAB HANDLE, BLACK | 1 |
| 1 | 291000945 | SEAT STUD | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 271000598 | NUT HOUSING ASS'Y Includes items 6 to 7 | ||
| 1 | 232501600 | HEX. ELASTIC NUT M10 | 1 |
| 1 | 269000749 | HANDLE COVER, BLACK | 1 |
| 4 | 269500252 | M6 Nut Housing Ass'y Includes items 9 to 10 | 4 |
| 4 | 232061600 | Hex. Nut M6 | 4 |
| 2 | 207084560 | Hex. Screw M8 X 45 | 2 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 4 | 207162560 | Hex. Screw M6 X 25 | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 291001602 | Upper Bridge, Black | ||
| 291001599 | Lower Bridge, Black | ||
| 1 | 269500252 | M6 Nut Housing Ass'y Includes items 18 to 19 | 1 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 1 | 293200090 | GASKET | 1 |
| 293250008 | GASKET PAC = 1.0m | ||
| 207167560 | Hex. Screw M6 X 75 | ||
| 2 | 293750025 | Tie-Rap Mount | 2 |
| 2 | 414115200 | Tie-Rap 180 mm | 2 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293250068 | Gasket | 1 |
| 2 | 293720042 | GROMMET | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 269501234 | Cover Trim | ||
| 1 | 270000141 | Clip | 1 |
| 1 | 241642060 | Flange Screw K40 X 20 | 1 |
| 1 | 291000279 | Black Plug | 1 |
| 269500955 | Front Tray | ||
| 291001744 | Front Door | ||
| 1 | 219704372 | Was 293250087 Gasket | 1 |
| 291001743 | Rear Door | ||
| 2 | 269500408 | Strap | 2 |
| 2 | 269500521 | Hook | 2 |
| 2 | 293150027 | Avdel Rivet | 2 |
| 1 | 269501160 | Removable Tray Ass'y Includes items 41 to 46 / WAKE | 1 |
| 269501161 | |||
| 2 | 269501175 | STRAP | 2 |
| 1 | 269501174 | STRAP | 1 |
| 1 | 269501175 | STRAP | 1 |
| 1 | 269501176 | STRAP | 1 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 269501036 | Rear Tray | ||
| 1 | 269000788 | COVER | 1 |
| 1 | 269000810 | COVER SEAL | 1 |
| 1 | 293250151 | Seal WAKE | 1 |
| 204070412 | Retractable Spring Pin WAKE | ||
| 1 | 206560860 | SOCKET SET SCREW M6 X 8 WAKE | 1 |
| 1 | 293800060 | Loctite 243, 10 ml WAKE | 1 |
| 291001921 | Support WAKE | ||
| 291001903 | Ski Pole WAKE | ||
| 2 | M5340464 | Gaine Poignee *Grip-Handle WAKE | 2 |
| 293300106 | X-ring WAKE | ||
| 291001940 | Upper Sleeve WAKE | ||
| 291001941 | Lower Sleeve WAKE | ||
| 2 | 205484060 | Socket Head Screw M8 X 40 WAKE | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm WAKE | 2 |
| 2 | 234081100 | Flat Washer 8 mm, Nylon WAKE | 2 |
| 2 | 293830037 | Rubber Washer WAKE | 2 |
| 2 | 250200011 | Flat Washer 8 mm, Stainless WAKE | 2 |
| 2 | 232581600 | Hex. Elastic Nut M8 WAKE | 2 |
| 291002024 | Board Support WAKE | ||
| 1 | 291002026 | ELASTIC ROPE ASS'Y Includes items 69 to 70 / WAKE | 1 |
| 291002025 | ROPE CAP WAKE | ||
| 291002027 | LH Bracket Support WAKE | ||
| 291002028 | RH BRACKET SUPPORT WAKE | ||
| 2 | 291002029 | STRAP ASS'Y WAKE | 2 |
| 219902347 | Warning Decal, English, Secure Board WAKE | ||
| 2 | 293150104 | Pop Rivet 3/16" WAKE | 2 |
| 2 | 517124300 | Washer WAKE | 2 |
| 1 | 293250149 | GASKET WAKE | 1 |
| 4 | 291002050 | BOARD RACK WAKE | 4 |
| 12 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 WAKE | 12 |
