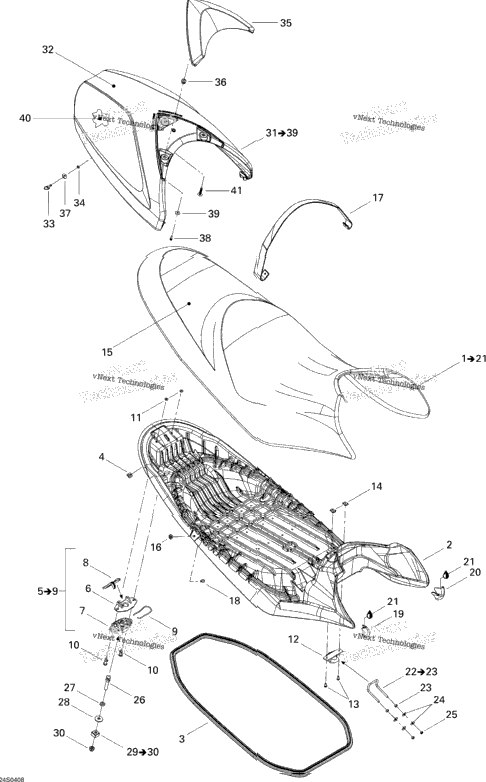

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269000741 | Seat Ass'y Includes 1 to 21 / RXP (Apple Green) | ||
| 269001099 | Seat Ass'y Includes 1 to 21 / RXP (Yellow) | ||
| XXXX | Not Available As Spare Part - Seat Base | ||
| 1 | 219704366 | Was 293200062 Seal | 1 |
| 2 | 250100032 | QUARTER-TURN NUT | 2 |
| 269700075 | Latch Ass'y Includes 5 to 9 | ||
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 269700017 | Latch Spring | ||
| 293150074 | RIVET 1/4 X 5/8 | ||
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 291002012 | SEAT HOOK | 1 |
| 2 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip | 2 |
| 2 | 293100003 | Nut Welded, M6 | 2 |
| 269000880 | Seat Cover & Foam | ||
| 269001100 | Seat Cover, Metallic Pewter | ||
| 2 | 293720067 | Grommet | 2 |
| 269000881 | Seat Strap | ||
| 269000622 | Seat Strap, Metallic Pewter | ||
| 2 | 293150078 | Pop Rivet | 2 |
| 269000862 | RH Seat Corner | ||
| 269001102 | RH Seat Corner, Metallic Pewter | ||
| 269000863 | LH Seat Corner | ||
| 1 | 269001103 | LH SEAT CORNER, METALLIC PEWTER | 1 |
| 1 | 219704463 | Était Was 413705800 Loctite 414 , 29.5 c.c | 1 |
| 1 | 291001937 | U-CLAMP ROD Includes 22 to 23 | 1 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 291000691 | LATCH STUD | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 271000598 | NUT HOUSING ASS'Y Includes 29 to 30 | ||
| 1 | 232501600 | HEX. ELASTIC NUT M10 | 1 |
| XXXX | Not Available As Spare Part - Seat Cover Ass'y Includes 31 to 39 / RXP (Apple Green) | ||
| XXXX | Not Available As Spare Part - Seat Cover Ass'y Includes 31 to 39 / RXP (Yellow) | ||
| 269000945 | Seat Cover, Black & White | ||
| 250100033 | Screw | ||
| 2 | 250200023 | NYLON WASHER | 2 |
| 269001217 | Seat Cover Pad (Black) On Apple green seat | ||
| 269001115 | Seat Cover Pad, Metallic Pewter On yellow seat | ||
| XXXX | Not Available As Spare Part - Insert | ||
| 517302265 | Washer | ||
| 3 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 3 |
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 269000827 | Seat Cover Foam | ||
| 1 | 293730014 | Black Dart | 1 |
