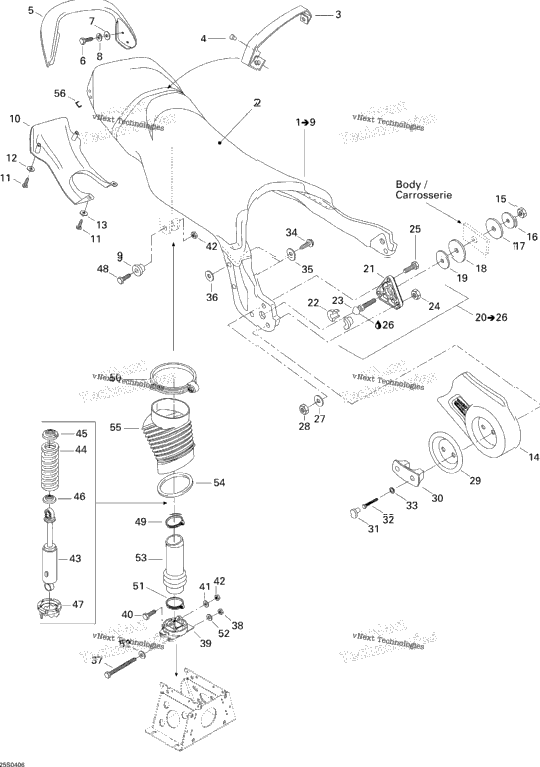

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269001139 | Seat, Silver Includes 1 to 9 | ||
| 269001140 | Cover & Foam, Silver | ||
| 269001141 | Strap, Silver | ||
| 2 | 293150067 | Rivet | 2 |
| 269000434 | Grab Handle | ||
| 4 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 4 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 4 | 234181601 | Lock Washer 8 mm, Stainless | 4 |
| 269000427 | Spacer 12 mm | ||
| 269000429 | REAR BODY COVER | ||
| 4 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 4 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 1 | 269000432 | LH FRAME COVER | 1 |
| 269000431 | RH Frame Cover | ||
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 269000137 | Washer | ||
| 2 | 293830032 | Rubber Washer | 2 |
| 2 | 293830029 | RUBBER WASHER | 2 |
| 211200030 | WASHER | ||
| 2 | 269000448 | SEAT PIVOT Includes 20 to 26 | 2 |
| XXXX | Not Available As Spare Part - Triangle Support | ||
| XXXX | Not Available As Spare Part - Half-Bushing | ||
| XXXX | Not Available As Spare Part - Seat Rotule | ||
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 207063044 | Hex. Screw M6 X 30 | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 292000438 | Shell | ||
| 269000430 | Seat Bow-Eye | ||
| 4 | 277000203 | Black, Cap | 4 |
| 4 | 207165060 | Hex. Screw M6 X 50 | 4 |
| 4 | 234061600 | Stainless, Flat Washer M6 | 4 |
| 4 | 241142560 | Hex. Flange Screw K40 X 25 | 4 |
| 4 | 234042600 | Flat Washer 4 mm, Stainless | 4 |
| 2 | 230062060 | HEX. SCREW M6 X 120 | 2 |
| 291001198400 | Lower Shock Support | ||
| 207006060 | Hex. Screw M10 X 60 | ||
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 2 | 232501600 | HEX. ELASTIC NUT M10 | 2 |
| 291001244 | Shock | ||
| 291001245 | Spring | ||
| 1 | 503140600 | Spring Stopper | 1 |
| 1 | 503165100 | GUIDE_SPRING | 1 |
| 1 | 291001088 | ADJUSTER RING | 1 |
| 1 | 207007060 | HEX. SCREW M10 X 70 | 1 |
| 1 | 293650006 | TRIDON GEAR CLAMP | 1 |
| 1 | 293650054 | Tridon Clamp | 1 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 291001247 | Shock Bellow | ||
| 293000012 | Retainer Ring | ||
| 291001016 | Outer Bellow | ||
| 293730005 | Staple |
