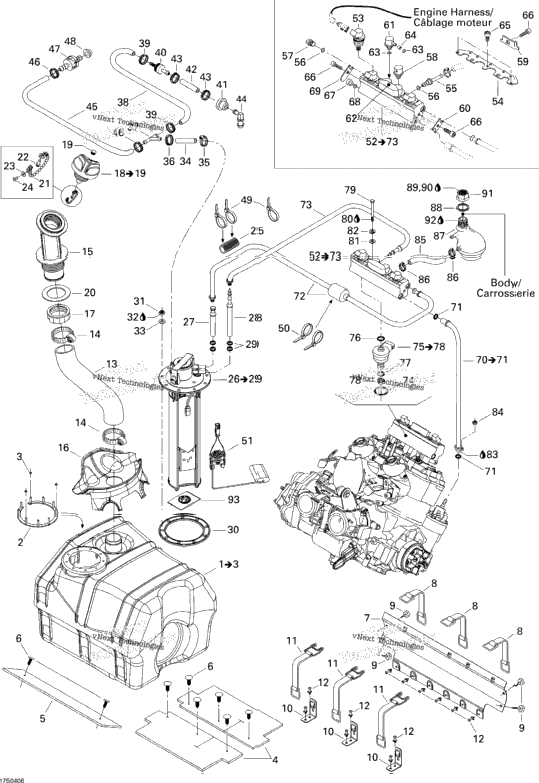

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 275500581 | Fuel Tank Includes 1 to 3 | ||
| 1 | 275500616 | C-Ring | 1 |
| 3 | 389804300 | Push Nut | 3 |
| 293830087 | Rubber Pad | ||
| 293830102 | Rubber Pad | ||
| 8 | 293730006 | Black, Dart | 8 |
| 292000939 | Heat Shield | ||
| 3 | 293850036 | Fuel Tank Strap | 3 |
| 293830064 | Rubber Stopper | ||
| 293850076 | STRAP CLIP 90 | ||
| 3 | 293850038 | Fuel Tank Strap | 3 |
| 12 | 293150037 | Avdel Rivet 3/16" | 12 |
| 275500584 | Filler Hose | ||
| 2 | 293650023 | Tridon Clamp | 2 |
| 1 | 275500229 | FUEL FILLER NECK | 1 |
| 275500589 | Fuel Shield | ||
| 1 | 211100012 | Filler Neck Nut, Fuel | 1 |
| 1 | 275500430 | Fuel Tank Cap, Black Includes 18 to 19 | 1 |
| 1 | 293000034 | Black, Snap Cap | 1 |
| 293250017 | Gasket | ||
| 1 | 275500507 | Fuel Cap Chain | 1 |
| 1 | 241140060 | Screw K40 X 10 | 1 |
| 1 | 234032600 | Flat Washer M3, Stainless | 1 |
| 1 | 390407900 | Pop Rivet 1/8" | 1 |
| 219704413 | Was 415084700 Protective Shield | ||
| 1 | 275500622 | FUEL MODULE ASS'Y Includes 26 to 29 | 1 |
| 275500631 | Fuel Feeding Hose Ass'y | ||
| 275500632 | Fuel Return Hose Ass'y | ||
| 4 | 293650011 | Oetiker Clamp | 4 |
| 1 | 293250088 | Gasket | 1 |
| 9 | 250100071 | Hex. Flange Nut M5 | 9 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 291001956 | Rubber Washer | ||
| 1 | 219704357 | Was 275500549 Hose 1/4" | 1 |
| 1 | 293650170 | Tridon Gear Clamp | 1 |
| 1 | 293650050 | Caillau Clic Clamp | 1 |
| 1 | 293710059 | Y-Fitting | 1 |
| 2 | 293650050 | Caillau Clic Clamp | 2 |
| 1 | 275500398 | Check Valve | 1 |
| 1 | 570135100 | Grommet | 1 |
| 1 | 414580600 | Elbow Male Connector | 1 |
| 1 | 275500505 | Check Valve | 1 |
| 1 | 293720029 | Grommet | 1 |
| 3 | 293750008 | Tie Wrap 368 mm | 3 |
| 2 | 293750008 | Tie Wrap 368 mm | 2 |
| 1 | 270600051 | Sensor Lever | 1 |
| 275500628 | Fuel Distributor Ass'y Includes 52 to 73 | ||
| 2 | 275500460 | Fuel Injector | 2 |
| 1 | 275500543 | RETAINER PLATE | 1 |
| 1 | 275500538 | AIR ADAPTER | 1 |
| 293300069 | O-RING | ||
| 1 | 275500595 | FUEL PLUG | 1 |
| 275500463 | Air Regulator | ||
| 1 | 275500456 | RETAINER PLATE | 1 |
| 1 | 275500596 | RETAINER PLATE | 1 |
| 1 | 275500464 | FUEL REGULATOR | 1 |
| 275500449 | Cover | ||
| 293300072 | O-Ring | ||
| 1 | 275500465 | SPACER | 1 |
| 205051260 | SOCKET HEAD SCREW M5 X 12 | ||
| 3 | 205061260 | Socket Head Screw M6 X 12 | 3 |
| 275500597 | AIR PLUG | ||
| 275500598 | O-Ring | ||
| 275500455 | RETAINER PLATE | ||
| 270600022 | Pressure Hose Includes 70 to 71 | ||
| 293300070 | O-Ring | ||
| 1 | 275500629 | FUEL FEEDING HOSE ASS'Y | 1 |
| 275500630 | Fuel Return Hose Ass'y | ||
| 293300083 | O-Ring | ||
| 2 | 275500633 | Air Injector Includes 75 to 78 | 2 |
| 293300084 | O-Ring | ||
| 293300076 | O-Ring | ||
| 1 | 270600030 | INJECTOR RING | 1 |
| 207087060 | HEX. SCREW M8 X 70 | ||
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 2 | 234181601 | Lock Washer 8 mm, Stainless | 2 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 276000084 | HOSE 8 MM | 1 |
| 2 | 293650170 | Tridon Gear Clamp | 2 |
| 270000569 | Noise Reducer | ||
| 1 | 293830027 | SEAL WASHER | 1 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 1 | 211100020 | SPECIAL NUT M27 | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 219700368 | Fuel Filter, Bosch | 1 |
