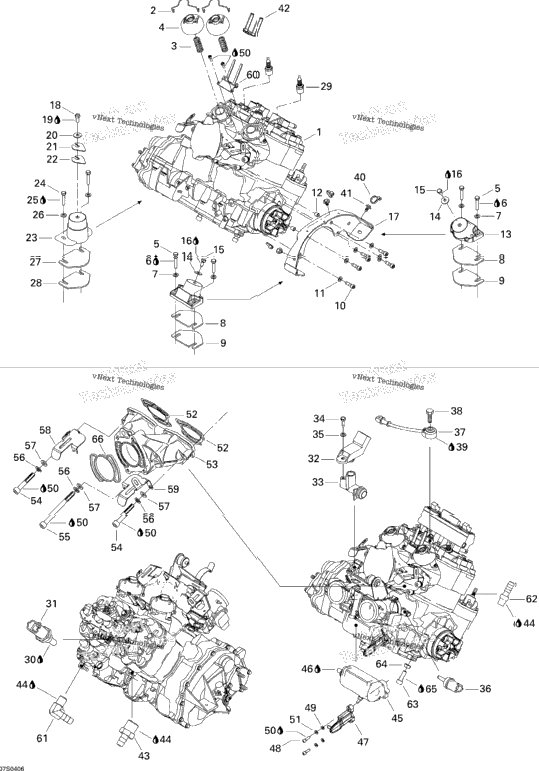

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 270000600 | Rotax Engine 947-Di | ||
| 2 | 420838083 | SPRING CLIP | 2 |
| 2 | 420939130 | COMPRESSION SPRING | 2 |
| 420911557 | Valve Cover | ||
| 4 | 207184060 | Hex. Screw M8 X 40 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 270000122 | Shim 0.3 mm | ||
| 270000123 | SHIM 1.3 MM | ||
| 5 | 205582560 | Socket Head Screw M8 X 25, Scotch Grip | 5 |
| 5 | 234081600 | Stainless, Flat Washer 8 mm | 5 |
| 2 | 270000453 | BUSHING | 2 |
| 270000421 | Rubber Mount, Black | ||
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 207181660 | Hex. Screw M8 X 16 | ||
| 270000515 | Engine Support, Black | ||
| 207182060 | HEX. SCREW M8 X 20 | ||
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 1 | 270000025 | SHIM 1.3 MM | 1 |
| 3 | 270000024 | SHIM 0.4 MM | 3 |
| 270000430 | Rubber Mount, Black | ||
| 2 | 207184060 | Hex. Screw M8 X 40 | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 2 | 278001650 | Spark Plug NGK Zfr4f-11 | 2 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 1 | 270600040 | Pressure Sensor | 1 |
| 1 | 270600019 | VALVE ADAPTOR | 1 |
| 1 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 1 |
| 1 | 211200035 | Flat Washer | 1 |
| 1 | 270600000 | AIR TEMPERATURE SENSOR | 1 |
| 1 | 270000484 | Noise Sensor | 1 |
| 1 | 207183060 | Hex. Screw M8 X 30 | 1 |
| 3 | 414115200 | Tie-Rap 180 mm | 3 |
| 3 | 293730018 | Mount Dart | 3 |
| 1 | 278001512 | INSULATOR | 1 |
| 1 | 293710066 | MALE CONNECTOR | 1 |
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 1 | 278001937 | Starter Ass'y, Black | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 273000227 | AIR SILENCER SUPPORT | 1 |
| 2 | 205063560 | Socket Head Screw M6 X 35 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 420931653 | EXHAUST MANIFOLD GASKET | 2 |
| 1 | 420979607 | Exhaust Manifold | 1 |
| 4 | 205006060 | SOCKET HEAD SCREW M10 X 60 | 4 |
| 4 | 420941483 | SOCKET HEAD SCREW M10 X 110 | 4 |
| 8 | 234101601 | Helicoidal Lock Washer M10 | 8 |
| 4 | 234000600 | Flat Washer 10 mm, Stainless | 4 |
| 1 | 273000170 | DUCT SUPPORT, MAG | 1 |
| 273000169 | Duct Support, PTO | ||
| 1 | 278001662 | GROUND PLATE | 1 |
| 293700016 | Elbow Fitting | ||
| 293710082 | STRAIGHT FITTING | ||
| 205003060 | Socket Screw M10 X 30 | ||
| 2 | 232001600 | HEX. NUT M10 | 2 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 420931990 | EXHAUST GASKET | 1 |
