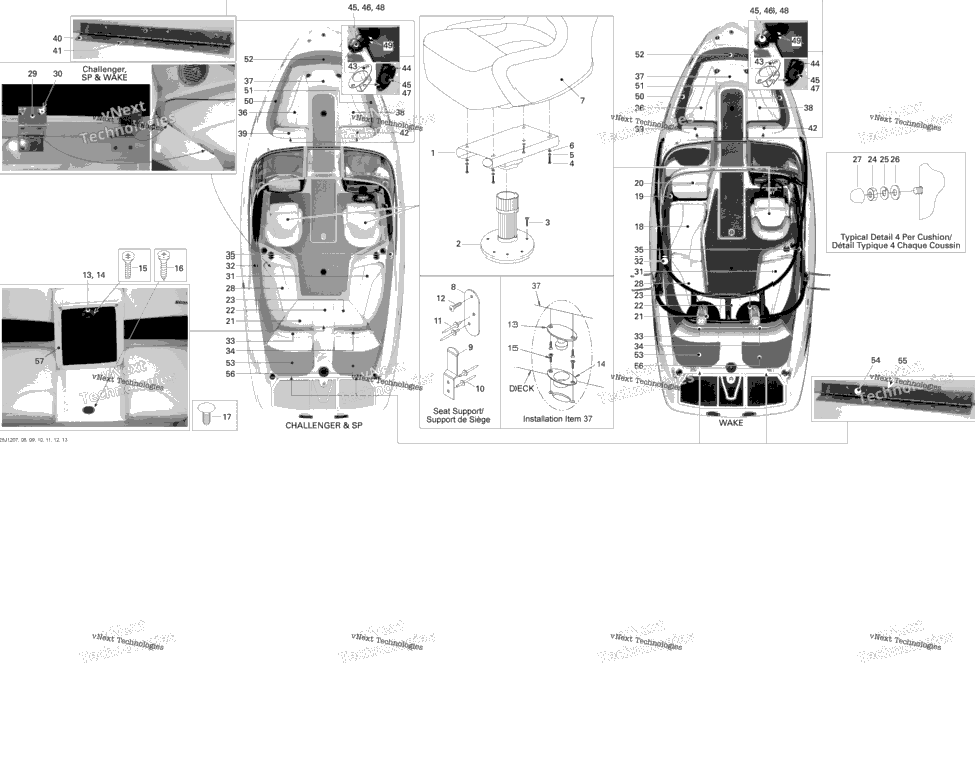

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204613742 | SLIDE AND SWIVEL SEAT BASE | ||
| 269001903 | SEAT PEDESTAL | ||
| 204100201 | PHILLIPS SCREW 1/4-20 X 1-1/4 | ||
| 211000054 | HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP | ||
| 8 | 211200025 | Lock Washer 1/4” | 8 |
| 8 | 234082600 | Flat Washer 8 mm, Stainless | 8 |
| 269002407 | Busket Seat | ||
| 269001696 | SEAT SUPPORT | ||
| 269001695 | SEAT SUPPORT | ||
| 60 | 293150043 | Pop Rivet 3/16" | 60 |
| 293150029 | RIVET_POP 5/32 | ||
| 204100030 | Phillips Screw #8 X 1/2” | ||
| 204615050 | BALL FASTENER/NYLON SE | ||
| 204615050 | BALL FASTENER/NYLON S | ||
| 204615051 | SOCKET FASTENER/NYLON SE | ||
| 204615051 | SOCKET FASTENER/NYLON S | ||
| 204100054 | SCREW 8 X 3/4? | ||
| 208442060 | PHILLIPS SCREW M4 X 20 | ||
| XXX | Not Available As Spare Parts | ||
| 269002558 | REAR CUSHION ASS'Y, PORT SIDE | ||
| 269002559 | REAR CUSHION ASS'Y, CENTER | ||
| 269002560 | REAR CUSHION ASS'Y, STARBOARD SIDE | ||
| 211100026 | HEX. NUT 1/4 | ||
| 8 | 234180602 | Lock Spring Washer 8 mm, Stainless | 8 |
| 204130008 | Plastic Cap, White | ||
| 269002561 | WRAP ARROUND CUSHION ASS'Y, PORT SIDE | ||
| 269001590 | HINGE, 90 | ||
| 204100095 | SLOTTED BOLT 1/4?-20 X 1? | ||
| 269002562 | Wrap Arround Cushion Ass'y, Starboard | ||
| 269002044 | REAR LATERAL BACKREST ASS'Y, ALAB PORT | ||
| 269002253 | Rear Backrest Ass'y, Port | ||
| 269002254 | Rear Backrest Ass'y, Starboard | ||
| 269002046 | REAR LATERAL BACKREST ASS'Y, ALAB, STARB | ||
| 269002563 | FRONT CUSHION ASS'Y, BOW PORT SIDE | ||
| 269002565 | FRONT CENTER CUSHION ASS'Y, BOW SE | ||
| 269002564 | FRONT CUSHION ASS'Y, STARBOARD | ||
| 269002413 | BACKREST ACCESS DOOR, PORT | ||
| 204613980 | Hinge | ||
| 28 | 293150011 | Pop Rivet 3/16" | 28 |
| 269002415 | BACKREST ACCESS DOOR, STARBORD | ||
| 204614762 | HOLDER | ||
| 269002153 | HOLDER DOOR ASS'Y | ||
| 2 | 204100220 | Pan Head Screw 10-32 X 1/2" | 2 |
| 2 | 212100005 | Hex. Nut | 2 |
| 204100236 | SCREW-HEX.HD.MACHINE #10 X 1 | ||
| 211200033 | FLAT WASHER | ||
| 269002062 | FRONT LATERAL CUSHION, PORT SIDE | ||
| 269002064 | FRONT LATERAL BACKREST ASS'Y, ALAB., STA | ||
| 269002442 | FRONT CENTER BACKREST | ||
| 269002566 | SUNDECK CUSHION, PORT SE | ||
| 269002582 | SUNDECK CUSHION, PORT S | ||
| 269002567 | SUNDECK CUSHION, STARBORD SE | ||
| 269002583 | SUNDECK CUSHION, STARBORD S | ||
| 269002296 | Rear Filler Backrest, Center SE |
