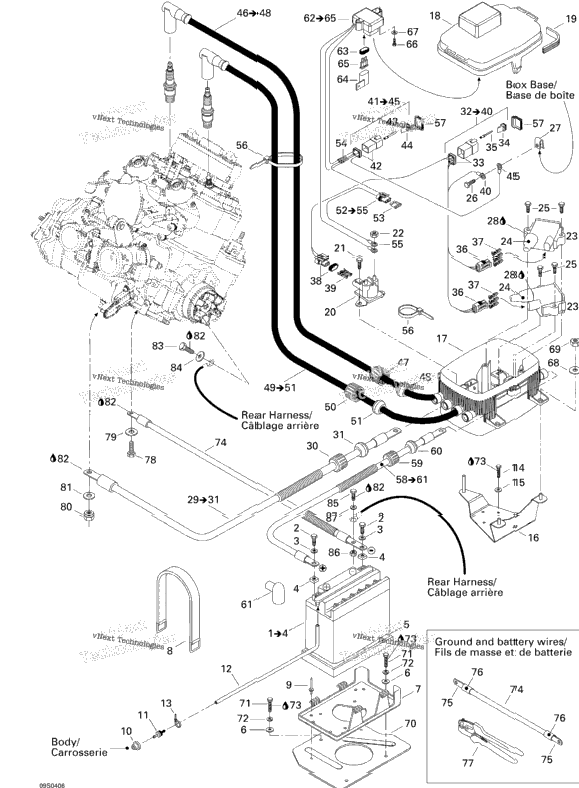

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 278001756 | Battery 19A Includes 1 to 4 | 1 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 278001746 | Lower Battery Pad | ||
| 3 | 234052600 | Flat Washer 5 mm, Stainless | 3 |
| 1 | 278001972 | BATTERY SUPPORT | 1 |
| 2 | 293850021 | Rubber Strap | 2 |
| 2 | 293150037 | Avdel Rivet 3/16" | 2 |
| 1 | 293720029 | Grommet | 1 |
| 275500499 | CHECK VALVE | ||
| 275500446 | HOSE 6 MM | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 243042060 | Hex. Plastite Screw M4, 8 X 20 | ||
| 4 | 211200043 | WASHER-LOCK IMPERIAL | 4 |
| 278001897 | Electric Box Support | ||
| 278001761 | Electric Box Base | ||
| 278001785 | Box Cover | ||
| 278001173 | GASKET | ||
| 1 | 278001802 | Relay Starter | 1 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 278001451 | IGNITION COIL | ||
| 2 | 278001470 | PROTECTOR CAP | 2 |
| 4 | 209463840 | SCREW-TAPP.HEX.ISO.1479F | 4 |
| 1 | 207361660 | Hex. Screw M6 X 16, Scotch Grip | 1 |
| 250100029 | U Type Nut M6 | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278001893 | Starter Positive Cable, Red Includes 29 to 31 | ||
| 278000100 | Electric Wire Cap | ||
| 278000098 | GROMMET | ||
| 278001458 | Box Harness Includes 32 to 40 | ||
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 6 | 278000631 | Male Terminal | 6 |
| 2 | 278001467 | MALE TERMINAL HOUSING, 3 CIRCUITS | 2 |
| 6 | 278001468 | FEMALE TERMINAL | 6 |
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 2 | 278001114 | Female Terminal | 2 |
| 1 | 278001392 | Open Barrel Terminal | 1 |
| 278001885 | Electric Box Harness Includes 41 to 45 | ||
| 1 | 278001477 | FEMALE HOUSING, 4 CIRCUITS | 1 |
| 1 | 515175261 | MALE TERMINAL | 1 |
| 1 | 278001478 | MALE WEDGE, 4 CIRCUITS | 1 |
| XXXX | Not Available As Spare Part - Ring Terminal | ||
| 1 | 278001454 | COIL CABLE, 735 MM Includes 46 to 48 | 1 |
| 278000682 | Grommet | ||
| 278001521 | Coil Cable, 560 mm Includes 49 to 51 | ||
| 278001884 | Fuse Harness, 3 Amperes Includes 52 to 55 | ||
| 278001196 | FUSE, 3 AMPERES | ||
| 278000300 | Ring Terminal | ||
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 293200055` | Gasket | ||
| 278001886 | Battery Positive Cable, Red Includes 58 to 61 | ||
| 1 | 278000020 | PROTECTION CAP | 1 |
| 278001784 | CUT-OFF RELAY Includes 62 to 65 | ||
| 1 | 278000805 | Cushion | 1 |
| XXXX | Not Available As Spare Part - Fuse Holder Cover | ||
| 1 | 410917200 | Fuse, 30 Amperes | 1 |
| 2 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 2 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 292001008 | Support Plate | ||
| 3 | 211000023 | Hex. Screw 10-14 X 7/8” | 3 |
| 3 | 234151601 | Helical Lock Washer M5 | 3 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 278001877 | Ground Cable, Black | ||
| XXXX | Not Available As Spare Part - Terminal 30° (2 Holes) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45° (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90° (Small Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45° (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90° (Big Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal | ||
| XXXX | Not Available As Spare Part - Heat Shrink | ||
| XXXX | Not Available As Spare Part - Crimp Plier | ||
| 1 | 207302060 | Hex. Screw M10 X 20, Scotch Grip | 1 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 1 |
| 1 | 207161260 | Hex. Cap Screw M6 X 12 | 1 |
