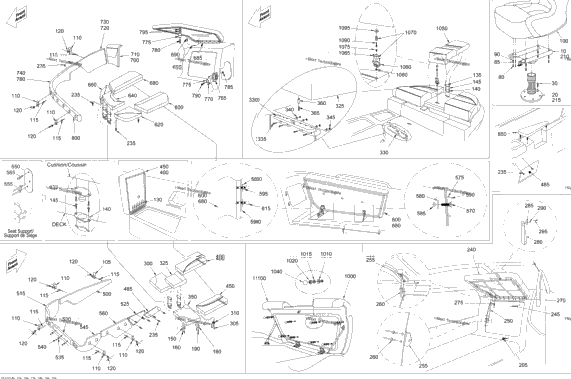

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204613742 | SLIDE AND SWIVEL SEAT BASE WAKE | ||
| 269001903 | SEAT PEDESTAL WAKE | ||
| 204100201 | PHILLIPS SCREW 1/4-20 X 1-1/4 WAKE | ||
| 211000054 | HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP WAKE | ||
| 4 | 211200025 | Lock Washer 1/4” WAKE | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless WAKE | 4 |
| 269002327 | BUCKET SEAT ASS'Y WAKE | ||
| 204611531 | RETAINING CLIP | ||
| 204613998 | SEAT SUPPORT WAKE | ||
| 78 | 293150043 | Pop Rivet 3/16" WAKE | 78 |
| 78 | 234061600 | Stainless Flat Washer M6 WAKE | 78 |
| 7 | 293150011 | Pop Rivet 3/16" WAKE | 7 |
| 204615050 | BALL FASTENER/NYLON | ||
| 204615051 | SOCKET FASTENER/NYLON | ||
| 204100054 | SCREW 8 X 3/4? | ||
| 204611940 | SEAT LATCH WAKE | ||
| 204100039 | SCREW 1/4?-20 X 2? WAKE | ||
| 204611805 | LATCH WAKE | ||
| 204100219 | SCREW-PAN HD.#10-32 X 1-1/4 SS WAKE | ||
| 202000159 | SCREW-STUD TAPP. 3/8 SS WAKE | ||
| XXX | Not Available As Spare Parts | ||
| 24 | 204130264 | Dart 1", White | 24 |
| 269002425 | Storage Backrest Ass'y, Spotter WAKE | ||
| 204072218 | GAS SHOCK WAKE | ||
| 2 | 204073074 | Shock Bracket WAKE | 2 |
| 4 | 293150011 | Pop Rivet 3/16" WAKE | 4 |
| 204613980 | Hinge WAKE | ||
| XXXX | Not Available As Spare Part - Strap WAKE | ||
| 204000083 | SNAP BASE WAKE | ||
| 1 | 234032600 | Flat Washer M3, Stainless WAKE | 1 |
| 1 | 293150016 | Rivet 1/8" WAKE | 1 |
| 269002598 | REAR CUSHION ASS'Y, PORT SIDE WAKE | ||
| 2 | 204100058 | Phillips Tapping Screw | 2 |
| 2 | 204615049 | Retention Cord With Clip | 2 |
| 269002600 | REAR CUSHION ASS'Y, CENTER WAKE | ||
| 204614709 | SEAT SUPPORT ASS'Y | ||
| 208564060 | PHILLIPS SCREW M6 X 40 | ||
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 269002599 | REAR CUSHION ASS'Y, STARBOARD SIDE WAKE | ||
| 204130166 | LOCATOR STUD | ||
| 205053560 | SOCKET SCREW M5 X 35 | ||
| 269002602 | WRAP ARROUND CUSHION ASS'Y, PORT SIDE WAKE | ||
| 269002603 | WRAP ARROUND CUSHION ASS'Y, PORT SIDE WAKE | ||
| 269002156 | Lower Knee Pad | ||
| 269001973 | REAR SIDE BACKREST, PORT SIDE WAKE | ||
| 269001974 | REAR SIDE BACKREST, PORT SIDE WAKE | ||
| 269002307 | SIDE FLAT BACKREST, STARBOARD WAKE | ||
| 269001976 | REAR CENTER BACKREST WAKE | ||
| 3 | 234082600 | Flat Washer 8 mm, Stainless | 3 |
| 211100026 | HEX. NUT 1/4 | ||
| 269001977 | REAR SIDE BACKREST, STARBOARD SIDE WAKE | ||
| 269001696 | SEAT SUPPORT | ||
| 293150029 | RIVET_POP 5/32 | ||
| 269001978 | REAR SIDE BACKREST, STARBOARD SIDE WAKE | ||
| 204100030 | Phillips Screw #8 X 1/2” | ||
| 205364060 | SOCKET HEAD SCREW M6 X 40 | ||
| 204614766 | HINGE SHIM | ||
| 20 | 234062600 | Flat Washer M6, Stainless | 20 |
| 12 | 232561600 | Hex. Elastic Stop Nut M6 | 12 |
| 269001995 | HINGE BRACKET SET | ||
| 269002604 | CUSHION ASS'Y, BOW PORT SIDE WAKE | ||
| 204130008 | Plastic Cap, White | ||
| 269002606 | CUSHION ASS'Y, BOW-FRONT, PORT SIDE WAKE | ||
| 269002608 | CUSHION ASS'Y, BOW-CENTER WAKE | ||
| 269002607 | CUSHION ASS'Y, BOW STARBOARD SIDE WAKE | ||
| 269002605 | CUSHION ASS'Y, BOW STARBOARD SIDE WAKE | ||
| 204610750 | BACKREST HINGE | ||
| 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | ||
| 12 | 293150011 | Pop Rivet 3/16" | 12 |
| 269002318 | BACKREST ASS'Y, BOW PORT, ACCESS DOOR WAKE | ||
| 269002320 | Backrest Ass'y, Bow Starboard, Acc Door WAKE | ||
| 269002322 | BACKREST ASS'Y, BOW PORT SIDE WAKE | ||
| 269002324 | BACKREST ASS'Y, BOW STARBOARD SIDE WAKE | ||
| 269001986 | BOW FRONT BACKREST, PORT SIDE WAKE | ||
| 269001987 | BOW FRONT BACKREST, STARBOARD SIDE WAKE | ||
| 204614762 | HOLDER | ||
| 269002153 | HOLDER DOOR ASS'Y | ||
| 2 | 204100220 | Pan Head Screw 10-32 X 1/2" | 2 |
| 2 | 212100005 | Hex. Nut | 2 |
| 204100236 | SCREW-HEX.HD.MACHINE #10 X 1 | ||
| 211200033 | FLAT WASHER | ||
| 269002330 | BACKREST ASS'Y, BOW CENTER WAKE | ||
| 269002161 | ELBOWREST ASSY/STBD | ||
| 269002609 | SUNDECK CUSHION ASS'Y, PORT SIDE WAKE | ||
| 8 | 234082600 | Flat Washer 8 mm, Stainless | 8 |
| 8 | 211200025 | Lock Washer 1/4” | 8 |
| 269002611 | SUNDECK CUSHION ASS'Y, CENTER WAKE | ||
| 1 | 204100220 | Pan Head Screw 10-32 X 1/2" | 1 |
| 1 | 212100005 | Hex. Nut | 1 |
| 269002610 | SUNDECK CUSHION ASS'Y, STARBORD SIDE WAKE |
