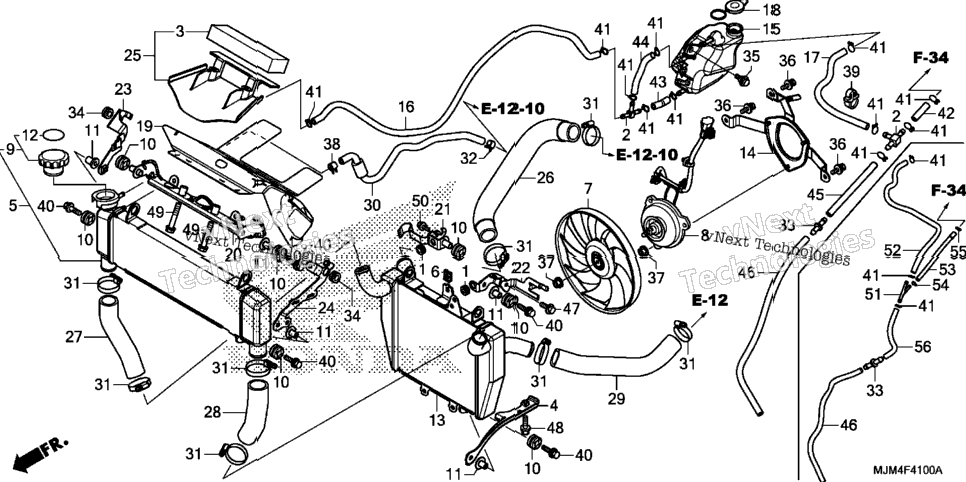

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 11344-MB0-000 | GROMMET A, RR. COVER (8X16X6.6) | 2 |
| 2 | 16960-ME9-000 | PIPE, THREE WAY JOINT | 2 |
| 1 | 17240-MJM-D10 | MAT, AIR CLEANER GUIDE | 1 |
| 1 | 17411-MJM-A00 | STAY, RADIATOR (LOWER) | 1 |
| 1 | 19010-MJM-305 | RADIATOR (UPPER) (COO) | 1 |
| 1 | 19014-KEA-003 | NUT, SETTING (6MM) | 1 |
| 1 | 19020-MFA-D01 | FAN, COOLING | 1 |
| 1 | 19030-MJM-D11 | MOTOR ASSY., FAN | 1 |
| 1 | 19045-MY3-621 | CAP, RADIATOR | 1 |
| 7 | 19051-KA3-830 | RUBBER, RADIATOR MOUNTING | 7 |
| 5 | 19052-MGH-640 | COLLAR, RADIATOR MOUNTING | 5 |
| 1 | 19055-MV9-881 | SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE) | 1 |
| 1 | 19060-MJM-315 | RADIATOR (LOWER) (COO) | 1 |
| 1 | 19070-MJM-D01 | SHROUD | 1 |
| 1 | 19101-MJM-305 | TANK, RADIATOR RESERVE (COO) | 1 |
| 1 | 19102-MJM-D00 | TUBE, FILLER-RESERVE TANK | 1 |
| 1 | 19104-MJM-D00 | TUBE, RESERVE TANK DRAIN | 1 |
| 1 | 19109-KPC-640 | CAP, RESERVE TANK | 1 |
| 1 | 19121-MJM-D00 | RUBBER, RADIATOR | 1 |
| 1 | 19130-MJM-D00 | STAY, RADIATOR (UPPER) | 1 |
| 1 | 19131-MJM-D00 | STAY, R. RADIATOR (LOWER/UPPER) | 1 |
| 1 | 19132-MJM-D00 | STAY, L. RADIATOR (LOWER/UPPER) | 1 |
| 1 | 19135-MJM-D10 | STAY, R. RADIATOR | 1 |
| 1 | 19136-MJM-D00 | STAY, L. RADIATOR | 1 |
| 1 | 19140-MJM-D10 | GUIDE, AIR CLEANER | 1 |
| 1 | 19501-MJM-D00 | HOSE, RADIATOR (UPPER) | 1 |
| 1 | 19503-MJM-D00 | HOSE, R. RADIATOR JOINT | 1 |
| 1 | 19504-MJM-D00 | HOSE, L. RADIATOR JOINT | 1 |
| 1 | 19506-MJM-D00 | HOSE, RADIATOR (LOWER) | 1 |
| 1 | 19508-MJM-D10 | TUBE, RADIATOR BREATHER | 1 |
| 8 | 19516-GAG-003 | CLAMP, HOSE (30-37MM) | 8 |
| 1 | 43514-KS6-701 | CLAMP, MASTER CYLINDER OIL HOSE | 1 |
| 1 | 55102-166-000 | JOINT, OIL TUBE | 1 |
| 2 | 80101-310-000 | RUBBER, RR. FENDER CUSHION | 2 |
| 1 | 90109-434-000 | BOLT, SPECIAL (6MM) | 1 |
| 3 | 90120-GHB-601 | BOLT-WASHER (6X12) | 3 |
| 4 | 90315-MK3-003 | NUT, SERRATE (5MM) | 4 |
| 1 | 90651-KV0-700 | CLIP, TUBE | 1 |
| 1 | 90682-959-661 | CLIP B, CABLE (9MM BLACK) | 1 |
| 5 | 93404-06025-08 | BOLT-WASHER (6X25) | 5 |
| 11 | 95002-02100 | CLIP, TUBE (B10) | 11 |
| 1 | 95005-55003-20M | BULK HOSE, VACUUM (5.5X3000) (5.3X30) | 1 |
| 1 | 95005-55003-20M | BULK HOSE, VACUUM (5.5X3000) (5.3X40) | 1 |
| 1 | 95005-55003-20M | BULK HOSE, VACUUM (5.5X3000) (5.3X85) | 1 |
| 1 | 95005-55003-20M | BULK HOSE, VACUUM (5.5X3000) (5.5X270) | 1 |
| 1 | 95005-55003-20M | BULK HOSE, VACUUM (5.5X3000) (5.3X350) | 1 |
| 1 | 95701-06012-07 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95701-06020-08 | BOLT, FLANGE (6X20) | 1 |
| 2 | 95701-08045-00 | BOLT, FLANGE (8X45) | 2 |
| 1 | 96001-06012-07 | BOLT, FLANGE (6X12) | 1 |
