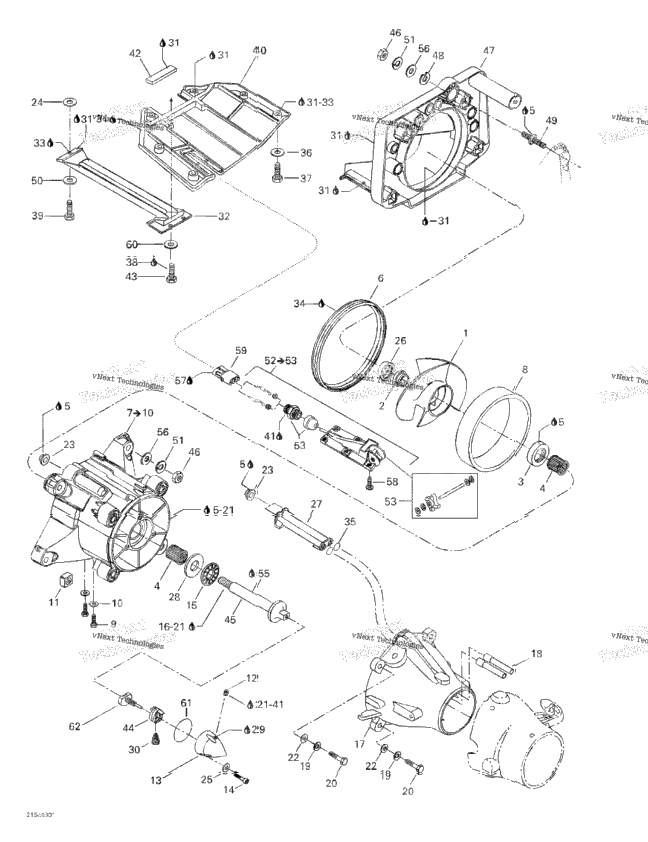

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 271001297 | Stainless Steel Impeller Ass'y | 1 |
| 1 | 271000516 | Impeller Boot | 1 |
| 1 | 293200065 | Oil Seal | 1 |
| 2 | 293350017 | Needle Bearing | 2 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 293200087 | Neoprene Seal | 1 |
| 271001381 | HOUSING ASSY Includes 7 - 10. | ||
| 1 | 271000653 | Wear Ring | 1 |
| 4 | 250000040 | Hex. Plastite Screw #10 X 3/8" | 4 |
| 4 | 234051600 | Flat Washer M5, Stainless | 4 |
| 4 | 211100033 | Square Nut M8 | 4 |
| 1 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt | 1 |
| 271001250 | IMPELLER COVER | ||
| 3 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 3 |
| 1 | 293350022 | Thrust-Bearing | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 271001284 | Venturi, Black | ||
| 2 | 271001133 | Siphon Tube | 2 |
| 4 | 234181601 | Lock Washer 8 mm, Stainless | 4 |
| 4 | 207285060 | Hex. Screw M8 X 50, Scotch Grip | 4 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 3 | 293250084 | Watertight Seal | 3 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 1 | 271000517 | Impeller Ring | 1 |
| 1 | 271000785 | Water Outlet | 1 |
| 1 | 293350020 | THRUST WASHER | 1 |
| 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | ||
| 1 | 271001108 | SPRING | 1 |
| 1 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml | 1 |
| 271000763 | Pump Grate | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 413708300 | Glue Tube, Loctite 454, 20 G | 1 |
| 2 | 293300013 | O-Ring | 2 |
| 6 | 234081600 | Stainless, Flat Washer 8 mm | 6 |
| 6 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 6 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 1 |
| 271001306 | Riding Plate GTI LE. | ||
| 271001265 | Riding Plate, Black GTI. | ||
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 2 | 207161660 | Hex. Screw M6 X 16 | 2 |
| 1 | 271001107 | SLIDER | 1 |
| 1 | 271000965 | Impeller Shaft | 1 |
| 8 | 232001600 | HEX. NUT M10 | 8 |
| 271001151 | Pump Support GTI LE. | ||
| 1 | 271001225 | PUMP SUPPORT GTI. | 1 |
| 1 | 272000053 | Shim, 0.3 mm | 1 |
| 4 | 250300010 | Square Stud | 4 |
| 1 | 234081600 | Stainless, Flat Washer 8 mm | 1 |
| 8 | 234101601 | Helicoidal Lock Washer M10 | 8 |
| 278001668 | Speed Sensor Includes 52 - 53. GTI LE. | ||
| 1 | 293710031 | ELECTRIC CONNECTION GTI LE. | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 8 | 234002600 | Flat Washer 10 mm, Stainless | 8 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 6 | 250000020 | Phillips Screw M5 X 10 GTI LE. | 6 |
| 1 | 278000217 | Female Housing, 2 Circuits GTI LE. | 1 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 293300011 | O-Ring | 1 |
| 1 | 271001124 | PUSHER ASS?Y | 1 |
