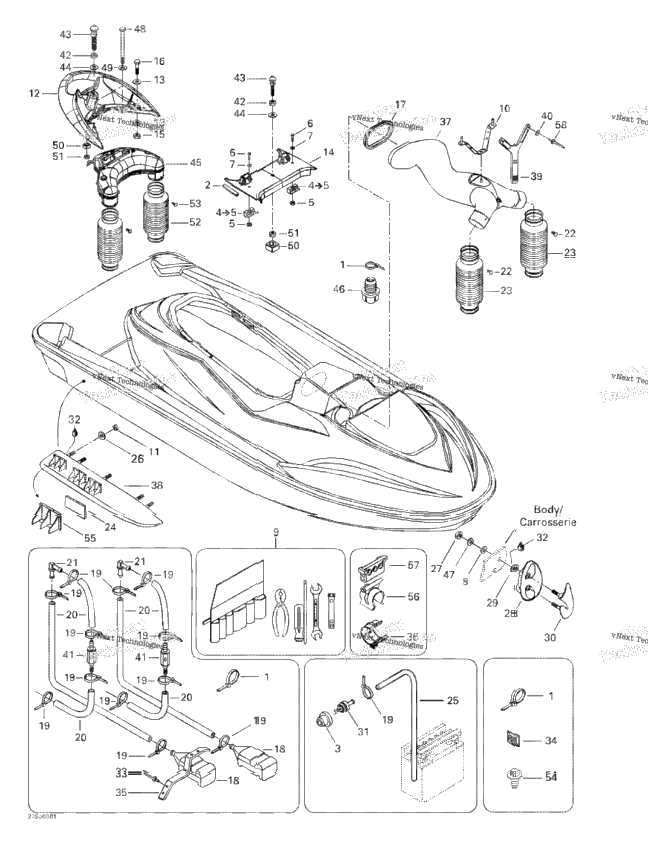

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 293250008 | GASKET PAC = 1.0m | ||
| 1 | 293720029 | Grommet | 1 |
| 2 | 291001525 | Bridge Link Includes 4 - 5. | 2 |
| 2 | 211100033 | Square Nut M8 | 2 |
| 2 | 207384060 | HEX. SCREW M8 X 40, SCOTCH GRIP | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 293830037 | Rubber Washer | 2 |
| 295500783 | Owners Tool Kit | ||
| 291001614 | Collector Support | ||
| 10 | 232561600 | Hex. Elastic Stop Nut M6 | 10 |
| 1 | 269000812 | GRAB HANDLE GTI. | 1 |
| 269000834 | Grab Handle, Violet GTI LE. | ||
| 6 | 234081600 | Stainless, Flat Washer 8 mm | 6 |
| 291001854 | Upper Bridge | ||
| 3 | 232581600 | Hex. Elastic Nut M8 | 3 |
| 3 | 207084560 | Hex. Screw M8 X 45 | 3 |
| 291001424 | Collector Joint | ||
| 292000688 | Bailer Screen | ||
| 13 | 293750001 | Tie Wrap 94 mm | 13 |
| 1 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 1 |
| 2 | 293710057 | ELBOW FITTING 90 | 2 |
| 2 | 293730024 | Dart, Fastex | 2 |
| 291001777 | Vent Hose | ||
| 6 | 292000414 | CUSHION | 6 |
| 275500446 | HOSE 6 MM | ||
| 9 | 234062600 | Flat Washer M6, Stainless | 9 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 292000511 | Shell, White GTI. | ||
| 292000756 | Shell, Violet GTI LE. | ||
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 292000710 | Bow Eye Ass'y, White GTI. | ||
| 292000752 | Bow Eye Ass’y, Violet GTI LE. | ||
| 275500499 | CHECK VALVE | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 1 | 293750025 | Tie-Rap Mount | 1 |
| 2 | 292000398 | LH SPRING CLIP | 2 |
| 275500528 | Hose Retainer | ||
| 6 | 275500527 | Cable Retainer | 6 |
| 291001629 | Front Collector | ||
| 1 | 292000594 | RH SPONSON | 1 |
| 1 | 292000595 | LH SPONSON | 1 |
| 293850065 | Rubber Strap | ||
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 276000093 | Check Valve | ||
| 2 | 232100600 | Hex. Jam Nut M10 | 2 |
| 2 | 291000691 | LATCH STUD | 2 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 291001873 | Vent Tube Baffle Ass’y | ||
| 2 | 293720042 | GROMMET | 2 |
| 2 | 250200011 | Flat Washer 8 mm, Stainless | 2 |
| 230262060 | HEX. SCREW M6 X 120, SCOTCH GRIP | ||
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 271000598 | NUT HOUSING ASS'Y Includes 50 - 51. | ||
| 2 | 232501600 | HEX. ELASTIC NUT M10 | 2 |
| 1 | 293730018 | Mount Dart | 1 |
| 293450149 | Insert | ||
| 1 | 278000559 | COLLAR SUPPORT | 1 |
| 1 | 278000245 | 3 WIRE SUPPORT | 1 |
| 2 | 293150043 | Pop Rivet 3/16" | 2 |
