Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 2707-487 | Panel, Front - Assembly - Black (inc. 2-6 and10) | 1 |
| 1 | 2707-304 | Bracket, Shock Mount - Upper Right - Black | 1 |
| 1 | 2707-305 | Bracket, Shock Mount - Upper Left - Black | 1 |
| 10 | 0423-538 | Screw, Self-Tapping | 10 |
| 9 | 0423-577 | Clip, U-Nut | 9 |
| 1 | 2612-707 | Tab, Spring | 1 |
| 1 | 1623-683 | Screw, Self-Tapping | 1 |
| 2 | 1607-561 | Gusset, A-Arm Mounting Bracket | 2 |
| 8 | 8413-617 | Screw, Cap | 8 |
| 4 | 1607-233 | Bracket, Mounting - Upper A-Arm | 4 |
| 1 | 1623-241 | Rivet | 1 |
| 5 | 2623-290 | Screw, Self-Tapping | 5 |
| 2 | 1707-568 | Panel, Close-Off | 2 |
| 4 | 8471-616 | Screw, Machine | 4 |
| 1 | 1605-028 | Boot, Steering - Right | 1 |
| 1 | 1605-029 | Boot, Steering - Left | 1 |
| 16 | 0623-362 | Rivet, Reinstallable | 16 |
| 1 | 4707-145 | Frame, Front - Lower w/Bushings (inc. 17-18) | 1 |
| 1 | 0423-391 | Insert | 1 |
| 1 | 1605-057 | Bearing | 1 |
| 4 | 8427-802 | Nut, Lock | 4 |
| 2 | 8427-602 | Nut, Hex | 2 |
| 1 | 1607-577 | Belly Pan - Center | 1 |
| 1 | 8060-686 | Rivet - Zinc | 1 |
| 2 | 8468-620 | Screw, Machine | 2 |
| 1 | 1623-052 | Clip, U-Nut | 1 |
| 3 | 2623-166 | Screw, Self-Tapping | 3 |

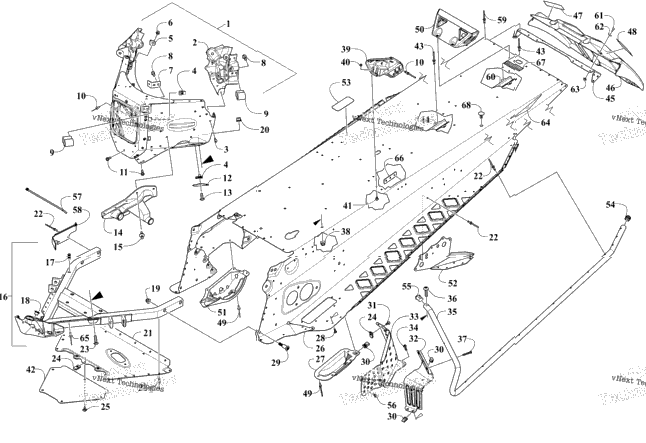

| 1 | 4707-137 | Chassis Assembly (inc.10, 16-20, 29, 39-41, 45, 52, 55, and 66) | 1 |
| 1 | 0607-351 | Protector, Brake Disc | 1 |
| 4 | 8470-516 | Screw, Machine | 4 |
| 4 | 2623-194 | Screw, Shoulder | 4 |
| 9 | 1623-637 | Clip, U-Nut | 9 |
| 1 | 2623-164 | Screw, Self-Tapping | 1 |
| 1 | 2707-658 | Footrest - Right - Black | 1 |
| 1 | 2707-659 | Footrest - Left - Black | 1 |
| 1 | 4707-060 | Shield, Brake Disc - Black | 1 |
| 1 | 8470-520 | Screw, Machine | 1 |
| 1 | 3707-858 | Tube-Right | 1 |
| 1 | 3707-859 | Tube-Left | 1 |
| 2 | 8476-835 | Screw, Cap | 2 |
| 4 | 8468-535 | Screw, Machine | 4 |
| 1 | 8427-802 | Nut, Lock | 1 |
| 1 | 1707-692 | Bracket, Mounting - Rear Spar - Right - Black | 1 |
| 1 | 1707-693 | Bracket, Mounting - Rear Spar - Left - Black | 1 |
| 6 | 8422-502 | Nut, Lock | 6 |
| 6 | 8475-512 | Screw, Machine | 6 |
| 1 | 1607-063 | Panel, Access | 1 |
| 1 | 8060-702 | Rivet - Black | 1 |
| 1 | 0630-381 | Protector, Harness - Taillight | 1 |
| 1 | 4707-085 | End Cap, Tunnel | 1 |
| 1 | 6716-258 | Snowflap | 1 |
| 1 | 5611-852 | Decal, Warning - Towing (French) | 1 |
| 1 | 5611-853 | Decal, Warning - Towing (English) | 1 |
| 1 | 8061-706 | Rivet | 1 |
| 1 | 0730-227 | Bracket, Mounting - Taillight - Black | 1 |
| 1 | 1607-109 | Protector, Chain Case | 1 |
| 1 | 3707-870 | Bracket, Mounting - Suspension - Right - Black | 1 |
| 1 | 3707-871 | Bracket, Mounting - Suspension - Left - Black | 1 |
| 4 | 6606-877 | Pad, Tank | 4 |
| 2 | 2623-304 | Plug | 2 |
| 2 | 2623-296 | Insert | 2 |
| 2 | 8408-613 | Screw, Cap | 2 |
| 1 | 0123-788 | Tie, Cable - 8 in | 1 |
| 1 | 0608-705 | Bracket, Routing - Oil Line | 1 |
| 1 | 1623-130 | Rivet | 1 |
| 1 | 0630-382 | Protector, Harness - Taillight Extension | 1 |
| 4 | 8477-516 | Screw, Machine | 4 |
| 4 | 2623-266 | Washer, Flat | 4 |
| 4 | 8427-502 | Nut, Lock | 4 |
| 2 | 8621-870 | Decal, Reflector - Red | 2 |
| 1 | 8060-706 | Rivet | 1 |
| 2 | 2607-093 | Plate, Backing | 2 |
| 1 | 6621-304 | Decal, Capacity | 1 |
| 2 | 1623-732 | Clip, Retaining | 2 |
