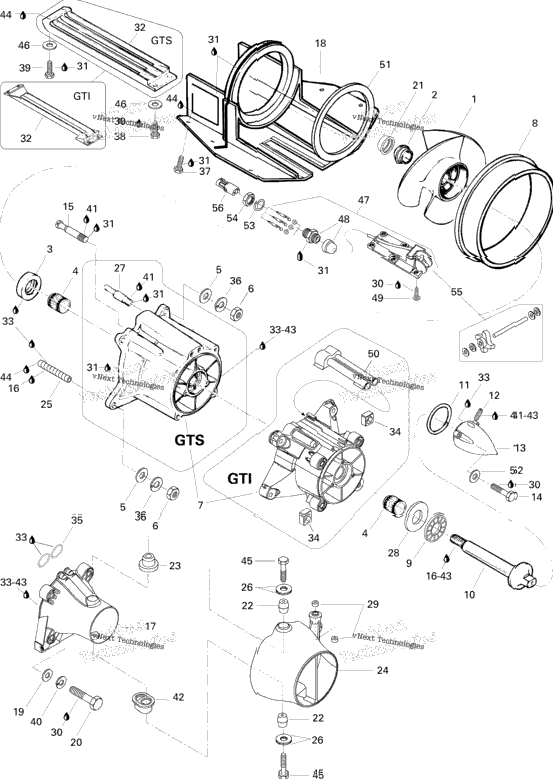

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 271000470 | Stainless Steel Impeller Ass'y | 1 |
| 1 | 271000516 | Impeller Boot | 1 |
| 1 | 293200025 | Double Lip Seal | 1 |
| 2 | 293350001 | Needle Bearing | 2 |
| 4 | 213200003 | Washer 10 mm | 4 |
| 4 | 212100007 | Elastic Stop Nut M10 | 4 |
| 295500391 | IMPELLER HOUSING ASSEMBLY Includes 3, 4, 8, 50 | ||
| 1 | 271000290 | Wear Ring | 1 |
| 1 | 293350011 | Thrust Bearing | 1 |
| 1 | 271000291 | Impeller Shaft | 1 |
| 1 | 293300011 | O-Ring | 1 |
| 1 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt | 1 |
| 271000463 | IMPELLER COVER | ||
| 3 | 210000009 | Hex. Screw M5 x 20 | 3 |
| 1 | 293700019 | FITTING-PUMP | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 271000510 | VENTURI ASS'Y | 1 |
| 271000186190 | Shoe (Black) | ||
| 4 | 213200011 | Flat Washer 8 mm | 4 |
| 215687060 | Hex. Screw M8 x 70 | ||
| 1 | 271000517 | Impeller Ring | 1 |
| 2 | 271000122 | Steering Nozzle Sleeve | 2 |
| 1 | 293900001 | Venturi Bushing | 1 |
| 271000418 | STEERING NOZZLE ASS'Y Includes 23,53 | ||
| 211300015 | STUD-M10 | ||
| 211200002 | Thrust Washer | ||
| 293700017 | BAILER FITTING | ||
| 293350003 | Thrust Washer | ||
| 271000659 | Spacer | ||
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 1 | 293800028 | Sealant, <<Heavy Body>>-"U" Black, 300ml | 1 |
| 1 | 271000466 | INLET GRATE | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 4 | 271000399 | Nut Housing | 4 |
| 2 | 293300013 | O-Ring | 2 |
| 4 | 213000003 | Lock Washer 10 mm | 4 |
| 6 | 216362560 | Countersunk Phillips Screw M6 x 25 | 6 |
| 2 | 215061660 | Hex. Screw M6 x 16 | 2 |
| 2 | 210000004 | Hex. Screw M6 x 20 | 2 |
| 4 | 213000001 | Lock-Washer 8 mm | 4 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 1 | 293900010 | Plastic Bushing | 1 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 2 | 211000047 | SCREW-SPECIAL M8 | 2 |
| 4 | 213200001 | Flat Washer 6 mm | 4 |
| 278000583 | Speed Sensor Includes 47 to 48 | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 216351060 | SCREW-CTSK.OV.HD.PH.DIN.966A-A2 | ||
| 271000366 | WATER OUTLET | ||
| 1 | 293200024 | SEAL NEOPRENE | 1 |
| 3 | 213200004 | Flat Washer 5 mm | 3 |
| 1 | 278000416 | SEAL WASHER | 1 |
| 1 | 293710032 | LOCKING NUT | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
