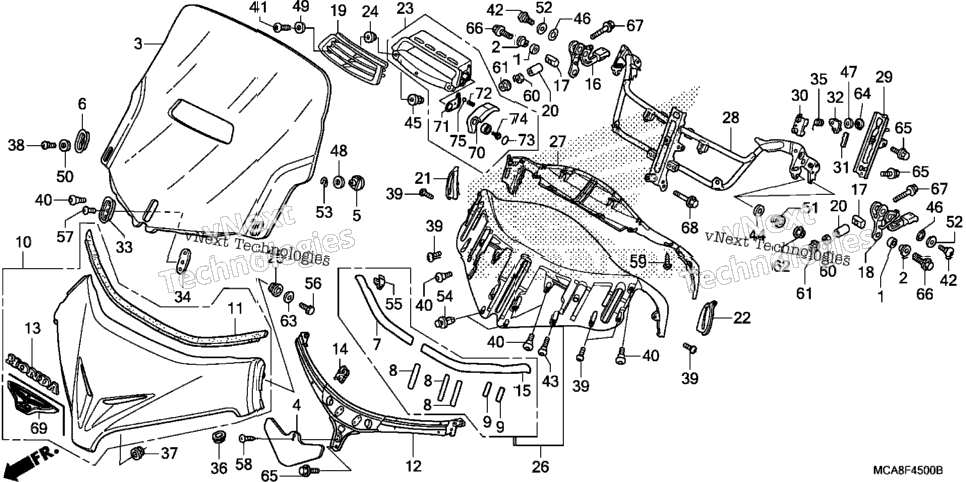

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 50605-GZ4-670 | COLLAR, STEP RUBBER SETTING | 2 |
| 2 | 61105-KM7-910 | COLLAR, FR. FENDER (RR.) | 2 |
| 1 | 64100-MCA-305 | WINDSCREEN (COO) | 1 |
| 1 | 64113-MCA-S40 | COVER, GARNISH | 1 |
| 2 | 64114-MCA-000 | NUT, WINDSCREEN SETTING | 2 |
| 2 | 64116-MN5-000 | PLATE, WINDSCREEN SETTING | 2 |
| 1 | 64117-MCA-300 | TAPE A, R. SLIDE | 1 |
| 6 | 64118-MCA-300 | TAPE B, SLIDE | 6 |
| 4 | 64119-MCA-300 | TAPE C, SLIDE | 4 |
| 1 | 64120-MCA-S40ZJ | GARNISH SET, SCREEN *R342C* (WL) (CANDY PROMINENCE RED) | 1 |
| 1 | 64121-MCA-000 | SEAL, WINDSCREEN | 1 |
| 1 | 64122-MCA-000 | HOLDER, WINDSCREEN | 1 |
| 1 | 64125-MCA-A40 | EMBLEM, FR. (HONDA) | 1 |
| 6 | 64127-MCA-010 | RUBBER, SCREEN HOLDER | 6 |
| 1 | 64128-MCA-300 | TAPE A, L. SLIDE | 1 |
| 1 | 64133-MCA-A60 | LINK, R. ADJUST | 1 |
| 2 | 64137-MCA-000 | BRACKET, TENSIONER | 2 |
| 1 | 64143-MCA-A60 | LINK, L. ADJUSTING | 1 |
| 1 | 64150-MCA-A21 | GRILLE, CENTER FRESH AIR | 1 |
| 2 | 64152-MCA-000 | COLLAR, ADJUSTING LEVER | 2 |
| 1 | 64153-MCA-A60 | RUBBER, R. ADJUSTING LEVER | 1 |
| 1 | 64163-MCA-A60 | RUBBER, L. ADJUSTING LEVER | 1 |
| 1 | 64170-MCA-S42 | VISOR ASSY., FRESH AIR | 1 |
| 2 | 64205-MCA-A21 | GROMMET | 2 |
| 2 | 64246-MJ4-670 | RUBBER, FAIRING MOUNTING | 2 |
| 1 | 64255-MCA-S40ZA | VISOR A, METER PANEL *NH105* (MAT BLACK) | 1 |
| 1 | 64265-MCA-A60ZA | VISOR B, METER PANEL *NH1* (BLACK) | 1 |
| 1 | 64511-MCA-A60 | STAY B, COWL (UPPER) | 1 |
| 1 | 64541-MCA-A60 | HOLDER, ADJUSTER | 1 |
| 1 | 64542-MCA-010 | BODY, ADJUSTER | 1 |
| 1 | 64543-MCA-000 | CAM B, ADJUSTER | 1 |
| 1 | 64544-MCA-000 | CAM A, ADJUSTER | 1 |
| 1 | 64547-MCA-000 | HOLDER A, SCREEN | 1 |
| 1 | 64548-MCA-000 | HOLDER B, SCREEN | 1 |
| 1 | 64549-MCA-000 | SPRING, HOLDER | 1 |
| 2 | 83551-GE2-000 | GROMMET, AIR CLEANER HOUSING | 2 |
| 2 | 83601-MN5-000 | GROMMET, SIDE COVER (PER MS TODA EMAIL 2/26/01) | 2 |
| 2 | 90103-HC4-770 | SCREW, SPLASH GUARD | 2 |
| 6 | 90112-MJK-N20 | SCREW (5X12) | 6 |
| 8 | 90106-KY2-701 | SCREW, PAN (6X11) | 8 |
| 2 | 90109-MBL-610 | SCREW, PAN (5X15.5) | 2 |
| 2 | 90118-MCA-000 | SCREW, PAN (6X11) | 2 |
| 2 | 90138-MCA-000 | SCREW, PAN (6X14) | 2 |
| 4 | 90148-SA0-000 | WASHER, BUMPER BOLT | 4 |
| 2 | 90167-SA0-980 | NUT, FLANGE CAP (5MM) | 2 |
| 2 | 90435-422-000 | WASHER, WAVE (10MM) | 2 |
| 1 | 90443-ZG3-000 | WASHER (10.1MM) | 1 |
| 2 | 90476-703-000 | WASHER | 2 |
| 2 | 90504-MCA-H50 | WASHER, THRUST (5MM) | 2 |
| 2 | 90507-921-000 | WASHER, NYLON (8MM) | 2 |
| 4 | 90512-300-000 | WASHER (6X20) COLLAR, HEADLIGHT SETTING | 4 |
| 2 | 90589-VD6-901 | WASHER, THRUST (8.6X13X0.6) | 2 |
| 2 | 90601-473-003 | E-RING (8MM) | 2 |
| 2 | 90657-SB0-003 | CLIP, SPLASH SHIELD | 2 |
| 2 | 90666-S84-A01 | CLIP, SNAP FITTING | 2 |
| 2 | 92301-06008-0A | BOLT, RECESSED (6X8) | 2 |
| 1 | 90053-371-980 | SCREW, PAN (6X8) | 1 |
| 1 | 93500-06008-0A | SCREW, PAN (6X8) | 1 |
| 1 | 93500-06008-0H | SCREW, PAN (6X8) | 1 |
| 1 | 93500-06008-1H | SCREW, PAN (6X8) | 1 |
| 1 | 93903-24020 | SCREW, TAPPING (4X6) | 1 |
| 5 | 90120-MJK-N20 | SCREW, TAPPING (4X12) | 5 |
| 2 | 94002-06000-0S | NUT, HEX. (6MM) | 2 |
| 2 | 94050-06000 | NUT, FLANGE (6MM) | 2 |
| 4 | 94050-06080 | NUT, FLANGE (6MM) | 4 |
| 2 | 94103-06000 | WASHER, PLAIN (6MM) | 2 |
| 1 | 94510-10000 | CIRCLIP (OUTER) (10MM) | 1 |
| 4 | 96001-06012-00 | BOLT, FLANGE (6X12) | 4 |
| 2 | 96001-06016-00 | BOLT, FLANGE (6X16) | 2 |
| 2 | 96001-06040-00 | BOLT, FLANGE (6X40) | 2 |
| 1 | 96001-06045-00 | BOLT, FLANGE (6X45) | 1 |
| 1 | 64157-MCA-A20 | LEVER, CENTER FRESH AIR | 1 |
| 1 | 64167-MCA-A21 | PLATE, LEVER CLICK | 1 |
| 1 | 64167-MT8-770 | SPRING, LEVER CLICK | 1 |
| 1 | 64168-MT8-770 | PLATE, COVER | 1 |
| 1 | 90105-MB1-000 | SCREW, SPECIAL (5X12) | 1 |
| 1 | 91101-MAM-A80 | BALL, STEEL (#6) (3/16) | 1 |
