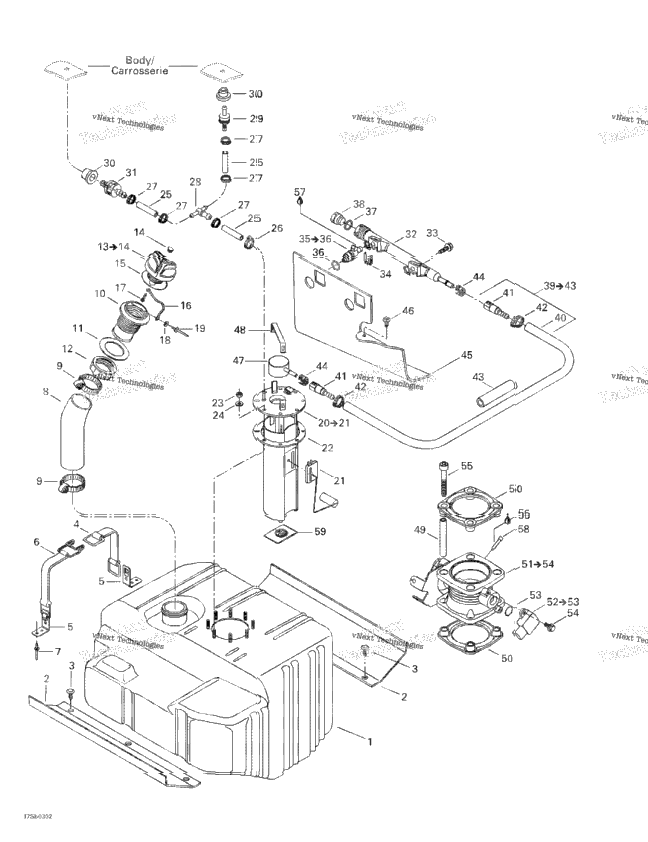

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 275500427 | Fuel Tank | ||
| 293830077 | Rubber Pad | ||
| 6 | 293730006 | Black, Dart | 6 |
| 3 | 293850036 | Fuel Tank Strap | 3 |
| 293850076 | STRAP CLIP 90 | ||
| 3 | 293850038 | Fuel Tank Strap | 3 |
| 12 | 293150037 | Avdel Rivet 3/16" | 12 |
| 275500434 | Filler Neck Hose | ||
| 2 | 293650023 | Tridon Clamp | 2 |
| 1 | 275500231 | Filler Neck, Fuel | 1 |
| 1 | 293250029 | Gasket | 1 |
| 1 | 211100012 | Filler Neck Nut, Fuel | 1 |
| 1 | 275500430 | Fuel Tank Cap, Black Includes 13 - 14. | 1 |
| 1 | 293000034 | Black, Snap Cap | 1 |
| 1 | 293250075 | Gasket | 1 |
| 1 | 275500518 | Chain | 1 |
| 1 | 241140060 | Screw K40 X 10 | 1 |
| 1 | 234032600 | Flat Washer M3, Stainless | 1 |
| 1 | 390407900 | Pop Rivet 1/8" | 1 |
| 1 | 270600089 | Fuel Pump Module Includes 20 - 21. | 1 |
| 270600012 | Sensor Level | ||
| 1 | 293250088 | Gasket | 1 |
| 9 | 232551200 | Elastic Stop Nut 5 mm | 9 |
| 9 | 234052400 | Flat Washer 5 mm, Stainless | 9 |
| 1 | 219704357 | Was 275500549 Hose 1/4" | 1 |
| 1 | 293650128 | Hose Clamp | 1 |
| 5 | 293650050 | Caillau Clic Clamp | 5 |
| 1 | 293710059 | Y-Fitting | 1 |
| 1 | 275500398 | Check Valve | 1 |
| 2 | 293720029 | Grommet | 2 |
| 1 | 275500505 | Check Valve | 1 |
| 270600008 | Fuel Rail | ||
| 2 | 207562560 | Flanged Hex. Screw M6 X 25, Scotch | 2 |
| 270600010 | Injector Circlip | ||
| 270600017 | Injector Includes 35 - 36. | ||
| 293300071 | O-Ring | ||
| 1 | 293300042 | O-RING | 1 |
| 1 | 270600009 | CAP | 1 |
| 275500573 | Hose Ass’y Includes 39 - 43. | ||
| 275500563 | Hose 1/4” | ||
| 2 | 275500428 | CONNECTOR BOX | 2 |
| 2 | 293650047 | Crimp Clamp, 15.3-706R | 2 |
| 275500578 | Shrink Tubing | ||
| 2 | 275500429 | STOPPER CONNECTOR | 2 |
| 1 | 275500441 | RAIL PROTECTOR | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| XXXX | Not Available As Spare Part - Fuel Regulator | ||
| XXXX | Not Available As Spare Part - Latch Bracket | ||
| 4 | 275500352 | SPACER TUBE | 4 |
| 2 | 293250071 | GASKET | 2 |
| XXXX | Not Available As Spare Part - Throttle Body Ass'y Includes 51 - 54. | ||
| 1 | 270000251 | Position Sensor Includes 52 - 53. | 1 |
| 1 | 270000544 | O-Ring | 1 |
| 2 | 270600078 | POTENTIOMETER SCREW M4 | 2 |
| 4 | 205569060 | SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 205063060 | Socket Head Screw M6 X 30 | 1 |
| 1 | 219700368 | Fuel Filter, Bosch | 1 |
