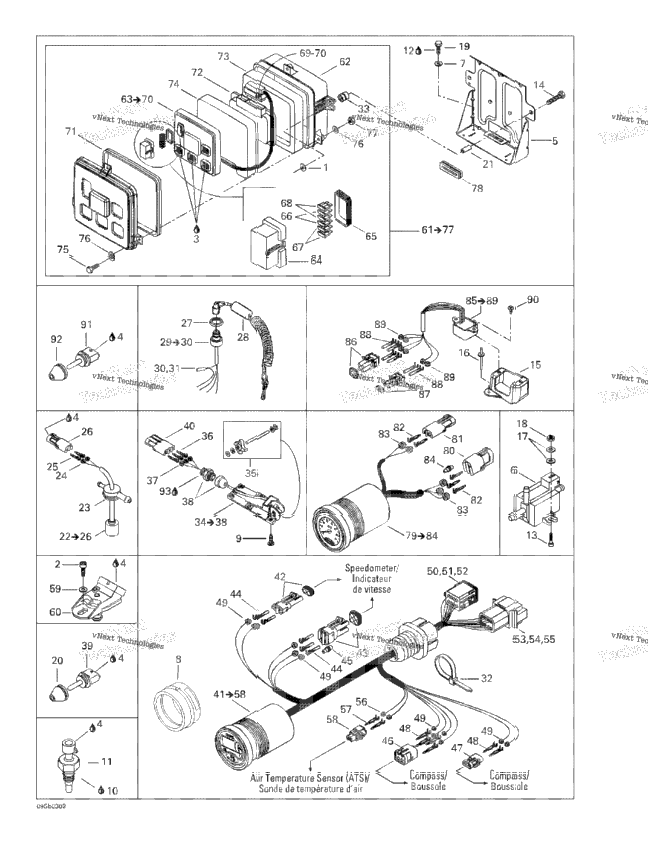

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 205561260 | Socket Head Screw M6 X 12, Scotch Grip | 1 |
| 1 | 293550015 | Deoxit Lubricant, Spray | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278001856 | Box Support | ||
| 1 | 270600005 | Solenoid Valve | 1 |
| 4 | 211200043 | WASHER-LOCK IMPERIAL | 4 |
| 293720047 | Gauge Support | ||
| 6 | 250000020 | Phillips Screw M5 X 10 | 6 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 205052060 | Socket Head Screw M5 X 20 | ||
| 207363060 | Hex. Screw M6 X 30, Scotch Grip | ||
| 278001863 | Support | ||
| 293150080 | Pop Rivet 3/16" | ||
| 4 | 211200035 | Flat Washer | 4 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 1 | 278001054 | INSULATOR | 1 |
| 2 | 272000074 | SPACER | 2 |
| 278001401 | OIL LEVER SENSOR ASS'Y Includes 22 - 26. | ||
| 1 | 293720008 | Grommet | 1 |
| 2 | 278000218 | Wire Seal | 2 |
| 2 | 278000222 | Male Terminal | 2 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 278001543 | Safety Lanyard | 1 |
| 278001790 | SAFETY SWITCH Includes 29 - 30. | ||
| 1 | 278001009 | Female Terminal | 1 |
| 1 | 278000770 | Insulated Sheath | 1 |
| 2 | 414115200 | Tie-Rap 180 mm | 2 |
| 2 | 278001260 | UPPER INSULATOR | 2 |
| 278001595 | Speed Sensor Includes 34 - 38. | ||
| 295500108 | Paddle Wheel Kit | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal | 3 |
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 1 | 270600000 | AIR TEMPERATURE SENSOR | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 278001799 | LCD Info Gauge Includes 41 - 58. | ||
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 5 | 278000223 | Female Terminal | 5 |
| 1 | 278000216 | Wire Seal | 1 |
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 6 | 278000222 | Male Terminal | 6 |
| 11 | 278001065 | Wire Seal | 11 |
| 278001743 | MALE HOUSING, 8 CIRCUITS | ||
| 1 | 278001744 | Secondary Lock, 8 Circuits | 1 |
| 8 | 278001665 | Female Terminal | 8 |
| 278001742 | MALE TERMINAL HOUSING, 8 CIRCUITS | ||
| 1 | 515175276 | LOCK MALE, 8 CIRCUITS | 1 |
| 278001664 | Male Terminal | ||
| 2 | 278000999 | Wire Seal | 2 |
| 2 | 278000998 | Female Terminal | 2 |
| 1 | 278001005 | Male Housing, 2 Circuits | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 270600040 | Pressure Sensor | 1 |
| XXXX | Not Available As Spare Part - Electronic Module Ass'y Includes 61 - 77. | ||
| 278000938 | Electronic Box Base | ||
| 278001848 | Electronic Module Includes 63 - 70. | ||
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 2 | 278001197 | Fuse, 10 Amperes | 2 |
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 3 | 278000998 | Female Terminal | 3 |
| 3 | 278000999 | Wire Seal | 3 |
| 293250063 | Gasket | ||
| 278001849 | Electronic Module | ||
| 278000941 | Lower Foam | ||
| 278001100 | Top Foam | ||
| 3 | 207063060 | Hex. Screw M6 X 30 | 3 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 278001259 | Insulator | ||
| 278001822 | SPEEDOMETER Includes 79 - 84. | ||
| 5 | 278000222 | Male Terminal | 5 |
| 5 | 278001065 | Wire Seal | 5 |
| 278001243 | Compass Includes 85 - 89. | ||
| 6 | 278000223 | Female Terminal | 6 |
| 6 | 278000218 | Wire Seal | 6 |
| 2 | 293730010 | Black Dart | 2 |
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
