Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

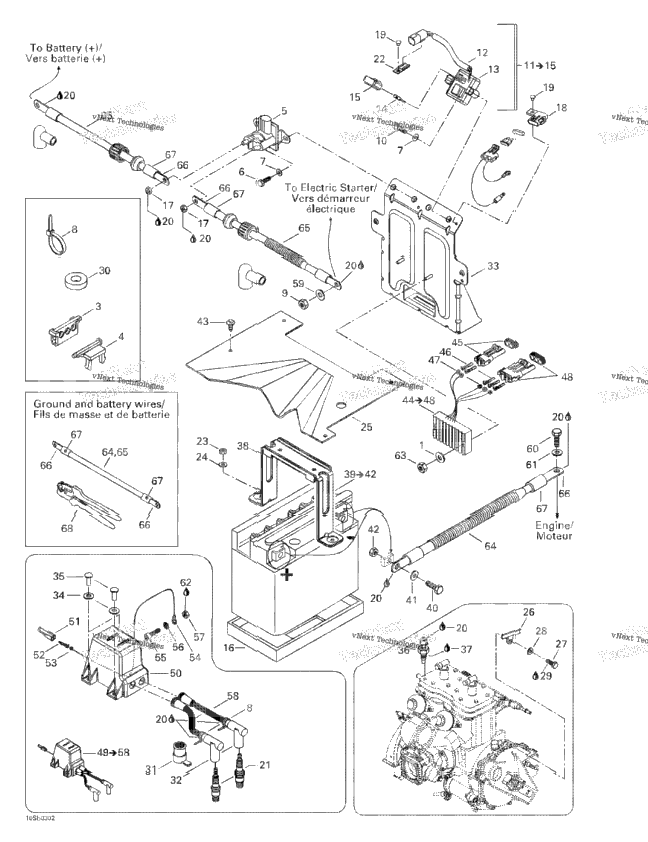

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 278001712 | Electrical Box Base | ||
| 1 | 278000245 | 3 WIRE SUPPORT | 1 |
| 278001096 | Collar Support | ||
| 1 | 278001802 | Relay Starter | 1 |
| 2 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 2 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 207363060 | Hex. Screw M6 X 30, Scotch Grip | ||
| 1 | 278001783 | MAIN RELAY Includes 11 - 15. | 1 |
| 1 | 278000805 | Cushion | 1 |
| XXXX | Not Available As Spare Part - Electric Box | ||
| XXXX | Not Available As Spare Part - Fuse 20A | ||
| XXXX | Not Available As Spare Part - Fuse Holder Cover | ||
| 278001746 | Lower Battery Pad | ||
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 278001326 | Fuse Holder Cap | 1 |
| 2 | 204000081 | Pop Rivet 3/16" | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 2 | 278000609 | Spark Plug, NGK BR8-ES | 2 |
| 1 | 270000141 | Clip | 1 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 275500577 | Protector | ||
| 278001873 | Clip | ||
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 250200038 | Brass Washer | ||
| 2 | 278001380 | PROTECTOR CAP | 2 |
| 2 | 278000237 | Spark Plug Cap | 2 |
| 278001856 | Box Support | ||
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 209663260 | Tapping Screw M6.3 X 32 | ||
| 1 | 278001016 | Temperature Sensor | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 278001677 | BATTERY SUPPORT | ||
| 1 | 278001756 | Battery 19A Includes 39 - 42. | 1 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 278001554 | Rectifier Ass’Y Includes 44 - 48. | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 5 | 409007300 | Female Terminal | 5 |
| 5 | 278000218 | Wire Seal | 5 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 278001545 | IGNITION COIL ASSY Includes 49 - 58. | ||
| 1 | 278001546 | Ignition Coil | 1 |
| 1 | 278000161 | Female Housing, 1 Circuit | 1 |
| 1 | 409004300 | Male Terminal | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 409003200 | OPEN BARREL | ||
| 1 | 205062044 | Socket Head Screw M6 X 20 | 1 |
| 1 | 394001900 | External Tooth Lock Washer | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 278001464 | Spark Plug Wire, 270 mm | ||
| 278001465 | Spark Plug Wire | ||
| 1 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 1 |
| 1 | 234081600 | Stainless, Flat Washer 8 mm | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 278001850 | Ground Cable, Black Includes 66,67 | ||
| 278001803 | Battery Cable Includes 66,67 | ||
| 278001804 | Starter Cable Includes 66,67 | ||
| XXXX | Not Available As Spare Part - Terminal 30 Deg. (2 Holes) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45 Deg. (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90 Deg. (Small Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45 Deg. (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90 Deg. (Big Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal | ||
| XXXX | Not Available As Spare Part - Heat Shrink | ||
| XXXX | Not Available As Spare Part - Crimp Plier |
