Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

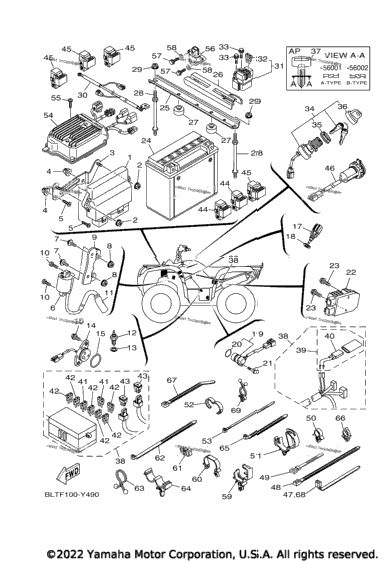

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | B4F-8591A-21-00 | Engine Control Unit Assy | 1 |
| 2 | 95702-06500-00 | Nut, Flange | 2 |
| 1 | B4F-H5991-00-00 | Bracket, Unit | 1 |
| 2 | 90338-08226-00 | Plug | 2 |
| 2 | 97702-60520-00 | Screw, Tapping | 2 |
| 1 | 1D7-82310-04-00 | Ignition Coil Assy | 1 |
| 2 | 97012-06020-00 | ..Bolt | 2 |
| 2 | 95602-06200-00 | Nut, Self-Locking | 2 |
| 1 | B4F-82316-00-00 | Bracket, Ignition Coil | 1 |
| 2 | 90119-06209-00 | Bolt, With Washer | 2 |
| 1 | 5VK-82370-00-00 | Plug Cap Assy | 1 |
| 1 | 3GB-82540-01-00 | Neutral Switch Assy | 1 |
| 1 | 90430-10148-00 | Gasket | 1 |
| 1 | 3B4-82540-01-00 | Neutral Switch Assy | 1 |
| 1 | 93210-29196-00 | O-Ring | 1 |
| 2 | 90119-06137-00 | .Bolt, With Washer | 2 |
| 1 | 5YP-85790-00-00 | Thermosensor Assy | 1 |
| 1 | 90430-12202-00 | Gasket | 1 |
| 1 | 3B4-83755-01-00 | Sensor, Speed | 1 |
| 1 | 4D9-81168-00-00 | . .O-Ring | 1 |
| 1 | 90110-06175-00 | Bolt, Hexagon Socket Head | 1 |
| 1 | 1D7-81960-10-00 | Rectifier & Regulator Assy | 1 |
| 2 | 95D32-06020-00 | Bolt, Flange Deep Recess | 2 |
| 1 | YTX-20LBS-00-00 | Battery Assy (Yuasa Ytx20l-Bs) | 1 |
| 1 | 1HP-H2128-00-00 | Bracket, Battery | 1 |
| 1 | 3B4-82129-01-00 | Cover, Battery | 1 |
| 2 | B4F-F4741-00-00 | Pad, Seat | 2 |
| 2 | 3B4-82133-20-00 | Screw, Fitting | 2 |
| 1 | 34D-82116-01-00 | Wire, Minus Lead | 1 |
| 1 | 3B4-81940-00-00 | Starter Relay Assy (2768113-A) | 1 |
| 2 | 36Y-82151-00-00 | . .Fuse (15A-Blue) | 2 |
| 2 | 95022-06008-00 | Bolt, Flange | 2 |
| 1 | 28P-82510-01-00 | Main Switch Assy | 1 |
| 1 | 3HN-82569-00-00 | . .Nut, Main Switch | 1 |
| 1 | 3HN-82579-00-00 | . .Cap, Key | 1 |
| 1 | 90890-56001-00 | Blank Key (A-Type) AP | 1 |
| 1 | 90890-56002-00 | Blank Key (B-Type) AP | 1 |
| 1 | B4F-82590-12-00 | Wire Harness Assy | 1 |
| 1 | 4GB-82180-00-00 | . .Circuit Breaker Assy | 1 |
| 1 | 4GB-82560-00-00 | . . ..Thermo Switch Assy | 1 |
| 2 | 5JJ-82151-20-00 | . .Fuse (20A-Bl) | 2 |
| 6 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 6 |
| 2 | 5PS-82151-00-00 | . .Fuse (40A) | 2 |
| 2 | 5DM-81950-01-00 | Relay Assy (G8hn-1C4t-Dj-Y52) | 2 |
| 4 | 8DM-81950-11-00 | Relay Assy (8Dm-11) | 4 |
| 1 | 1HP-H254B-10-00 | Terminal Comp | 1 |
| 2 | 90464-15195-00 | Clamp | 2 |
| 4 | 90464-40825-00 | Clamp | 4 |
| 2 | 437-83936-01-00 | Band, Switch Cord | 2 |
| 4 | 90464-15157-00 | Clamp | 4 |
| 2 | 90464-20181-00 | Clamp | 2 |
| 1 | 90464-16001-00 | Clamp | 1 |
| 1 | 5Y9-12491-00-00 | Clamp 1 | 1 |
| 1 | 2BG-859A0-01-00 | Power Strg. Cont. Unit Assy | 1 |
| 1 | 98902-06020-00 | Screw, Bind | 1 |
| 1 | 3B4-82576-10-00 | Sensor, Lean Angle | 1 |
| 2 | 97002-05016-00 | Bolt | 2 |
| 2 | 92902-05600-00 | Washer, Plate | 2 |
| 2 | 90464-20237-00 | Clamp | 2 |
| 1 | 90464-24230-00 | Clamp | 1 |
| 1 | 90464-09013-00 | Clamp | 1 |
| 3 | 90464-12045-00 | Clamp | 3 |
| 1 | 90464-14800-00 | Clamp | 1 |
| 1 | 90464-16012-00 | Clamp | 1 |
| 1 | 90465-13M11-00 | Clamp | 1 |
| 1 | 90464-10833-00 | Clamp | 1 |
| 2 | 90465-10098-00 | Clamp | 2 |
| 1 | 90464-13073-00 | Clamp (125.0x7.0) | 1 |
| 1 | 90464-12M35-00 | Clamp | 1 |
