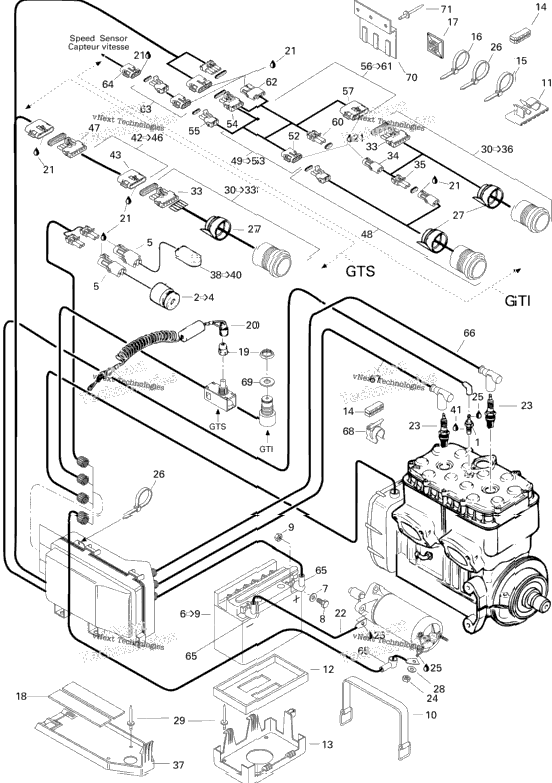

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278000194 | Temperature Sensor | ||
| 278000881 | BUZZER ASS?Y Includes 2 to 4 | ||
| 2 | 278000222 | Male Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 1 | 278000712 | Battery Includes 6 to 9 | 1 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 2 | 293850021 | Rubber Strap | 2 |
| 1 | 293750005 | TIE CLAMP | 1 |
| 278000776 | Battery Lower Pad | ||
| 278000476 | Battery Support | ||
| 2 | 278000245 | 3 WIRE SUPPORT | 2 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 294000606 | Tie Rap 180 mm | 1 |
| 293750010 | Tie-rap Mount | ||
| 293830012 | Rubber Strip | ||
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 295500381 | Safety Lanyard Ass'y | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 278000681 | Battery Ground Cable | ||
| 2 | 278000609 | Spark Plug, NGK BR8-ES | 2 |
| 1 | 212000001 | Elastic Stop Nut M6 | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 293720005 | GAUGE SUPPORT | ||
| 1 | 213200001 | Flat Washer 6 mm | 1 |
| 1 | 293150037 | Avdel Rivet 3/16" | 1 |
| 278000502 | Oil / Fuel Level Gauge Includes 30 to 36 | ||
| 8 | 278000223 | Female Terminal | 8 |
| 10 | 278000585 | Wire Seal (20 Gauge) (Purple) (Packard) | 10 |
| 278000221 | MALE CONNECTOR, 6 CIRCUITS | ||
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 278000780 | Box Support | ||
| 1 | 278000501 | S top / Start Switch Ass‘y Includes 38 to 40 | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| XXX | Not Available As Spare Parts | ||
| 278000582 | Speedo Gauge | ||
| 278000503 | Harness (5 Wires) Includes 49 to 53 | ||
| 5 | 278000223 | Female Terminal | 5 |
| 10 | 278000218 | Wire Seal | 10 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 5 | 278000222 | Male Terminal | 5 |
| 1 | 278000395 | Male Housing, 4 Circuits | 1 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 278000504 | Harness (6 Wires) Includes 56 to 61 | ||
| 278000156 | FEMALE CONNECTOR, 6 CIRCUITS | ||
| 8 | 278000222 | Male Terminal | 8 |
| 12 | 278000218 | Wire Seal | 12 |
| 4 | 278000223 | Female Terminal | 4 |
| 278000394 | FEMALE HOUSING, 4 CIRCUITS | ||
| 278000581 | Harness (3 Wires) | ||
| 1 | 278000020 | PROTECTION CAP | 1 |
| 1 | 278002198 | SPARK PLUG WIRE | 1 |
| 278000322 | Spark Plug Wire 530 (MAG) | ||
| 2 | 278000559 | COLLAR SUPPORT | 2 |
| 1 | 211200027 | WASHER | 1 |
| 278000318 | Housing Index | ||
| 2 | 293150006 | Pop Rivet 1/8" | 2 |
