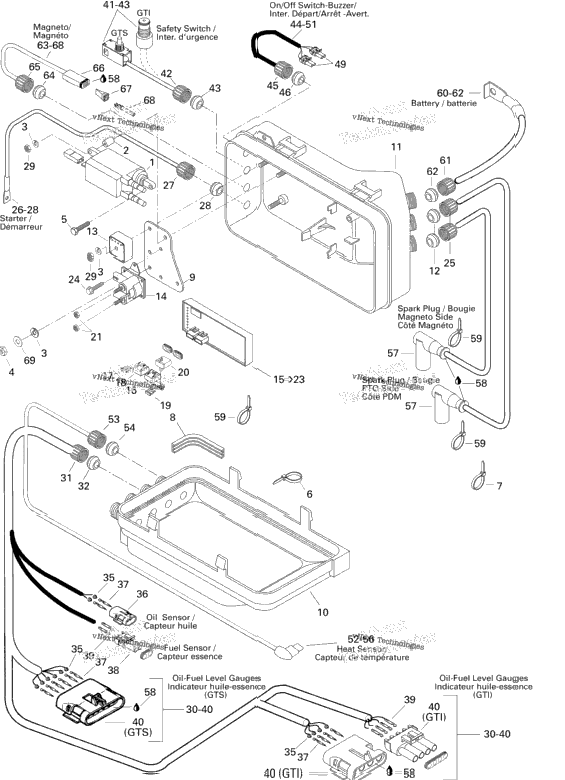

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278000586 | IGNITION COIL | ||
| 278000235 | SPACER | ||
| 3 | 217361500 | Washer Lock 6 | 3 |
| 1 | 212100004 | Elastic Stop Nut M6 | 1 |
| 215462550 | Self Tapping Screw M6.3 x 25 | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 294000606 | Tie Rap 180 mm | 1 |
| 278000181 | Gasket | ||
| 278000615 | Mounting Plate | ||
| 278000786 | Electric Box Cover | ||
| 278000781 | Electric Box Base | ||
| 278000682 | Grommet | ||
| 1 | 278000123 | RECTIFIER ASS'Y | 1 |
| 1 | 278000513 | Starter Relay | 1 |
| 278001025 | ELECTRONIC MODULE ASS'Y Includes 15 to 23 | ||
| 1 | 278000345 | Fuse Cap | 1 |
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 1 | 278000378 | FUSE CAP | 1 |
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 278000379 | Fuse Holder | ||
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 3 | 278000230 | Male Terminal | 3 |
| 3 | 278000231 | Insulation Sheath | 3 |
| 2 | 211000035 | Self Tapping Screw M6 x 10 | 2 |
| 278000100 | Electric Wire Cap | ||
| 278000192 | Starter Cable (Red) Includes 26 to 28 | ||
| 278000098 | GROMMET | ||
| 2 | 212100004 | Elastic Stop Nut M6 | 2 |
| 278000471 | Gauge Harness Ass'y Includes 30 to 40 | ||
| 570026800 | Grommet, 4 Circuit, Red | ||
| 12 | 278000218 | Wire Seal | 12 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 6 | 278000222 | Male Terminal | 6 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 6 | 278000223 | Female Terminal | 6 |
| 278000394 | FEMALE HOUSING, 4 CIRCUITS | ||
| 1 | 278000395 | Male Housing, 4 Circuits | 1 |
| 278000638 | SAFETY SWITCH Includes 41 to 43 | ||
| 278000193 | GROMMET, 3 CIRCUIT, BLACK | ||
| 278000470 | Buzzer-On/Off Switch Wiring Includes 44 to 51 | ||
| 2 | 278000230 | Male Terminal | 2 |
| 2 | 278000231 | Insulation Sheath | 2 |
| 2 | 278000220 | Male Connector, 2 Circuits | 2 |
| 4 | 278000223 | Female Terminal | 4 |
| 4 | 278000218 | Wire Seal | 4 |
| 278000489 | Temperature Harness Ass'y Includes 52 to 56 | ||
| 293720030 | Grommet, 1 Circuit, Blue | ||
| 1 | 278000230 | Male Terminal | 1 |
| 1 | 278000231 | Insulation Sheath | 1 |
| 2 | 278000237 | Spark Plug Cap | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 278000514 | Battery Cable (Red) Includes 60 to 62 | ||
| 278000472 | Engine Harness Includes 63 to 68 | ||
| 1 | 278000739 | Male Connector, 4 Circuits | 1 |
| 1 | 278000738 | Male Lock, 4 Circuits | 1 |
| 1 | 278000632 | Female Terminal | 1 |
| 1 | 213200001 | Flat Washer 6 mm | 1 |
