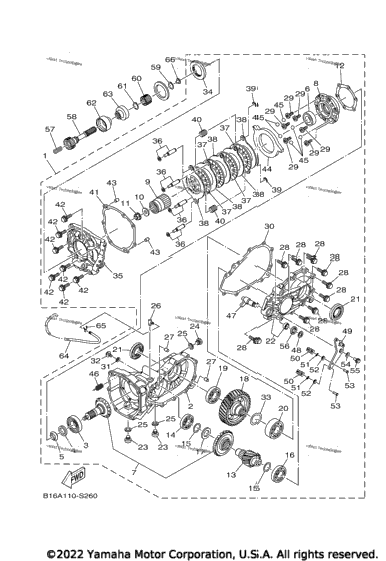

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | B16-46101-10-00 | Rear Axle Gear Case Assy | 1 |
| 1 | B16-46540-00-00 | . .Rear Axle Housing Comp | 1 |
| 1 | 93332-00046-00 | . .Bearing | 1 |
| 1 | 90201-25634-00 | . .Washer, Plate | 1 |
| 1 | 3B4-46129-00-00 | . .Spacer, Expansion | 1 |
| 1 | 93332-00053-00 | . .Bearing | 1 |
| 1 | 3B4-461A0-00-00 | . .Ring Gear Set | 1 |
| 1 | B16-46144-00-00 | . .Housing, Pinion Bearing | 1 |
| 1 | B16-46126-00-00 | . .Coupling | 1 |
| 1 | 90201-12029-00 | . .Washer, Plate | 1 |
| 1 | 90179-12005-00 | . .Nut | 1 |
| 1 | B16-46127-00-00 | . .Shim, Drive Pinion (0.30T) UR | 1 |
| 1 | B16-46127-10-00 | . .Shim, Drive Pinion (0.35T) UR | 1 |
| 1 | B16-46127-20-00 | . .Shim, Drive Pinion (0.40T) UR | 1 |
| 1 | B16-46127-30-00 | . .Shim, Drive Pinion (0.45T) UR | 1 |
| 1 | B16-46127-40-00 | . .Shim, Drive Pinion (0.50T) UR | 1 |
| 1 | B16-46127-50-00 | . .Shim, Drive Pinion (0.25T) UR | 1 |
| 1 | 3B4-46316-00-00 | . .Gear, Pinion 1 | 1 |
| 1 | 93306-205U0-00 | . .Bearing | 1 |
| 2 | 3B4-46119-00-00 | . .Shim, Thrust (0.25T) UR | 2 |
| 2 | 3B4-46119-10-00 | . .Shim, Thrust (0.30T) UR | 2 |
| 2 | 3B4-46119-20-00 | . .Shim, Thrust (0.35T) UR | 2 |
| 2 | 3B4-46119-30-00 | . .Shim, Thrust (0.40T) UR | 2 |
| 2 | 3B4-46119-40-00 | . .Shim, Thrust (0.45T) UR | 2 |
| 2 | 3B4-46119-50-00 | . .Shim, Thrust (0.50T) UR | 2 |
| 1 | 93306-30534-00 | . .Bearing | 1 |
| 1 | 3B4-4621F-00-00 | . .Shim,Thrust (4.5T) UR | 1 |
| 1 | 3B4-4621F-10-00 | . .Shim,Thrust (4.8T) UR | 1 |
| 1 | 3B4-4621F-20-00 | . .Shim,Thrust (5.1T) UR | 1 |
| 1 | 3B4-4621F-30-00 | . .Shim,Thrust (5.4T) UR | 1 |
| 1 | 3B4-46326-01-00 | . .Gear, Wheel 1 | 1 |
| 1 | 93306-00704-00 | . .Bearing | 1 |
| 1 | 93306-207U0-00 | . .Bearing | 1 |
| 2 | 93102-35031-00 | . .Oil Seal | 2 |
| 1 | B16-46550-00-00 | . .Rear Axle Housing Comp. 2 | 1 |
| 2 | 90340-14002-00 | . .Plug, Straight Screw | 2 |
| 1 | 90340-14029-00 | . Plug, Straight Screw | 1 |
| 3 | 214-11198-01-00 | . Gasket | 3 |
| 1 | 5UG-15371-00-00 | . .Breather | 1 |
| 2 | 93610-14002-00 | . .Pin, Dowel | 2 |
| 10 | 95822-08035-00 | . .Bolt, Flange | 10 |
| 6 | 90109-08237-00 | . .Bolt | 6 |
| 1 | B16-4631A-00-00 | . .Gskt., Case | 1 |
| 1 | 90201-08087-00 | . .Washer, Plate | 1 |
| 1 | 95022-08012-00 | . .Bolt, Flange | 1 |
| 1 | 3B4-46344-00-00 | . .Shim (0.25T) UR | 1 |
| 1 | 3B4-46344-10-00 | . .Shim (0.30T) UR | 1 |
| 1 | 3B4-46344-20-00 | . .Shim (0.35T) UR | 1 |
| 1 | 3B4-46344-30-00 | . .Shim (0.40T) UR | 1 |
| 1 | 3B4-46344-40-00 | . .Shim (0.45T) UR | 1 |
| 1 | 3B4-46344-50-00 | . .Shim (0.50T) UR | 1 |
| 1 | 93105-45007-00 | . .Oil Seal | 1 |
| 1 | B16-4613F-00-00 | . .Cover 1 | 1 |
| 4 | B16-46155-00-00 | . .Bolt 1 | 4 |
| 4 | B16-42525-00-00 | . .Plate, Friction | 4 |
| 5 | B16-46336-00-00 | . .Plate 1 | 5 |
| 2 | 99002-09600-00 | . .Circlip | 2 |
| 2 | 90501-180A2-00 | . .Spring, Compression | 2 |
| 1 | B16-4631E-00-00 | . .Gasket, Cover | 1 |
| 7 | 95822-08035-00 | . .Bolt, Flange | 7 |
| 1 | B16-4582E-00-00 | . .Cam, Plate | 1 |
| 6 | 93515-32029-00 | . .Ball | 6 |
| 1 | B16-46375-00-00 | . .Spring, Return | 1 |
| 1 | B16-46265-00-00 | . .Shaft | 1 |
| 1 | 90201-13015-00 | . .Washer, Plate | 1 |
| 1 | B16-25355-00-00 | . .Lever, Camshaft | 1 |
| 2 | B16-26374-00-00 | . .End, Cable 3 | 2 |
| 2 | 91402-20012-00 | . Pin, Cotter | 2 |
| 2 | 92902-06600-00 | . .Washer, Plate | 2 |
| 2 | 91702-06018-00 | . .Pin, Clevis | 2 |
| 1 | 92902-08200-00 | . Washer | 1 |
| 1 | 95822-08016-00 | . Bolt, Flange | 1 |
| 1 | 93102-17008-00 | . .Oil Seal | 1 |
| 1 | 90501-20361-00 | Spring, Compression | 1 |
| 1 | 1HP-G6172-00-00 | Shaft, Drive | 1 |
| 1 | 99009-19400-00 | Circlip | 1 |
| 1 | 5KM-46126-00-00 | Coupling | 1 |
| 1 | 93410-22039-00 | Circlip | 1 |
| 1 | 5KM-46137-00-00 | Seal 2 | 1 |
| 1 | 5KM-46136-00-00 | Seal 1 | 1 |
| 1 | 90445-074F6-00 | Hose (L1300) | 1 |
| 1 | 90467-07029-00 | Clip | 1 |
| 1 | 5KM-46559-00-00 | Damper | 1 |
