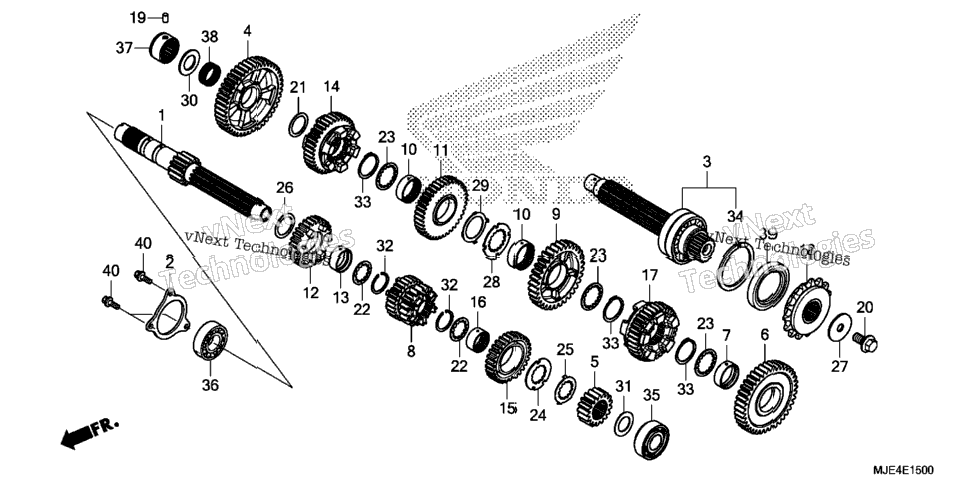

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 23211-MJE-D00 | MAINSHAFT (14T) | 1 |
| 1 | 23212-MJE-D00 | PLATE, BEARING SETTING | 1 |
| 1 | 23220-MJE-D00 | COUNTERSHAFT | 1 |
| 1 | 23421-MJE-DB0 | GEAR, COUNTERSHAFT FIRST (43T) | 1 |
| 1 | 23431-MJE-DB0 | GEAR, MAINSHAFT SECOND (17T) | 1 |
| 1 | 23441-MJE-DB0 | GEAR, COUNTERSHAFT SECOND (40T) | 1 |
| 1 | 23442-MS2-610 | COLLAR (30X11.2) | 1 |
| 1 | 23451-MJE-DB0 | GEAR, MAINSHAFT THIRD & FOURTH (18T/25T) | 1 |
| 1 | 23461-MJE-DB0 | GEAR, COUNTERSHAFT THIRD (34T) | 1 |
| 2 | 23462-MAT-000 | COLLAR, SPLINE (30X11) | 2 |
| 1 | 23481-MJE-DB0 | GEAR, COUNTERSHAFT FOURTH (39T) | 1 |
| 1 | 23491-MJE-DB0 | GEAR, MAINSHAFT FIFTH (27T) | 1 |
| 1 | 23492-MGZ-J00 | COLLAR (25X28X12) | 1 |
| 1 | 23501-MJE-DB0 | GEAR, COUNTERSHAFT FIFTH (37T) | 1 |
| 1 | 23511-MJE-DB0 | GEAR, MAINSHAFT SIXTH (28T) | 1 |
| 1 | 23512-MV9-670 | COLLAR, SPLINE (25X28X13) | 1 |
| 1 | 23521-MJE-DB0 | GEAR, COUNTERSHAFT SIXTH (34T) | 1 |
| 1 | 23801-MJE-D00 | SPROCKET, DRIVE (15T) | 1 |
| 1 | 24261-283-000 | PIN, GEARSHIFT FORK GUIDE | 1 |
| 1 | 90037-422-003 | BOLT, SPECIAL (10MM) | 1 |
| 1 | 90402-HA5-000 | WASHER, THRUST (24MM) | 1 |
| 2 | 90451-KY2-000 | WASHER, SPLINE (25X31X1.5) | 2 |
| 3 | 90452-MAT-000 | WASHER, SPLINE (30X36X1.5) | 3 |
| 1 | 90454-KYJ-900 | WASHER, SPLINE (25X42X1.6) | 1 |
| 1 | 90455-KYJ-900 | WASHER, LOCK (25MM) | 1 |
| 1 | 90456-MA6-000 | WASHER, THRUST (25MM) | 1 |
| 1 | 90459-438-000 | WASHER (10.2MM) | 1 |
| 1 | 90463-MAT-000 | WASHER, SPLINE (30MM) | 1 |
| 1 | 90464-MAT-000 | WASHER, LOCK (30MM) | 1 |
| 1 | 90469-759-000 | SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM) | 1 |
| 1 | 90554-MEL-000 | WASHER, THRUST (20MM) | 1 |
| 2 | 90601-107-000 | CIRCLIP (25MM) | 2 |
| 3 | 90604-MM5-000 | CIRCLIP (30MM) | 3 |
| 1 | 90606-MM5-000 | RING, SNAP (62MM) | 1 |
| 1 | 91001-464-003 | BEARING, RADIAL BALL (6204U) (TOYO) | 1 |
| 1 | 91004-MFJ-D01 | BEARING, BALL (6305) | 1 |
| 1 | 91022-MJE-DB1 | BEARING, NEEDLE (20MM) (NTN) | 1 |
| 1 | 91026-MJE-D01 | BEARING, NEEDLE (24X28X10) | 1 |
| 1 | 91207-MAL-601 | OIL SEAL (40X62X8.4) | 1 |
| 3 | 95701-06014-00 | BOLT, FLANGE (6X14) (Honda Code 2410884) | 3 |
