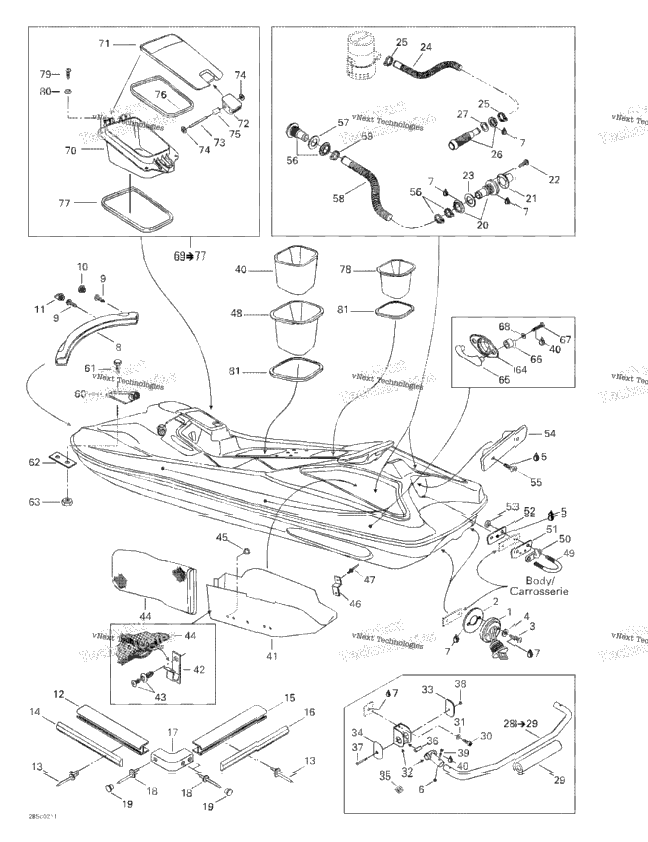

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 292000187 | Drain Plug | 2 |
| 2 | 293250030 | GASKET | 2 |
| 209642560 | PHILLIPS SCREW M4.2 X 25 | ||
| 8 | 234041600 | Flat Washer 4 mm, Stainless | 8 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 232361600 | Nut M6 | 2 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 291001035 | NOSE BUMPER, BLACK | ||
| 211000037 | Phillips Screw 10-14 X 7/8” | ||
| 291001519 | Bumper Plug, Black | ||
| 2 | 291001040 | Bumper Plug, Black | 2 |
| 2 | 204050270 | Black, Side Bumper | 2 |
| 73 | 293150005 | Pop Rivet 3/16" | 73 |
| 204050271 | SIDE BUMPER TRIM | ||
| 204050278 | Black, Rear Bumper | ||
| 204050279 | REAR BUMPER TRIM, BLACK | ||
| 2 | 291001505 | Bumper Corner, Black | 2 |
| 6 | 293150013 | Pop Rivet 3/16" | 6 |
| 6 | 291000339 | Bumper Plug, Black | 6 |
| 2 | 204060071 | THRU HULL FITTING | 2 |
| 2 | 204060188 | SCUPPER VALVE | 2 |
| 8 | 211000180 | PHILLIPS SCREW #8 X 1/2, PLASTITE | 8 |
| 2 | 293250039 | Gasket | 2 |
| 204050299 | Hose Bilgeflex 3/4", meter | ||
| 2 | 293650016 | Tridon Clamp | 2 |
| 1 | 293710015 | Perko Fitting 3/4" | 1 |
| 293250006 | GASKET | ||
| 292000590 | Stair Tube Includes 28 - 29. | ||
| 292000593 | Protector Tube | ||
| 6 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 6 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 292000539 | Support Ass’Y | ||
| 292000540 | RH Support Cap | ||
| 292000548 | LH Support Cap | ||
| 2 | 292000541 | RECALL SPRING | 2 |
| XXXX | Not Available As Spare Part - Plastic Tube | ||
| 211000186 | Phillips Screw | ||
| 211100061 | NUT-LOCKING 1/4-20 | ||
| 2 | 205063560 | Socket Head Screw M6 X 35 | 2 |
| 1 | 204630008 | ICEBOX FOAM | 1 |
| XXXX | Not Available As Spare Part - Side Tray (Starboard) | ||
| XXXX | Not Available As Spare Part - Side Tray (Port) | ||
| 414839700 | Clip Cable | ||
| 211000088 | SCREW-TUFLOCK PHILLIPS | ||
| XXXX | Not Available As Spare Part - Ski Bag | ||
| 10 | 291000279 | Black Plug | 10 |
| 204050341 | Retaining Plate | ||
| 2 | 293150014 | Pop Rivet 3/16" | 2 |
| 204620179 | Storage Tray | ||
| 1 | 292000011 | U-CLAMP | 1 |
| 1 | 291001232 | Hook | 1 |
| 291000544 | Finition Plate | ||
| 1 | 291000307 | RETAINING PLATE | 1 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 204070194 | GRIP HANDLE, BLACK | ||
| 2 | 205364060 | Socket Head Screw M6 X 40 | 2 |
| 2 | 293710060 | FITTING | 2 |
| 1 | 204070560 | HOSE BILGEFLEX 1-1/2?, METER | 1 |
| 6 | 293650074 | Norma Clamp | 6 |
| 1 | 291000855 | SHOCK SUPPORT | 1 |
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 1 | 291000079 | REINFORCEMENT PLATE | 1 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 6 | 291001195 | CARGO HOOK BASE | 6 |
| 6 | 291001196 | HOOK CARGO CLEATS | 6 |
| 12 | 291001203 | Spacer | 12 |
| 207151660 | HEX. SCREW M5 X 16 | ||
| 12 | 234052600 | Flat Washer 5 mm, Stainless | 12 |
| 204071410 | Gloves Box Ass'y Includes 69 - 77. | ||
| 269500439 | Box Gloves | ||
| 269500438 | Door (Box Gloves) | ||
| 1 | 269500441 | Latch | 1 |
| 1 | 211400008 | Pin | 1 |
| 2 | 211100002 | Push Nut | 2 |
| 1 | 291000922 | Latch Spring | 1 |
| 1 | 293250060 | GASKET | 1 |
| 1 | 219704373 | Was 293250143 Neoprene Seal | 1 |
| 204620178 | Rear Tray | ||
| 4 | 209943260 | Phillips Tapping Screw M4.2 X 32 | 4 |
| 4 | 204100057 | FINITION WASHER | 4 |
| 293200032 | TRAY SEAL, METER |
