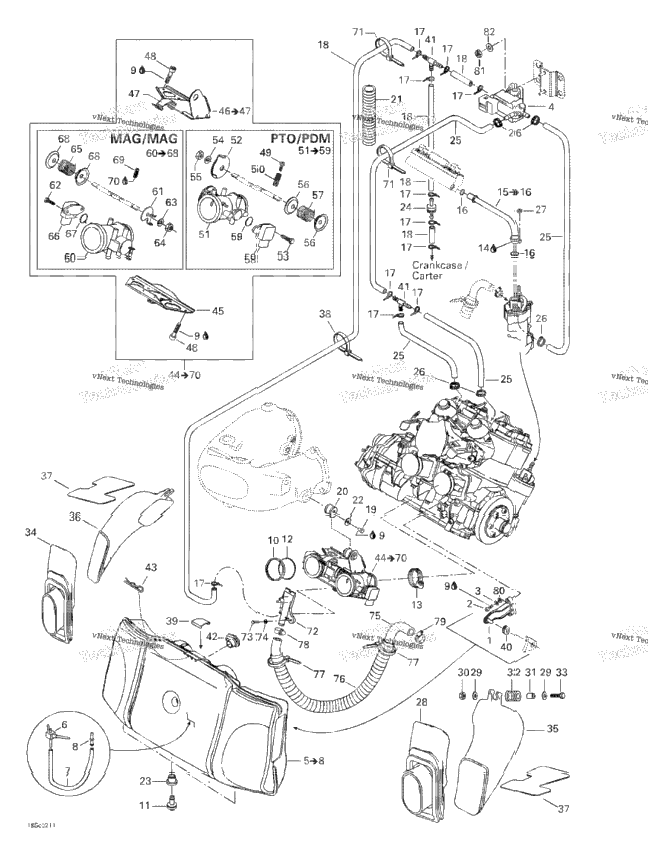

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 273000123 | Silencer Support | ||
| 2 | 205063560 | Socket Head Screw M6 X 35 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 270600044 | SOLENOID VALVE | ||
| 273000209 | Air Silencer Includes 5 - 8. | ||
| XXXX | Not Available As Spare Part - Injector Ass'y (3 holes) | ||
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 1 | 273000181 | Connector | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 293250122 | Gasket | 2 |
| 3 | 275500454 | CHECK VALVE | 3 |
| 293250065 | O-Ring | ||
| 2 | 293650079 | Norma Clamp | 2 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 270600022 | Pressure Hose Includes 15 - 16. | ||
| 293300070 | O-Ring | ||
| 11 | 293750001 | Tie Wrap 94 mm | 11 |
| 1 | 219704352 | Was 420660574 Pressure Hose 280 mm | 1 |
| 1 | 207181260 | HEX. SCREW M8 X 12 | 1 |
| 1 | 274000839 | Rubber Isolator | 1 |
| 293100011 | Pvc Vinyl Tubing | ||
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 293720064 | GROMMET | ||
| 1 | 275500398 | Check Valve | 1 |
| 1 | 270000471 | HOSE 4.3 MM | 1 |
| 5 | 293650100 | Oetiker Clamp | 5 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 273000163 | INTAKE ADAPTOR, PTO | ||
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 272000074 | SPACER | 2 |
| 2 | 278001260 | UPPER INSULATOR | 2 |
| 2 | 207063560 | Hex. Screw M6 X 35 | 2 |
| 1 | 273000164 | INTAKE ADAPTOR, MAG | 1 |
| 1 | 273000151 | HIGH AIR DUCT, PTO | 1 |
| 273000150 | High Air Duct, Mag | ||
| 2 | 273000165 | PROTECTOR PAD | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 273000204 | SUPPORT PLATE | 1 |
| 293720052 | Cable Grommet | ||
| 2 | 293710068 | T-Fitting | 2 |
| 1 | 270600024 | FEMALE ADAPTOR | 1 |
| 1 | 250400015 | HAIR PIN | 1 |
| 270600052 | Throttle Body Ass'y Includes 44 - 70. | ||
| 270600026 | Lower Support (Throttle Body) | ||
| 270600045 | Upper Support Ass'y (Throttle Body) Includes 46 - 47. | ||
| 270600046 | Latch Bracket | ||
| 11 | 205051060 | Socket Head Screw M5 X 10 | 11 |
| 270600047 | Adjuster Screw | ||
| 270600048 | Spring | ||
| 270600053 | Throttle Body (PTO) Includes 51 - 59. | ||
| 270600034 | Throttle Lever Ass'y | ||
| 270600039 | Potentiometer Screw | ||
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 270600036 | Spring Guide | ||
| 270600037 | Spring | ||
| 1 | 270000251 | Position Sensor Includes 58 - 59. | 1 |
| 1 | 270000544 | O-Ring | 1 |
| 270600054 | Throttle Body (MAG) Includes 60 - 68. | ||
| 270600035 | Pick-Up Lever | ||
| 270600038 | Spring | ||
| 1 | 270000251 | Position Sensor Includes 66 - 67. | 1 |
| 270600049 | Idle Screw | ||
| 270600050 | Cover (Loctite Ultra Grey) | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 270600023 | AIR SILENCER ADAPTOR | 1 |
| 207341260 | Hex. Screw M4 X 12, Scotch Grip | ||
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 1 | 270600021 | INTAKE HOSE | 1 |
| 1 | 219704402 | Tubing 25 MM 1000MM Long | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 1 | 293650130 | Clamp, Tridon | 1 |
| 1 | 293650131 | Hose Clamp | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
