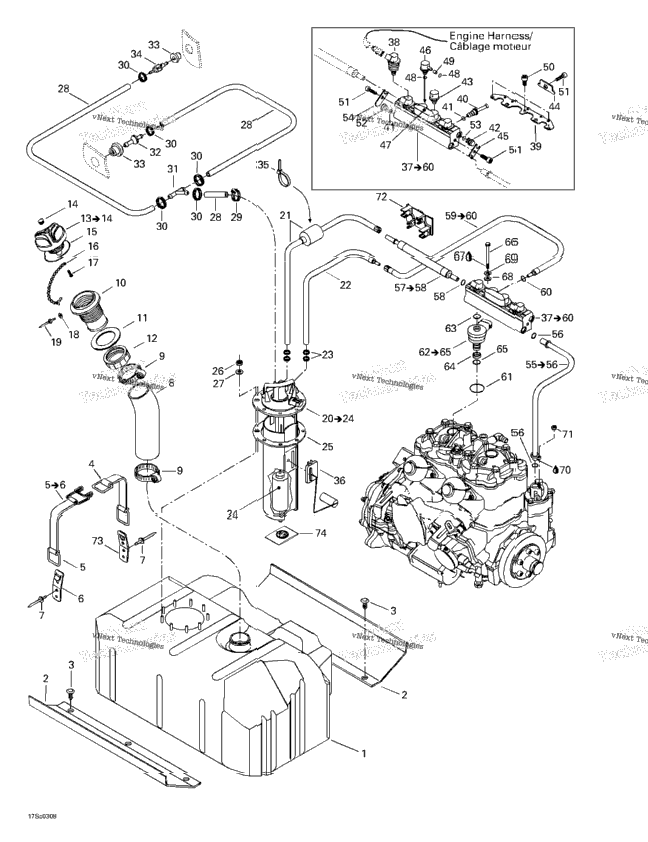

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 275500427 | Fuel Tank | ||
| 293830077 | Rubber Pad | ||
| 6 | 293730006 | Black, Dart | 6 |
| 3 | 293850036 | Fuel Tank Strap | 3 |
| 293850037 | FUEL TANK STRAP Includes 5 - 6. | ||
| 3 | 293850038 | Fuel Tank Strap | 3 |
| 3 | 293850024 | STRAP CLIP | 3 |
| 12 | 293150037 | Avdel Rivet 3/16" | 12 |
| 275500434 | Filler Neck Hose | ||
| 2 | 293650023 | Tridon Clamp | 2 |
| 1 | 275500231 | Filler Neck, Fuel | 1 |
| 1 | 293250029 | Gasket | 1 |
| 1 | 211100012 | Filler Neck Nut, Fuel | 1 |
| 1 | 275500430 | Fuel Tank Cap, Black Includes 13 - 14. | 1 |
| 1 | 293000034 | Black, Snap Cap | 1 |
| 1 | 293250075 | Gasket | 1 |
| 1 | 275500518 | Chain | 1 |
| 1 | 241140060 | Screw K40 X 10 | 1 |
| 1 | 234032600 | Flat Washer M3, Stainless | 1 |
| 1 | 390407900 | Pop Rivet 1/8" | 1 |
| 1 | 275500540 | Fuel Module Ass'y Includes 20 - 24. | 1 |
| 275500559 | Fuel Feeding Hose Ass'y | ||
| XXXX | Not Available As Spare Part - Fuel Return Hose Ass'y | ||
| 4 | 293650140 | Oetiker Clamp | 4 |
| XXXX | Not Available As Spare Part - Fuel Pump | ||
| 1 | 293250088 | Gasket | 1 |
| 9 | 232551200 | Elastic Stop Nut 5 mm | 9 |
| 9 | 234052400 | Flat Washer 5 mm, Stainless | 9 |
| 1 | 219704357 | Was 275500549 Hose 1/4" | 1 |
| 1 | 293650128 | Hose Clamp | 1 |
| 5 | 293650050 | Caillau Clic Clamp | 5 |
| 1 | 293710059 | Y-Fitting | 1 |
| 1 | 275500398 | Check Valve | 1 |
| 2 | 293720029 | Grommet | 2 |
| 1 | 275500505 | Check Valve | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 270600012 | Sensor Level | ||
| 275500613 | Fuel Distributor Includes 37 - 60. | ||
| 2 | 275500460 | Fuel Injector | 2 |
| 1 | 275500543 | RETAINER PLATE | 1 |
| 1 | 275500538 | AIR ADAPTER | 1 |
| 293300069 | O-RING | ||
| 1 | 275500595 | FUEL PLUG | 1 |
| 275500463 | Air Regulator | ||
| 1 | 275500456 | RETAINER PLATE | 1 |
| 1 | 275500596 | RETAINER PLATE | 1 |
| 1 | 275500464 | FUEL REGULATOR | 1 |
| 275500449 | Cover | ||
| 293300072 | O-Ring | ||
| 1 | 275500465 | SPACER | 1 |
| 205051260 | SOCKET HEAD SCREW M5 X 12 | ||
| 3 | 205061260 | Socket Head Screw M6 X 12 | 3 |
| 275500597 | AIR PLUG | ||
| 275500598 | O-Ring | ||
| 275500455 | RETAINER PLATE | ||
| 270600022 | Pressure Hose Includes 55 - 56. | ||
| 293300070 | O-Ring | ||
| 275500511 | Hose Ass'y (Fuel Return) Includes 57 - 58. | ||
| 275500519 | Hose Ass'y (Fuel Supply) Includes 59 - 60. | ||
| 293300083 | O-Ring | ||
| 2 | 275500545 | Air Injector Includes 62 - 65. | 2 |
| 293300084 | O-Ring | ||
| 2 | 270600030 | INJECTOR RING | 2 |
| 293300076 | O-Ring | ||
| 207087060 | HEX. SCREW M8 X 70 | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 2 | 234181601 | Lock Washer 8 mm, Stainless | 2 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 291001399 | Clamp Tie | ||
| 1 | 219700368 | Fuel Filter, Bosch | 1 |
