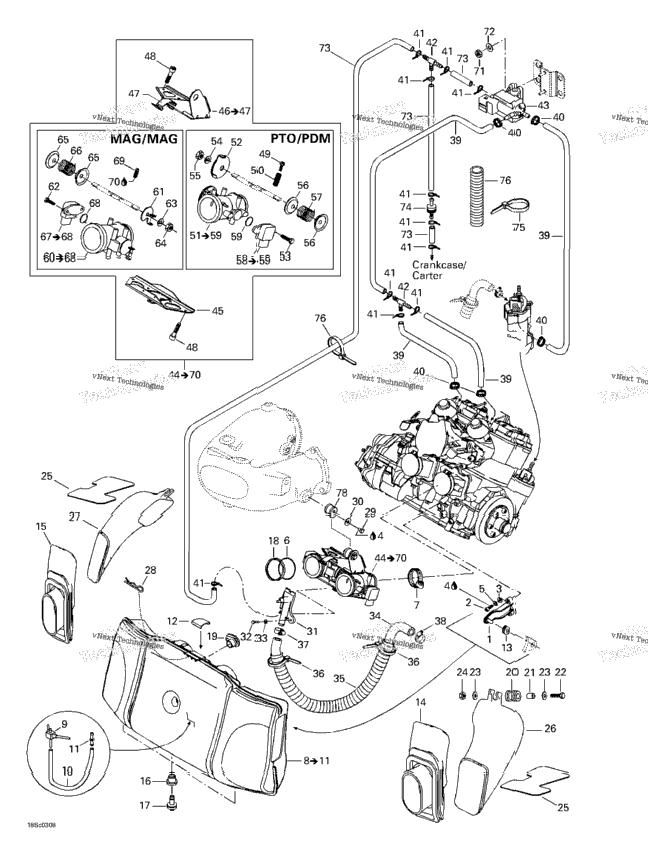

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 273000123 | Silencer Support | ||
| 2 | 205063560 | Socket Head Screw M6 X 35 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 293250065 | O-Ring | ||
| 2 | 293650079 | Norma Clamp | 2 |
| 273000209 | Air Silencer Includes 8 - 11. | ||
| XXXX | Not Available As Spare Part - Injector Ass'y (3 holes) | ||
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 1 | 273000181 | Connector | 1 |
| 1 | 273000204 | SUPPORT PLATE | 1 |
| 293720052 | Cable Grommet | ||
| 273000163 | INTAKE ADAPTOR, PTO | ||
| 1 | 273000164 | INTAKE ADAPTOR, MAG | 1 |
| 293720064 | GROMMET | ||
| 3 | 275500454 | CHECK VALVE | 3 |
| 2 | 293250122 | Gasket | 2 |
| 1 | 270600024 | FEMALE ADAPTOR | 1 |
| 2 | 278001260 | UPPER INSULATOR | 2 |
| 2 | 272000074 | SPACER | 2 |
| 2 | 207063560 | Hex. Screw M6 X 35 | 2 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 273000165 | PROTECTOR PAD | 2 |
| 1 | 273000151 | HIGH AIR DUCT, PTO | 1 |
| 273000150 | High Air Duct, Mag | ||
| 1 | 250400015 | HAIR PIN | 1 |
| 1 | 207181260 | HEX. SCREW M8 X 12 | 1 |
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 1 | 270600023 | AIR SILENCER ADAPTOR | 1 |
| 207341260 | Hex. Screw M4 X 12, Scotch Grip | ||
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 1 | 270600021 | INTAKE HOSE | 1 |
| 1 | 219704402 | Tubing 25 MM 1000MM Long | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 1 | 293650130 | Clamp, Tridon | 1 |
| 1 | 293650131 | Hose Clamp | 1 |
| 1 | 270000471 | HOSE 4.3 MM | 1 |
| 5 | 293650100 | Oetiker Clamp | 5 |
| 11 | 293750001 | Tie Wrap 94 mm | 11 |
| 2 | 293710068 | T-Fitting | 2 |
| 270600044 | SOLENOID VALVE | ||
| 270600058 | Throttle Body Includes 44 - 70. | ||
| 1 | 270600069 | LOWER SUPPORT | 1 |
| 270600070 | Support Ass'y Includes 46 - 47. | ||
| 1 | 270600073 | LATCH BRACKET | 1 |
| 11 | 205051060 | Socket Head Screw M5 X 10 | 11 |
| 1 | 270600074 | ADJUSTER SCREW | 1 |
| 270600075 | Spring | ||
| 1 | 270600076 | PRIMARY THROTTLE BODY Includes 51 - 59. | 1 |
| 270600077 | Throttle Lever Ass'y | ||
| 2 | 270600078 | POTENTIOMETER SCREW M4 | 2 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 2 | 270600079 | GUIDE SPRING | 2 |
| 270600080 | Spring | ||
| 1 | 270000251 | Position Sensor Includes 58 - 59. | 1 |
| 1 | 270000544 | O-Ring | 1 |
| 1 | 270600081 | SECONDARY THROTTLE BODY Includes 60 - 68. | 1 |
| 270600082 | Pick-Up Lever | ||
| 270600083 | Spring | ||
| 1 | 270000251 | Position Sensor Includes 67 - 68. | 1 |
| 1 | 270600084 | IDLE SCREW | 1 |
| 270600085 | Cover, Loctite Ultra Grey | ||
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 1 | 219704352 | Was 420660574 Pressure Hose 280 mm | 1 |
| 1 | 275500398 | Check Valve | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 293100011 | Pvc Vinyl Tubing | ||
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 274000839 | Rubber Isolator | 1 |
