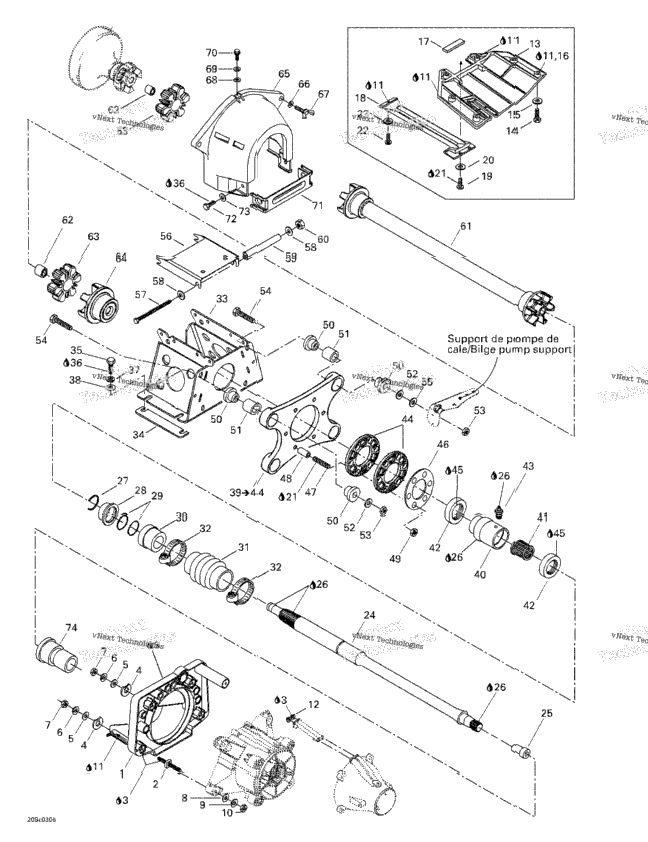

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 271001397 | Pump Support | ||
| 4 | 250300010 | Square Stud | 4 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 8 | 272000053 | Shim, 0.3 mm | 8 |
| 2 | 234001600 | Flat Washer 10 mm, Stainless | 2 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 4 | 234101601 | Helicoidal Lock Washer M10 | 4 |
| 4 | 232001600 | HEX. NUT M10 | 4 |
| 4 | 234002600 | Flat Washer 10 mm, Stainless | 4 |
| 1 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml | 1 |
| 3 | 293250084 | Watertight Seal | 3 |
| 271001229 | Riding Plate | ||
| 6 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 6 |
| 6 | 234081600 | Stainless, Flat Washer 8 mm | 6 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 271000763 | Pump Grate | ||
| 2 | 207161660 | Hex. Screw M6 X 16 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 1 |
| 1 | 234081600 | Stainless, Flat Washer 8 mm | 1 |
| 272000150 | Drive Shaft | ||
| 272000019 | DRIVE SHAFT PLUG | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 272000135 | C-CLIP | 1 |
| 1 | 272000064 | Support Ring | 1 |
| 2 | 293300032 | O-Ring | 2 |
| 1 | 272000770 | Carbon Ring | 1 |
| 1 | 272000184 | Bellows | 1 |
| 2 | 293650075 | Norma Clamp | 2 |
| 272000136 | Shaft Support | ||
| 272000166 | Shim | ||
| 4 | 207183060 | Hex. Screw M8 X 30 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 4 | 234181601 | Lock Washer 8 mm, Stainless | 4 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 272000048190 | Damping Support Includes 39 - 44. | ||
| 1 | 272000012400 | JOINT SUPPORT | 1 |
| 1 | 293350007 | NEEDLE BEARING SCE1416-L271/STD#E | 1 |
| 2 | 293200012 | DOUBLE LIP SEAL | 2 |
| 293550008 | GREASE FITTING | ||
| 272000049190 | Alignement Washer | ||
| 272000051 | Fixation Washer | ||
| 6 | 211300016 | STUD M6 X 30 | 6 |
| 2 | 271001319 | SPACER | 2 |
| 293880010 | Hex. Elastic Nut M6 | ||
| 293830031 | Rubber Bushing | ||
| 4 | 274000114 | Bushing | 4 |
| 4 | 232581600 | Hex. Elastic Nut M8 | 4 |
| 4 | 207084560 | Hex. Screw M8 X 45 | 4 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 272000139 | Shaft Guard | ||
| 1 | 230062060 | HEX. SCREW M6 X 120 | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 291000757 | SPACER | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 272000154 | TRANSMISSION SHAFT ASSY | 1 |
| 2 | 293900016 | SNAP BUSHING | 2 |
| 293830067 | RUBBER ADAPTOR | ||
| 1 | 272000158 | COUPLER ASSY | 1 |
| 272000130 | Flywheel Guard | ||
| 207982510 | Wing Screw M8 X 25 | ||
| 1 | 234051600 | Flat Washer M5, Stainless | 1 |
| 1 | 234151601 | Helical Lock Washer M5 | 1 |
| 1 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 1 |
| 1 | 291001228 | FRONT LOWER GUARD | 1 |
| 292000075 | HULL INSERT, 33 MM |
