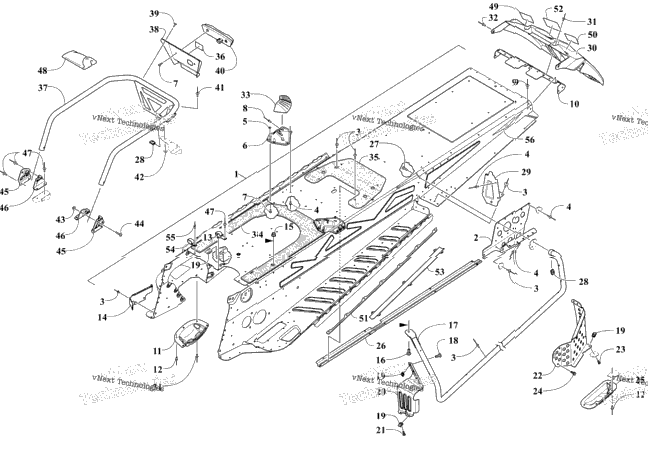

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 4707-024 | Tunnel Assembly (inc. 2-10, 29, and the Front Frame) | 1 |
| 1 | 3707-008 | Bracket, Mounting - Suspension - Right - Black | 1 |
| 1 | 3707-009 | Bracket, Mounting - Suspension - Left - Black | 1 |
| 1 | 8060-686 | Rivet - Zinc | 1 |
| 1 | 1623-241 | Rivet | 1 |
| 6 | 8422-502 | Nut, Lock | 6 |
| 1 | 1707-692 | Bracket, Mounting - Rear Spar - Right - Black | 1 |
| 1 | 1707-693 | Bracket, Mounting - Rear Spar - Left - Black | 1 |
| 8 | 8475-512 | Screw, Machine | 8 |
| 1 | 1623-257 | Rivet | 1 |
| 1 | 2623-221 | Rivet | 1 |
| 1 | 2707-855 | End Cap, Tunnel - Black | 1 |
| 1 | 1607-109 | Protector, Chain Case | 1 |
| 8 | 8061-708 | Rivet | 8 |
| 1 | 0645-709 | Clip, Routing | 1 |
| 1 | 0608-705 | Bracket, Routing - Oil Line | 1 |
| 2 | 8427-802 | Nut, Lock | 2 |
| 2 | 8476-820 | Screw, Machine | 2 |
| 1 | 2707-858 | Support, Footrest - Right - Black | 1 |
| 1 | 2707-859 | Support, Footrest - Left - Black | 1 |
| 4 | 8468-535 | Screw, Machine | 4 |
| 9 | 1623-637 | Clip, U-Nut | 9 |
| 1 | 1707-556 | Footrest - Right - Black | 1 |
| 1 | 1707-557 | Footrest - Left - Black | 1 |
| 4 | 8470-516 | Screw, Machine | 4 |
| 1 | 1707-955 | Shield, Brake Disc - Black | 1 |
| 1 | 8470-520 | Screw, Machine | 1 |
| 2 | 8408-613 | Screw, Cap | 2 |
| 1 | 0607-351 | Protector, Brake Disc | 1 |
| 1 | 0630-292 | Protector, Taillight Harness | 1 |
| 2 | 8477-620 | Screw, Machine | 2 |
| 4 | 0423-577 | Clip, U-Nut | 4 |
| 1 | 2707-636 | Close Off, Running Board - Right - Black | 1 |
| 1 | 2707-637 | Close Off, Running Board - Left - Black | 1 |
| 1 | 6606-486 | Snowflap | 1 |
| 5 | 8061-706 | Rivet | 5 |
| 2 | 8061-506 | Rivet | 2 |
| 1 | 6606-664 | Support, Gas Tank - Right | 1 |
| 1 | 6606-665 | Support, Gas Tank - Left | 1 |
| 1 | 0617-781 | Seal, Foam | 1 |
| 1 | 7606-436 | Pad, Fuel Tank | 1 |
| 1 | 2621-928 | Decal, Capacity - Storage Box | 1 |
| 1 | 2707-745 | Rack, Rear - Black | 1 |
| 1 | 2707-564 | Cover, Taillight - Rack - Black | 1 |
| 4 | 2623-166 | Screw, Self-Tapping | 4 |
| 1 | 0609-898 | Taillight, LED | 1 |
| 4 | 8060-488 | Rivet, Blind | 4 |
| 2 | 0123-149 | Washer, Flat | 2 |
| 2 | 8427-602 | Nut, Hex | 2 |
| 2 | 8468-635 | Screw, Machine | 2 |
| 1 | 5706-450 | Bracket, Mounting - Rack - Outer - Right - Black | 1 |
| 1 | 5706-451 | Bracket, Mounting - Rack - Outer - Left - Black | 1 |
| 1 | 5706-448 | Bracket, Mounting - Rack - Inner - Right - Black | 1 |
| 1 | 5706-449 | Bracket, Mounting - Rack - Inner - Left - Black | 1 |
| 1 | 8060-706 | Rivet | 1 |
| 1 | 0744-103 | Kit, Tool | 1 |
| 1 | 5611-853 | Decal, Warning - Towing (English) | 1 |
| 1 | 5611-852 | Decal, Warning - Towing (French) | 1 |
| 1 | 3621-900 | Decal, Towing Capacity | 1 |
| 1 | 0630-382 | Protector, Harness - Taillight Extension | 1 |
| 1 | 1623-762 | Clamp, Routing | 1 |
| 1 | 8061-686 | Rivet | 1 |
| 2 | 0621-991 | Decal, Reflector - Red | 2 |
