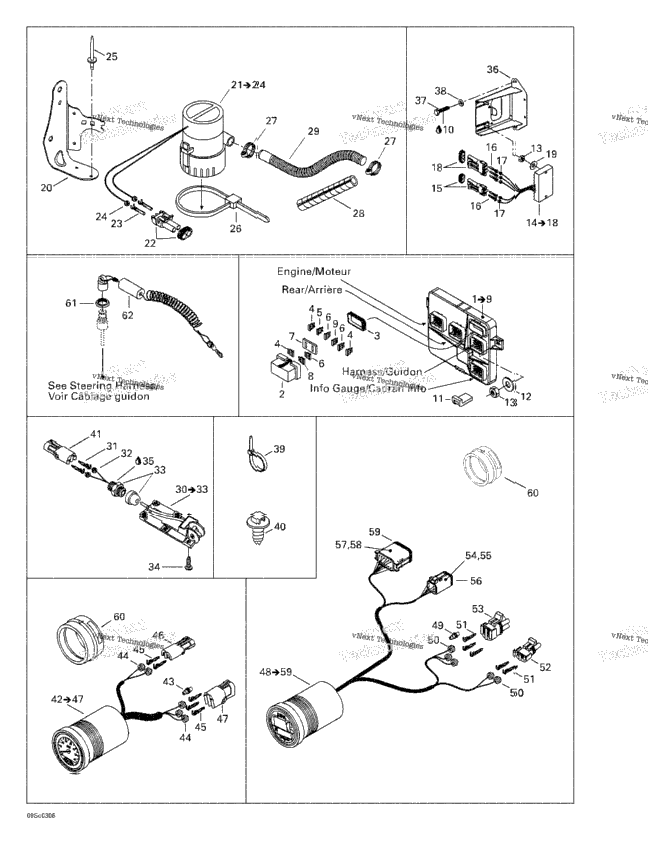

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 278001895 | ELECTRONIC MODULE Includes 1 - 9. | 1 |
| XXXX | Not Available As Spare Part - Fuse cover | ||
| 278001070 | Cover Seal | ||
| 3 | 278000343 | Fuse, 15 Amperes | 3 |
| 1 | 278001442 | FUSE, 2 AMPERES | 1 |
| 3 | 278001443 | Fuse, 25 Amperes | 3 |
| 278001719 | COVER BUSHING | ||
| 1 | 410917200 | Fuse, 30 Amperes | 1 |
| 1 | 278000704 | FUSE, 7.5 AMPERES | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 278001166 | MODULE PROTECTOR | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 1 | 278001554 | Rectifier Ass’Y Includes 14 - 18. | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 5 | 409007300 | Female Terminal | 5 |
| 5 | 278000218 | Wire Seal | 5 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 271000897 | BILGE SUPPORT | 1 |
| 1 | 278001176 | Bilge Pump Includes 21 - 24. | 1 |
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 2 | 293150059 | Pop-Rivet 5/32 | 2 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 2 | 293650130 | Clamp, Tridon | 2 |
| 3 | 219704402 | Tubing 25 MM 1000MM Long | 3 |
| 1 | 291001206 | BILGEFLEX HOSE 3/4, BLACK, METER | 1 |
| 278001668 | Speed Sensor Includes 30 - 33. | ||
| XXXX | Not Available As Spare Part - Male terminal | ||
| XXXX | Not Available As Spare Part - Wire seal | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 6 | 250000020 | Phillips Screw M5 X 10 | 6 |
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 278001888 | Support | ||
| 243042060 | Hex. Plastite Screw M4, 8 X 20 | ||
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 8 | 293750002 | Tie Wrap 142 mm | 8 |
| 11 | 414115200 | Tie-Rap 180 mm | 11 |
| 3 | 293730018 | Mount Dart | 3 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 278001822 | SPEEDOMETER Includes 42 - 47. | ||
| 1 | 278000216 | Wire Seal | 1 |
| 5 | 278001065 | Wire Seal | 5 |
| 5 | 278000222 | Male Terminal | 5 |
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 278001883 | LCD Gauge Includes 48 - 59. | ||
| 5 | 278000223 | Female Terminal | 5 |
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 1 | 278000737 | MALE LOCK, 6 CIRCUITS | 1 |
| 6 | 278001665 | Female Terminal | 6 |
| 1 | 278000736 | Male Connector, 6 Circuits | 1 |
| 1 | 409015700 | Female Lock, 12 Circuits | 1 |
| 12 | 278001665 | Female Terminal | 12 |
| 1 | 409015900 | Female Terminal Housing, 12 Circuits | 1 |
| 293720047 | Gauge Support | ||
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 278001578 | Lanyard Safety | 1 |
