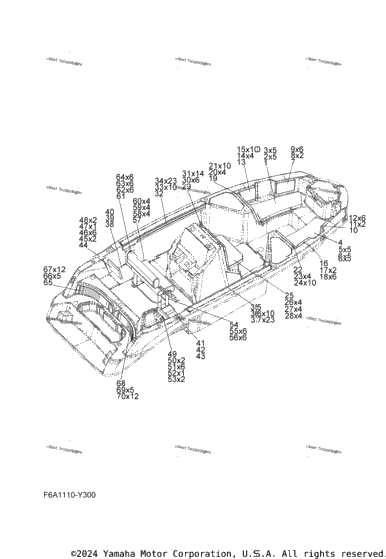

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | F6A-U35A1-00-00 | Cushion, Fore 1 UR FOR PBCB | 1 |
| 1 | F6A-U35A1-10-00 | Cushion, Fore 1 UR FOR LNC3 | 1 |
| 5 | F1C-U5192-00-00 | Snap | 5 |
| 5 | 90202-06SA3-00 | Washer, Plate | 5 |
| 1 | F6A-U35A2-00-00 | Cushion Seat, Front Right UR FOR PBCB | 1 |
| 1 | F6A-U35A2-10-00 | Cushion Seat, Front Right UR FOR LNC3 | 1 |
| 1 | F6A-U36B1-00-00 | Pad 10 UR FOR PBCB | 1 |
| F6A-U36B1-10-00 | Pad 10 UR FOR LNC3 | ||
| 2 | F1C-U5195-00-00 | Clip, 1 | 2 |
| 6 | 90167-08SA8-00 | Screw, Tapping | 6 |
| 1 | F6A-U36B2-00-00 | Pad 11 UR FOR PBCB | 1 |
| F6A-U36B2-10-00 | Pad 11 UR FOR LNC3 | ||
| 1 | F6A-U36A3-00-00 | Pad 3 UR FOR PBCB | 1 |
| F6A-U36A3-10-00 | Pad 3 UR FOR LNC3 | ||
| 4 | F1C-U5195-00-00 | Clip, 1 | 4 |
| 10 | 90167-08SA8-00 | Screw, Tapping | 10 |
| 1 | F6A-U36A4-00-00 | Pad 4 UR FOR PBCB | 1 |
| F6A-U36A4-10-00 | Pad 4 UR FOR LNC3 | ||
| 3 | F1C-U5195-00-00 | Clip, 1 | 3 |
| 8 | 90167-08SA8-00 | Screw, Tapping | 8 |
| 1 | F6A-U379A-00-00 | Back Rest 6 UR FOR PBCB | 1 |
| 1 | F6A-U379A-10-00 | Back Rest 6 UR FOR LNC3 | 1 |
| 1 | F6A-U379B-00-00 | Back Rest 7 UR FOR PBCB | 1 |
| F6A-U379B-10-00 | Back Rest 7 UR FOR LNC3 | ||
| 1 | F6H-U3724-00-00 | Cushion Seat, Rear UR FOR LNC3 | 1 |
| 1 | F6H-U3724-10-00 | Cushion Seat, Rear UR FOR PBCB | 1 |
| 4 | 90209-14SA3-00 | Washer | 4 |
| 4 | 90204-14S00-00 | Washer, Spring | 4 |
| 4 | 90170-14S00-00 | Nut | 4 |
| 1 | F6H-U3766-00-00 | Backrest 1 UR FOR LNC3 | 1 |
| 1 | F6H-U3766-10-00 | Backrest 1 UR FOR PBCB | 1 |
| 6 | F1C-U5195-00-00 | Clip, 1 | 6 |
| 14 | 90167-08SA8-00 | Screw, Tapping | 14 |
| 1 | F6A-U36A1-00-00 | Pad 1 UR FOR PBCB | 1 |
| 1 | F6A-U36A1-10-00 | Pad 1 UR FOR LNC3 | 1 |
| 10 | F1C-U5195-00-00 | Clip, 1 | 10 |
| 23 | 90167-08SA8-00 | Screw, Tapping | 23 |
| 1 | F6A-U36A2-00-00 | Pad 2 UR FOR PBCB | 1 |
| F6A-U36A2-10-00 | Pad 2 UR FOR LNC3 | ||
| 1 | F6A-U371D-00-00 | Cushion 1 UR FOR PBCB | 1 |
| 1 | F6A-U371D-10-00 | Cushion 1 UR FOR LNC3 | 1 |
| 1 | F1C-U5192-00-00 | Snap | 1 |
| 1 | 90202-06SA3-00 | Washer, Plate | 1 |
| 1 | F6A-U371E-10-00 | Cushion 2 UR FOR LNC3 | 1 |
| 1 | F6A-U371E-00-00 | Cushion 2 UR FOR PBCB | 1 |
| F6A-U3791-10-00 | Back Rest 1 UR FOR LNC3 | ||
| 1 | F6A-U3791-00-00 | Back Rest 1 UR FOR PBCB | 1 |
| 1 | F2D-U1543-00-00 | Eye Strap | 1 |
| 2 | F1C-U5192-00-00 | . Snap | 2 |
| 1 | F6A-U3795-00-00 | Back Rest 2 UR FOR PBCB | 1 |
| 1 | F6A-U3795-10-00 | Back Rest 2 UR FOR LNC3 | 1 |
| 1 | F6A-U3712-00-00 | Base, Driver Seat UR FOR LNC3 | 1 |
| F6A-U3712-10-00 | Base, Driver Seat UR FOR PBCB | ||
| 6 | 90152-14S20-00 | Screw, Countersunk | 6 |
| 6 | 90209-14SA6-00 | Washer | 6 |
| 1 | F6A-U142E-10-00 | Cushion, Pad 1 UR FOR LNC3 | 1 |
| 1 | F6A-U142E-00-00 | Cushion, Pad 1 UR FOR PBCB | 1 |
| 5 | 90170-14S00-00 | Nut | 5 |
| 5 | 90204-14S00-00 | Washer, Spring | 5 |
| 5 | 90209-14SA3-00 | Washer | 5 |
| 1 | F6A-U3796-00-00 | Back Rest 3 UR FOR PBCB | 1 |
| 1 | F6A-U3796-10-00 | Back Rest 3 UR FOR LNC3 | 1 |
| 6 | 90151-14S16-00 | Screw, Countersunk | 6 |
| 6 | 90209-14SA2-00 | Washer | 6 |
| 6 | 90185-14S00-00 | Nut, Self-Locking | 6 |
| F6A-U521C-10-00 | Pad 1 UR FOR LNC3 | ||
| 1 | F6A-U521C-00-00 | Pad 1 UR FOR PBCB | 1 |
| 5 | F1C-U5195-00-00 | Clip, 1 | 5 |
| 12 | 90167-08SA8-00 | Screw, Tapping | 12 |
| 1 | F6A-U521D-00-00 | Pad 2 UR FOR PBCB | 1 |
| 1 | F6A-U521D-10-00 | Pad 2 UR FOR LNC3 | 1 |
