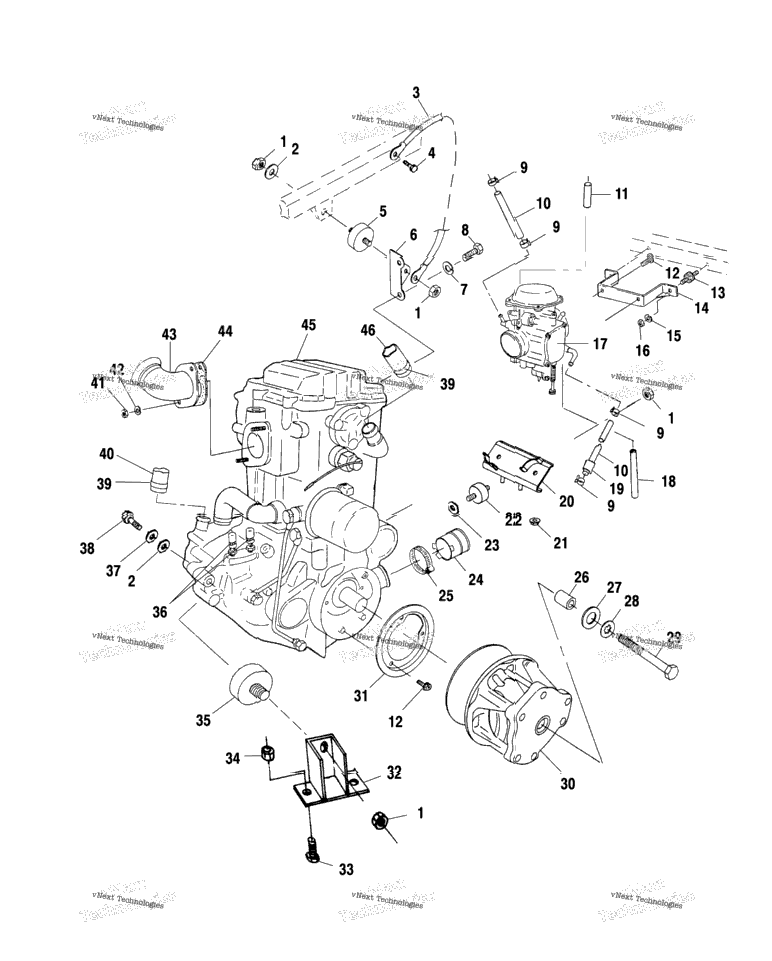

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 6 | 7547108 | NUT | 6 |
| 3 | 7555823 | WASHER | 3 |
| 4010132 | CABLE,GND-ENGINE | ||
| 1 | 7512315 | BOLT | 1 |
| 1 | 3110044 | ENGINE MOUNT ISOLATOR | 1 |
| 5242674-067 | BRKT,ENG.MT,TOP,BLK | ||
| 2 | 7552901 | SPRING LOCK WASHER | 2 |
| 2 | 7512315 | BOLT | 2 |
| 4 | 7080003 | HOSE CLAMP | 4 |
| 1 | 8450040-600 | FUEL LINE, 600 CM | 1 |
| 1 | 8450003-1525 | FUEL LINE, 1/4 ID | 1 |
| 3 | 3084205 | SCREW AND WASHER | 3 |
| 2 | 3110032 | MOUNT, RUBBER | 2 |
| 5242258-067 | Discontinued | ||
| 2 | 7552605 | WASHER | 2 |
| 2 | 7542105 | HEX NUT | 2 |
| ------- | Asm., Carburetor (See Carburetor Pg. D4, Ref. 18) | ||
| 1 | 8360009-600 | LINE,FUEL,1/8 ID,600 CM. | 1 |
| 1 | 8450080-58 | REFLECT SLEEVE SHEATH, 16 MM X | 1 |
| 1 | 1013222-067 | MOUNT,ENGINE,REAR,500,BLK | 1 |
| 2 | 7547089 | NUT-3/8-16 FLG LOCK-Y | 2 |
| 3110046 | Discontinued | ||
| 2 | 7555815 | FLAT WASHER | 2 |
| 1 | 5410421 | CLUTCH INTAKE BOOT | 1 |
| 1 | 7080511 | NARROW BAND CLAMP | 1 |
| 1 | 5430261 | BUSHING | 1 |
| 1 | 5210748 | WASHER | 1 |
| 1 | 7575202 | WASHER LOCK | 1 |
| 1 | 7512566 | BOLT | 1 |
| ------- | Asm., Drive Clutch, ATV-06 (See Drive Clutch Pg. B11, Ref. 14) | ||
| ------- | Bracket, Retainer, Seal (See Clutch Cover Pg. C5, Ref. 19) | ||
| 1040688-067 | MOUNT,FR.ENGINE,BLK. | ||
| 2 | 7515398 | SCREW | 2 |
| 2 | 7542324 | NYLOK NUT | 2 |
| 3110067 | MOUNT,MOTOR | ||
| 2 | 7080474 | HOSE CLAMP | 2 |
| 1 | 7552603 | SPRING LOCK WASHER | 1 |
| 1 | 7515438 | BOLT | 1 |
| 2 | 7080696 | CLAMP,HOSE,1.25,WORM DRIVE | 2 |
| ------- | Hose, Engine, Lower (See Cooling System Pg. A7, Ref. 12) | ||
| ------- | Nut (See Cylinder Pg. C14, Ref. 23) | ||
| ------- | Washer, Lock (See Cylinder Pg. C14, Ref. 22) | ||
| 1 | 1260994-029 | MANIFOLD WELD HIGH TEMP POWER P | 1 |
| ------- | Gasket, Exhaust (See Cylinder Pg. C14, Ref. 20) | ||
| 3085822 | N/A,USE COMPONENTS (EH50PLE04) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required for warranty consideration. | ||
| ------- | Hose, Engine, Upper (See Cooling System Pg. A7, Ref. 13) |
