Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

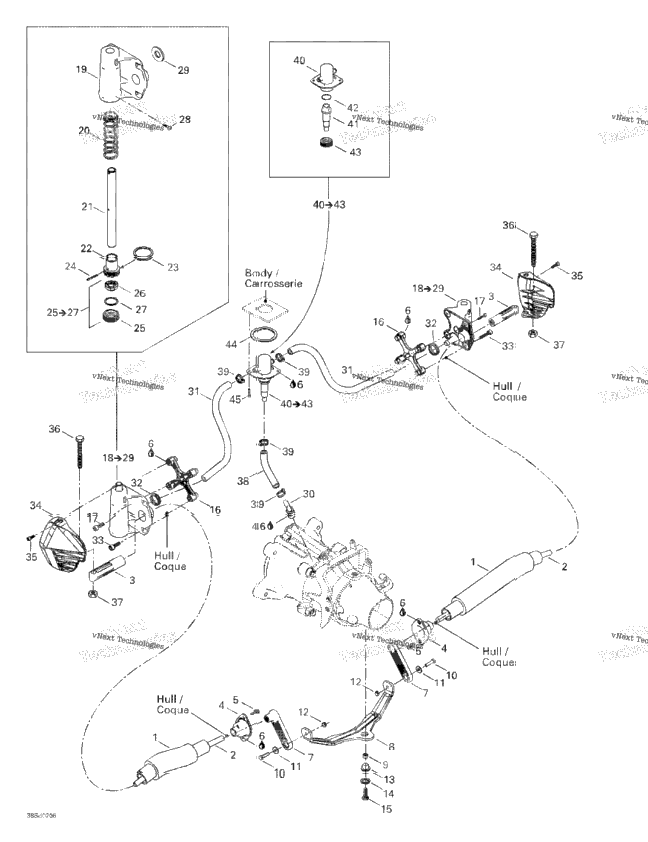

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 277001018 | Sealed Tube | 2 |
| 1 | 277001063 | RH TIE ROD | 1 |
| 1 | 277000976 | LH TIE ROD | 1 |
| 2 | 277000998 | Stabiliser Fitting | 2 |
| 277000977 | ROD GROMMET | ||
| 4 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 4 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 2 | 277000978 | Lever | 2 |
| 1 | 277000979 | U LEVER | 1 |
| 1 | 271000321 | Venturi Bushing | 1 |
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 2 | 293900042 | FLANGED BUSHING | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 277000980 | Bushing | 1 |
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 1 | 207382060 | Hex. Screw M8 X 20, Scotch Grip | 1 |
| 277000981 | Support Plate | ||
| 2 | 241142560 | Hex. Flange Screw K40 X 25 | 2 |
| XXXX | Not Available As Spare Part - Cylinder Support Ass'y R.H Includes 18 - 29. | ||
| XXXX | Not Available As Spare Part - Cylinder Support Ass'y L.H | ||
| 277001106 | CYLINDER SUPPORT R.H | ||
| 277001105 | CYLINDER SUPPORT L.H | ||
| 2 | 277000962 | SPRING | 2 |
| 2 | 277001091 | Pivot Rod | 2 |
| 277000965 | Piston | ||
| 277000983 | Split Ring | ||
| 2 | 250400014 | Spring Pin | 2 |
| 277001081 | COVER ASS'Y Includes 25 - 27. | ||
| XXXX | Not Available As Spare Part - Threaded Cover | ||
| XXXX | Not Available As Spare Part - Wear Ring | ||
| XXXX | Not Available As Spare Part - Split Ring | ||
| 2 | 209630960 | PHILLIPS SCREW M3.9 X 9.5 | 2 |
| 2 | 293250119 | SEAL | 2 |
| 271001298 | ELBOW ASSY | ||
| 1 | 219704394 | Was 276000001 Hose 12.5 mm | 1 |
| 2 | 293650123 | OETIKER CLAMP | 2 |
| 8 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 8 |
| 277000960 | Side Vane R.H | ||
| 277000959 | Side Vane L.H | ||
| 2 | 205541660 | Socket Screw M4 X 16 (Scotch Grip) | 2 |
| 250000077 | HEX. SCREW M8 X 110 | ||
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 276000101 | Formed Hose | ||
| 4 | 293650130 | Clamp, Tridon | 4 |
| 277000999 | Valve Housing Includes 40 - 43. | ||
| 277000990 | Valve Housing | ||
| 277000996 | Piston | ||
| 414542700 | O-Ring | ||
| 277000967 | Threaded Cover | ||
| 293250120 | Seal | ||
| 2 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 2 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
