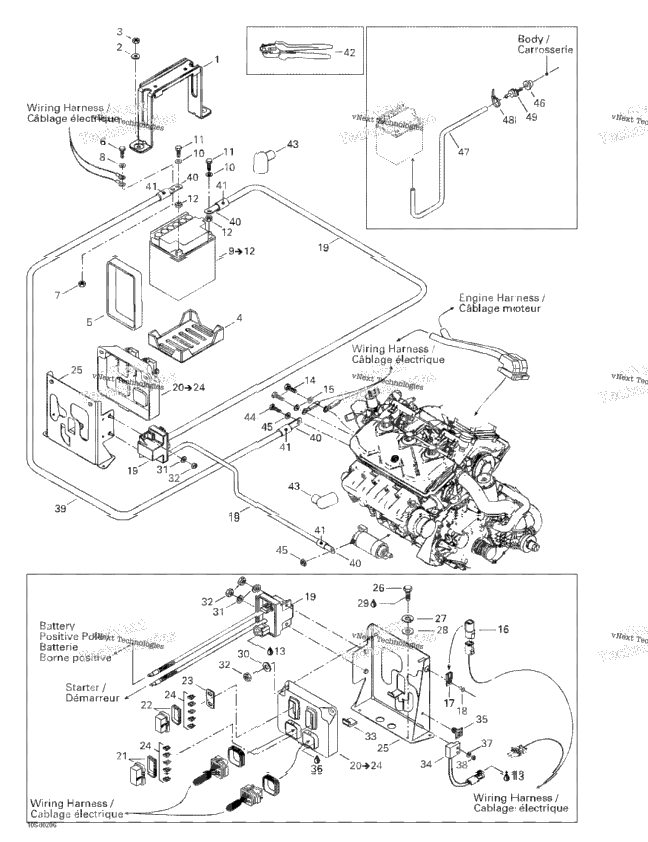

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001677 | BATTERY SUPPORT | ||
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 278001582 | LOWER BATTERY PAD | ||
| 1 | 278001764 | BATTERY STRAP 337 MM | 1 |
| 1 | 207161260 | Hex. Cap Screw M6 X 12 | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 278001763 | Battery Includes 9 - 12. | 1 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 2 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 278001725 | Diagnostic Connect Cap | 1 |
| 1 | 270000141 | Clip | 1 |
| 1 | 204000081 | Pop Rivet 3/16" | 1 |
| 278001767 | STARTER RELAY Includes 40,41 | ||
| 278001753 | Electronic Module Ass'y Includes 20 - 24. | ||
| 1 | 278001618 | Fuse Holder Cover | 1 |
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001719 | COVER BUSHING | ||
| 1 | 409012800 | FUSE, 1 AMPERE | 1 |
| 278000250 | Fuse 2 Amperes | ||
| 278001196 | FUSE, 3 AMPERES | ||
| 3 | 278000344 | Fuse, 5 Amperes | 3 |
| 1 | 278000704 | FUSE, 7.5 AMPERES | 1 |
| 5 | 278001197 | Fuse, 10 Amperes | 5 |
| 278001693 | Module Support | ||
| 243042060 | Hex. Plastite Screw M4, 8 X 20 | ||
| 4 | 211200043 | WASHER-LOCK IMPERIAL | 4 |
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 1 | 278001166 | MODULE PROTECTOR | 1 |
| 278001547 | T.O.P.S. SWITCH | ||
| 278001775 | Self-Locking Clip | ||
| 1 | 293550015 | Deoxit Lubricant, Spray | 1 |
| 278001611 | Battery Ground Cable Ass'y Includes 40, 41 | ||
| XXXX | Not Available As Spare Part - Terminal 30 Deg. (2 Holes) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45 Deg. (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90 Deg. (Small Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45 Deg. (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90 Deg. (Big Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal | ||
| XXXX | Not Available As Spare Part - Heat Shrink | ||
| XXXX | Not Available As Spare Part - Crimp Plier | ||
| 2 | 278001771 | Protector Cap | 2 |
| 1 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 1 |
| 250100036 | Elastic Flange Stop Nut M6 | ||
| 1 | 293720029 | Grommet | 1 |
| 275500446 | HOSE 6 MM | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 275500499 | CHECK VALVE |
