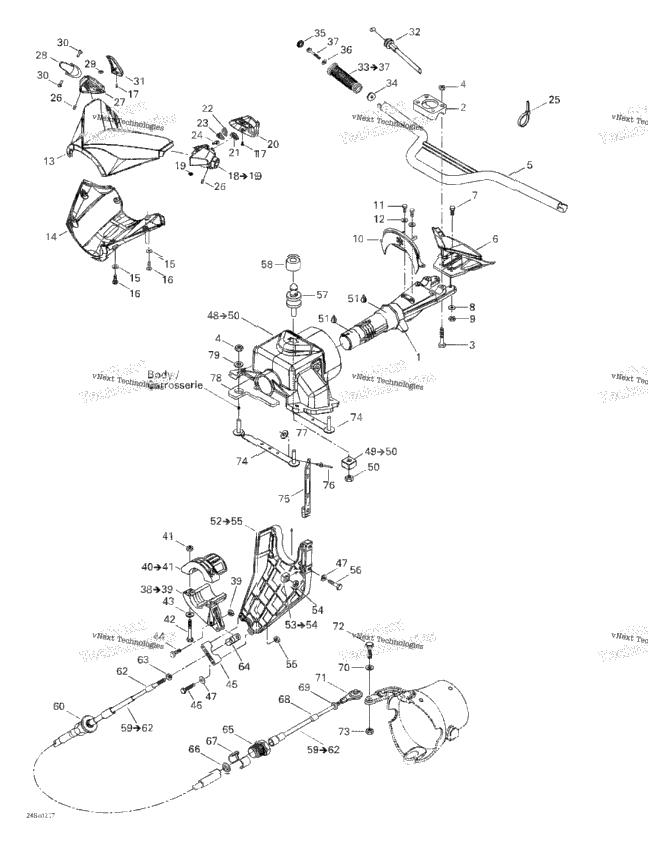

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277000562400 | Steering Stem | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 207085060 | Hex. Screw M8 X 50 | 4 |
| 4 | 232581650 | Elastic Stop Nut M8 | 4 |
| 277001012 | Handle Bar | ||
| 277000950 | Handle Pad (Jade) GTX DI 5563/5564. | ||
| 277001078 | Handle Pad (Blue) GTX DI 5595/5596. | ||
| 2 | 207063060 | Hex. Screw M6 X 30 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 277000549 | PLATE | 1 |
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 277000952 | UPPER STEERING COVER, BLACK | 1 |
| 277000953 | Lower Steering Cover | ||
| 6 | 234051600 | Flat Washer M5, Stainless | 6 |
| 6 | 241141660 | Hex. Flange Screw K40 X 16 | 6 |
| 2 | 209630960 | PHILLIPS SCREW M3.9 X 9.5 | 2 |
| 1 | 277000954 | Housing Ass'y Includes 18 - 19. | 1 |
| 1 | 232860600 | SQUARE NUT M6 | 1 |
| 277001025 | LH Cover Housing | ||
| 1 | 278001713 | Stop Knob | 1 |
| 278001714 | MODE KNOB | ||
| 1 | 278001715 | SET KNOB | 1 |
| 277001069 | U Bracket | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 2 | 250000036 | Socket Head Screw M6 X 16 | 2 |
| 277000955 | Throttle Handle Housing | ||
| 1 | 277001107 | Throttle Handle | 1 |
| 2 | 277000381 | PIN | 2 |
| 1 | 277001023 | THROTTLE HOUSING COVER | 1 |
| 277000851 | Throttle Cable | ||
| 1 | 295500691 | HANDLE GRIP KIT, BLACK Includes 33 - 37. | 1 |
| XXXX | Not Available As Spare Part - Grip Insert | ||
| 2 | 277000203 | Black, Cap | 2 |
| 2 | 250000002 | Hex. Screw M6 X 30, Scotch Grip | 2 |
| 277000518 | Steering Stem Arm Includes 38 - 39. | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 277000519 | Arm Thrust Includes 40 - 41. | ||
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 1 | 211000081 | Hex. Screw M6 X 30 | 1 |
| 1 | 277000162 | Support Thrust | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 5 | 234061600 | Stainless, Flat Washer M6 | 5 |
| 1 | 277000898 | Steering Support Includes 48 - 50. | 1 |
| 271001115 | Nut Housing Ass’Y Includes 49 - 50. | ||
| 1 | 232001600 | HEX. NUT M10 | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 277000516 | CABLE SUPPORT Includes 52 - 55. | ||
| 3 | 269500252 | M6 Nut Housing Ass'y Includes 53 - 54. | 3 |
| 3 | 232061600 | Hex. Nut M6 | 3 |
| 3 | 207162060 | Hex. Forming Screw M6 X 20 | 3 |
| 291001420 | Latch Stud | ||
| 1 | 293830078 | RUBBER PAD | 1 |
| 277000949 | Steering Cable Ass’Y Includes 59 - 62. | ||
| 1 | 277000782 | Ajustment Knob | 1 |
| 1 | 211100056 | Hex. Nut 1/4"-28 | 1 |
| 1 | 277000441 | Terminal Wiper | 1 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 1 | 277000774 | Joint | 1 |
| 1 | 277000784 | Steering Cable Lock | 1 |
| 1 | 293830063 | Rubber Washer | 1 |
| 2 | 277000783 | Half-Ring | 2 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 277000775 | Ball Joint | 1 |
| 1 | 207063560 | Hex. Screw M6 X 35 | 1 |
| 2 | 277001072 | STEERING SUPPORT | 2 |
| 291001760 | Hose Support | ||
| 1 | 293150026 | RIVET_POP 1/8 | 1 |
| 1 | 234032600 | Flat Washer M3, Stainless | 1 |
| 1 | 293250068 | Gasket | 1 |
