Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

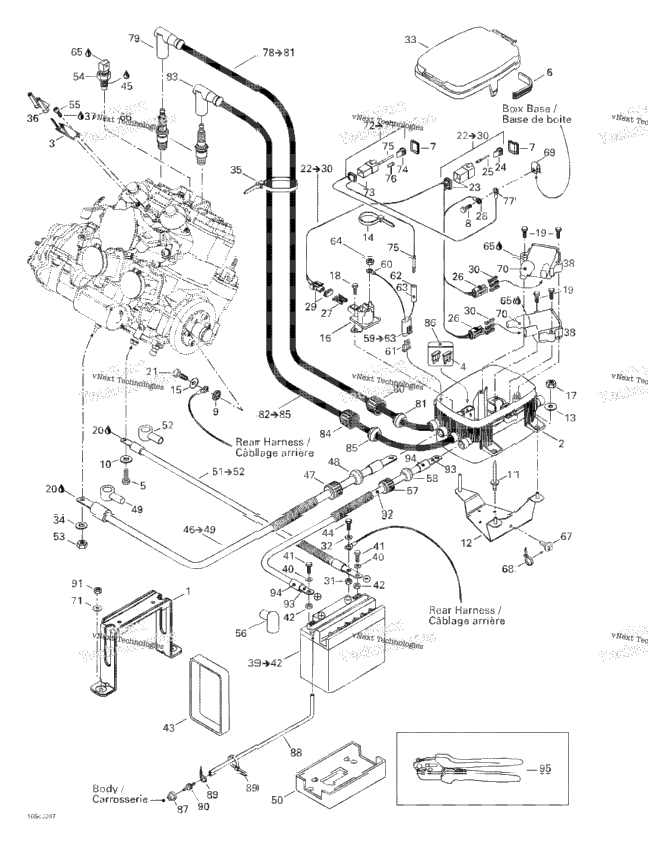

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001677 | BATTERY SUPPORT | ||
| 278001760 | Electric Box Base | ||
| 1 | 278001662 | GROUND PLATE | 1 |
| 1 | 278001443 | Fuse, 25 Amperes | 1 |
| 1 | 278000343 | Fuse, 15 Amperes | 1 |
| 1 | 207302060 | Hex. Screw M10 X 20, Scotch Grip | 1 |
| 278001173 | GASKET | ||
| 293200030 | Gasket | ||
| 1 | 207361660 | Hex. Screw M6 X 16, Scotch Grip | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 234001600 | Flat Washer 10 mm, Stainless | 1 |
| 3 | 293150037 | Avdel Rivet 3/16" | 3 |
| 278001487 | Electric Box Support | ||
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 234061600 | Stainless, Flat Washer M6 | 1 |
| 1 | 278001766 | Starter Relay | 1 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 4 | 209463840 | SCREW-TAPP.HEX.ISO.1479F | 4 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 1 |
| 278001458 | Box Harness Includes 22 - 30. | ||
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 6 | 278000631 | Male Terminal | 6 |
| 2 | 278001467 | MALE TERMINAL HOUSING, 3 CIRCUITS | 2 |
| 2 | 278001114 | Female Terminal | 2 |
| 1 | 278001392 | Open Barrel Terminal | 1 |
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 6 | 278001468 | FEMALE TERMINAL | 6 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 278001433 | ELECTRIC BOX COVER | 1 |
| 1 | 278001512 | INSULATOR | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 278001451 | IGNITION COIL | ||
| 1 | 278001756 | Battery 19A Includes 39 - 42. | 1 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 278001765 | Battery Strap 297mm | ||
| 1 | 207161260 | Hex. Cap Screw M6 X 12 | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 278001457 | STARTER CABLE (RED) Includes 46 - 49. | ||
| 278000100 | Electric Wire Cap | ||
| 278000098 | GROMMET | ||
| 1 | 278000020 | PROTECTION CAP | 1 |
| 278001746 | Lower Battery Pad | ||
| 278001462 | Ground Cable, Black Includes 51 - 52. | ||
| 278001491 | Wire Cap (Black) | ||
| 1 | 278001016 | Temperature Sensor | 1 |
| 4 | 205062560 | Socket Head Screw M6 X 25 | 4 |
| 278001453 | Fuse Harness, 30 Amperes Includes 59 - 63. | ||
| 1 | 410917200 | Fuse, 30 Amperes | 1 |
| 1 | 515175260 | FEMALE TERMINAL | 1 |
| 515175259 | Deutsch Joint Housing | ||
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 278001650 | Spark Plug NGK Zfr4f-11 | 2 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 250100029 | U Type Nut M6 | ||
| 2 | 278001470 | PROTECTOR CAP | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 1 | 278001494 | ELECTRIC BOX HARNESS ASS'Y Includes 72 - 77. | 1 |
| 1 | 278001477 | FEMALE HOUSING, 4 CIRCUITS | 1 |
| 1 | 278001478 | MALE WEDGE, 4 CIRCUITS | 1 |
| 3 | 515175261 | MALE TERMINAL | 3 |
| 2 | 293000052 | Sealing Cap | 2 |
| 1 | 278001454 | COIL CABLE, 735 MM Includes 78 - 81. | 1 |
| 278001452 | Spark Plug Cap | ||
| 278000682 | Grommet | ||
| 1 | 278001466 | COIL CABLE, 635MM Includes 82 - 85. | 1 |
| XXXX | Not Available As Spare Part - Plastic Bag | ||
| 1 | 293720029 | Grommet | 1 |
| 275500446 | HOSE 6 MM | ||
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 275500499 | CHECK VALVE | ||
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 278001728 | Battery Positive Cable, Red Includes 56,57,58,93,94 | ||
| XXXX | Not Available As Spare Part - Terminal 30 Deg. (2 Holes) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45 Deg. (Small Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90 Deg. (Small Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 45 Deg. (Big Hole) | ||
| XXXX | Not Available As Spare Part - Terminal 90 Deg. (Big Hole) | ||
| XXXX | Not Available As Spare Part - Flat Terminal | ||
| XXXX | Not Available As Spare Part - Heat Shrink | ||
| XXXX | Not Available As Spare Part - Crimp Plier |
