Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

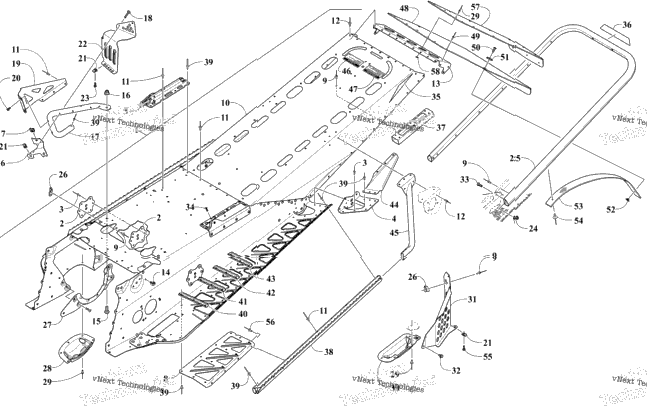

| 3707-672 | Tunnel Assembly - Black (inc. 2-13) | ||
| 4 | 2707-611 | Plate, Backing - Front Arm - Black | 4 |
| 20 | 1623-257 | Rivet | 20 |
| 1 | 1607-276 | Bracket, Mounting - Suspension - Right | 1 |
| 1 | 1607-277 | Bracket, Mounting - Suspension - Left | 1 |
| 1 | 3707-350 | Bracket, Mounting - Rear Spar - Right - Black | 1 |
| 1 | 3707-351 | Bracket, Mounting - Rear Spar - Left - Black | 1 |
| 1 | 7606-806 | Bracket, Support - Skid Plate - Right | 1 |
| 1 | 7606-807 | Bracket, Support - Skid Plate - Left | 1 |
| 2 | 1623-939 | Nut, U | 2 |
| 1 | 2707-612 | Support, Running Board - Right - Black | 1 |
| 1 | 2707-613 | Support, Running Board - Left - Black | 1 |
| 1 | 8060-706 | Rivet | 1 |
| 1 | 3707-348 | Tunnel, Rear - Black | 1 |
| 1 | 1623-130 | Rivet | 1 |
| 1 | 8060-682 | Rivet | 1 |
| 1 | 3707-349 | End Cap, Tunnel - Black | 1 |
| 1 | 1623-406 | Clip, Routing | 1 |
| 2 | 8476-820 | Screw, Machine | 2 |
| 2 | 8427-802 | Nut, Lock | 2 |
| 1 | 1707-636 | Support, Footrest - Right - Black | 1 |
| 1 | 1707-637 | Support, Footrest - Left - Black | 1 |
| 5 | 8468-535 | Screw, Machine | 5 |
| 1 | 3707-258 | Toe Stop - Right - Black | 1 |
| 1 | 3707-259 | Toe Stop - Left - Black | 1 |
| 4 | 0423-538 | Screw, Self-Tapping | 4 |
| 8 | 1623-637 | Clip, U-Nut | 8 |
| 1 | 3707-256 | Footrest - Right - Black | 1 |
| 1 | 3707-257 | Footrest - Left - Black | 1 |
| 4 | 8470-516 | Screw, Machine | 4 |
| 2 | 8427-602 | Nut, Hex | 2 |
| 1 | 3707-243 | Bumper, Rear - Green | 1 |
| 1 | 6606-586 | Bracket, Hold-Down - Right | 1 |
| 1 | 1606-441 | Bracket, Hold-Down - Left | 1 |
| 1 | 1607-306 | Brace, Support | 1 |
| 1 | 1607-109 | Protector, Chain Case | 1 |
| 1 | 8061-708 | Rivet | 1 |
| 1 | 2707-738 | Protector, Brake Disc | 1 |
| 1 | 2707-258 | Shield, Brake Disc - Black | 1 |
| 1 | 8408-613 | Screw, Cap | 1 |
| 2 | 8476-620 | Screw, Machine | 2 |
| 4 | 0623-165 | Clip, Retaining | 4 |
| 2 | 8621-870 | Decal, Reflector - Red | 2 |
| 1 | 5621-311 | Decal, Reflector - Red | 1 |
| 1 | 5706-547 | Protector, Tunnel | 1 |
| 1 | 2707-170 | Roll, Tunnel - Right - Black | 1 |
| 1 | 2707-171 | Roll, Tunnel - Left - Black | 1 |
| 1 | 1623-241 | Rivet | 1 |
| 2 | 2707-614 | Plate, Grip (6.5 in.) - Black | 2 |
| 2 | 2707-615 | Plate, Grip (6.0 in.) - Black | 2 |
| 2 | 2707-616 | Plate, Grip (5.7 in.) - Black | 2 |
| 2 | 2707-617 | Plate, Grip (5.3 in.) - Black | 2 |
| 1 | 2707-618 | Gusset, Running Board - Right - Black | 1 |
| 1 | 2707-619 | Gusset, Running Board - Left - Black | 1 |
| 1 | 1707-810 | Gusset, Tunnel Roll - Right - Black | 1 |
| 1 | 1707-811 | Gusset, Tunnel Roll - Left - Black | 1 |
| 1 | 5611-853 | Decal, Warning - Towing (English) | 1 |
| 1 | 5611-852 | Decal, Warning - Towing (French) | 1 |
| 1 | 1616-210 | Snowflap | 1 |
| 6 | 8061-706 | Rivet | 6 |
| 2 | 8017-607 | Screw, Machine | 2 |
| 2 | 1623-242 | Washer | 2 |
| 2 | 1623-608 | Nut | 2 |
| 2 | 3604-157 | Strap, Snowflap Restraint | 2 |
| 2 | 8061-710 | Rivet | 2 |
| 1 | 8470-520 | Screw, Machine | 1 |
| 1 | 8060-686 | Rivet - Zinc | 1 |
| 1 | 1616-243 | Reinforcement, Snowflap | 1 |
| 11 | 0123-802 | Washer | 11 |
