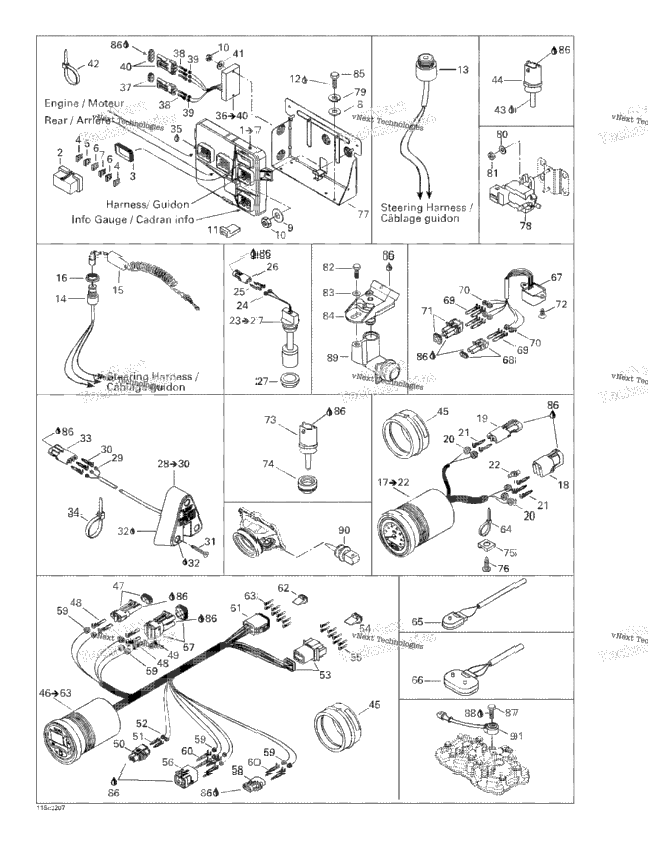

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001747 | Electronic Module Ass'y Includes 1 - 7. | ||
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 1 | 278001442 | FUSE, 2 AMPERES | 1 |
| 2 | 278001443 | Fuse, 25 Amperes | 2 |
| 1 | 278000704 | FUSE, 7.5 AMPERES | 1 |
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 2 | 278001166 | MODULE PROTECTOR | 2 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 278001586 | BUZZER | ||
| 1 | 278001734 | Emergency Switch | 1 |
| 1 | 278001543 | Safety Lanyard | 1 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 278001741 | Speedometer Includes 17 - 22. | ||
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 5 | 278001065 | Wire Seal | 5 |
| 5 | 278000222 | Male Terminal | 5 |
| 1 | 278000216 | Wire Seal | 1 |
| 1 | 278001515 | OIL SENSOR Includes 23 - 27. | 1 |
| 2 | 278000218 | Wire Seal | 2 |
| 2 | 278000222 | Male Terminal | 2 |
| 1 | 293720008 | Grommet | 1 |
| 1 | 278001585 | Speed Sensor Includes 28 - 30. | 1 |
| XXXX | Not Available As Spare Part - Wire Seal | ||
| XXXX | Not Available As Spare Part - Male Terminal | ||
| 3 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 3 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293550015 | Deoxit Lubricant, Spray | 1 |
| 1 | 278001554 | Rectifier Ass’Y Includes 36 - 40. | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 5 | 409007300 | Female Terminal | 5 |
| 5 | 278000218 | Wire Seal | 5 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 2 | 278001016 | Temperature Sensor | 2 |
| 293720047 | Gauge Support | ||
| 278001708 | LCD Info Gauge Includes 46 - 63. | ||
| 5 | 278000223 | Female Terminal | 5 |
| 1 | 515175588 | FEMALE TERMINAL HOUSING, 2 CIRCUITS | 1 |
| 2 | 278000998 | Female Terminal | 2 |
| 2 | 278000999 | Wire Seal | 2 |
| 278001742 | MALE TERMINAL HOUSING, 8 CIRCUITS | ||
| 1 | 515175276 | LOCK MALE, 8 CIRCUITS | 1 |
| 278001664 | Male Terminal | ||
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 11 | 278001065 | Wire Seal | 11 |
| 6 | 278000222 | Male Terminal | 6 |
| 278001743 | MALE HOUSING, 8 CIRCUITS | ||
| 1 | 278001744 | Secondary Lock, 8 Circuits | 1 |
| 8 | 278001665 | Female Terminal | 8 |
| 278001716 | Switch Ass'y | ||
| 278001590 | Mode/Set Switch | ||
| 278001243 | Compass Includes 67 - 71. | ||
| 6 | 278000223 | Female Terminal | 6 |
| 6 | 278000218 | Wire Seal | 6 |
| 2 | 293730010 | Black Dart | 2 |
| 1 | 270600000 | AIR TEMPERATURE SENSOR | 1 |
| 1 | 278001054 | INSULATOR | 1 |
| 2 | 293750026 | Tie Rap Mount | 2 |
| 2 | 241141360 | Hex. Flange Screw K40 X 13 | 2 |
| 278001447 | Module Support | ||
| 270600044 | SOLENOID VALVE | ||
| 4 | 234151601 | Helical Lock Washer M5 | 4 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 1 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 1 |
| 1 | 211200035 | Flat Washer | 1 |
| 1 | 270600040 | Pressure Sensor | 1 |
| 4 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 4 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 207183060 | Hex. Screw M8 X 30 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 270600019 | VALVE ADAPTOR | 1 |
| 1 | 270000484 | Noise Sensor | 1 |
