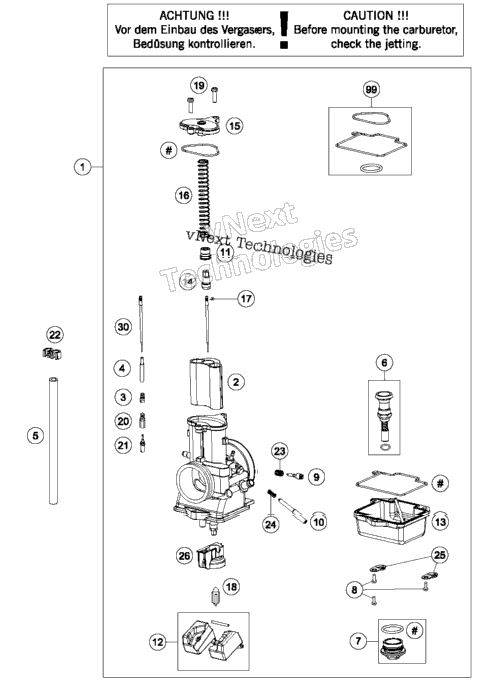

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 55431101244 | Vergaser | ||
| 55431035040 | THROTTLE SLIDE ''4.0'' | ||
| 1 | 55431051050 | STARTING JET ''50'' As Required | 1 |
| 1 | 55431051080 | STARTING JET ''80'' As Required | 1 |
| 1 | 55431021100 | NEEDLE JET ''S-1'' As Required | 1 |
| 1 | 55431021400 | Needle jet S-4 As Required | 1 |
| 1 | 55431021700 | Needle jet S-7 As Required | 1 |
| 1 | 55431021000 | NEEDLE JET ''R-8'' As Required | 1 |
| 1 | 31007007101 | PVC-HOSE 4X6MM As Required | 1 |
| 1 | 52031137001 | PVC-HOSE 3X5MM As Required | 1 |
| 1 | 55431245000 | start piston | 1 |
| 1 | 55431699000 | SCREW PLUG CPL. | 1 |
| 3 | 0014050163 | HH COLLAR SCREW M 5X16 WS=6 | 3 |
| 1 | 55431017000 | Adjuster | 1 |
| 1 | 55431019000 | Adjuster | 1 |
| 1 | 55431034050 | RING | 1 |
| 1 | 55431009000 | FLOAT & PIN | 1 |
| 1 | 55431011000 | FLOAT CHAMBER CPL. | 1 |
| 1 | 55431030050 | GUIDE HOLDER | 1 |
| 1 | 55431027000 | CARBURETTOR COVER | 1 |
| 1 | 55431030000 | SLIDING SPRING MIKUNI | 1 |
| 1 | 55431034060 | LOCK RING | 1 |
| 1 | 55431020000 | FLOAT NEEDLE CPL. | 1 |
| 554831025000 | SCREW CARBURETTOR COVER | ||
| 1 | 55431029100 | MAIN JET ''100'' As Required | 1 |
| 1 | 55431029155 | MAIN JET ''155'' As Required | 1 |
| 1 | 55431029400 | MAIN JET ''400'' As Required | 1 |
| 1 | 55431029410 | MAIN JET ''410'' As Required | 1 |
| 1 | 55431029420 | MAIN JET ''420'' As Required | 1 |
| 1 | 55431029430 | MAIN JET ''430'' As Required | 1 |
| 1 | 55431029440 | MAIN JET ''440'' As Required | 1 |
| 1 | 55431029450 | MAIN JET ''450'' As Required | 1 |
| 1 | 55431029460 | MAIN JET ''460'' As Required | 1 |
| 1 | 55431029470 | MAIN JET ''470'' As Required | 1 |
| 1 | 55431029480 | MAIN JET ''480'' As Required | 1 |
| 1 | 55431029490 | MAIN JET ''490'' As Required | 1 |
| 1 | 55431029500 | MAIN JET ''500'' As Required | 1 |
| 1 | 55431029520 | MAIN JET ''520'' As Required | 1 |
| 1 | 55431029540 | MAIN JET ''540'' As Required | 1 |
| 1 | 55431029560 | MAIN JET ''560'' As Required | 1 |
| 1 | 55431029580 | MAIN JET ''580'' As Required | 1 |
| 1 | 55431029600 | MAIN JET ''600'' As Required | 1 |
| 1 | 55431007150 | IDLING JET ''15'' As Required | 1 |
| 1 | 55431007175 | IDLING JET ''17.5'' As Required | 1 |
| 1 | 55431007225 | "Idle jet ""22,5""" As Required | 1 |
| 1 | 55431007250 | "Idle jet ""25""" As Required | 1 |
| 1 | 55431007275 | "Idle jet ""27,5""" As Required | 1 |
| 1 | 55431007300 | IDLING JET ''30'' As Required | 1 |
| 1 | 55431007325 | IDLING JET ''32.5'' As Required | 1 |
| 1 | 55431007350 | IDLING JET ''35'' As Required | 1 |
| 1 | 55431007375 | IDLING JET ''37.5'' As Required | 1 |
| 1 | 55431007400 | IDLING JET ''40'' As Required | 1 |
| 1 | 55431007425 | IDLING JET ''42.5'' As Required | 1 |
| 1 | 55431007450 | IDLING JET ''45'' As Required | 1 |
| 1 | 55431007475 | IDLING JET ''47.5'' As Required | 1 |
| 1 | 55431007500 | IDLING JET ''50'' As Required | 1 |
| 1 | 55431007525 | IDLING JET ''52.5'' As Required | 1 |
| 3 | 55431073000 | distance holder | 3 |
| 1 | 55431017010 | COMPRESSION SPRING ADJUSTER | 1 |
| 1 | 55431019010 | compressing spring | 1 |
| 2 | 55431012000 | plate | 2 |
| 1 | 55431010000 | Holder | 1 |
| 1 | 55431934000 | JET NEEDLE ''6GAY69-74'' As Required | 1 |
| 1 | 55431034000 | JET NEEDLE ''6BFY42-71'' As Required | 1 |
| 1 | 55431034100 | JET NEEDLE ''6BFY42-72'' As Required | 1 |
| 1 | 55431034200 | JET NEEDLE ''6BFY42-73'' As Required | 1 |
| 1 | 55431034300 | JET NEEDLE ''6BFY42-74'' As Required | 1 |
| 1 | 55431034400 | JET NEEDLE ''6BFY42-75'' As Required | 1 |
| 1 | 55431034500 | JET NEEDLE ''6BFY42-76'' As Required | 1 |
| 1 | 55431134000 | JET NEEDLE ''6BFY43-71'' As Required | 1 |
| 1 | 55431134100 | JET NEEDLE ''6BFY43-72'' As Required | 1 |
| 1 | 55431134200 | JET NEEDLE ''6BFY43-73'' As Required | 1 |
| 1 | 55431134300 | JET NEEDLE ''6BFY43-74'' As Required | 1 |
| 1 | 55431134400 | JET NEEDLE ''6BFY43-75'' As Required | 1 |
| 1 | 55431134500 | JET NEEDLE ''6BFY43-76'' As Required | 1 |
| 1 | 55431234000 | JET NEEDLE ''6BFY44-71'' As Required | 1 |
| 1 | 55431234100 | JET NEEDLE ''6BFY44-72'' As Required | 1 |
| 1 | 55431234200 | JET NEEDLE ''6BFY44-73'' As Required | 1 |
| 1 | 55431234300 | JET NEEDLE ''6BFY44-74'' As Required | 1 |
| 1 | 55431234400 | JET NEEDLE ''6BFY44-75'' As Required | 1 |
| 1 | 55431234500 | JET NEEDLE ''6BFY44-76'' As Required | 1 |
| 1 | 55431099000 | Gasket set Mikuni As Required | 1 |
