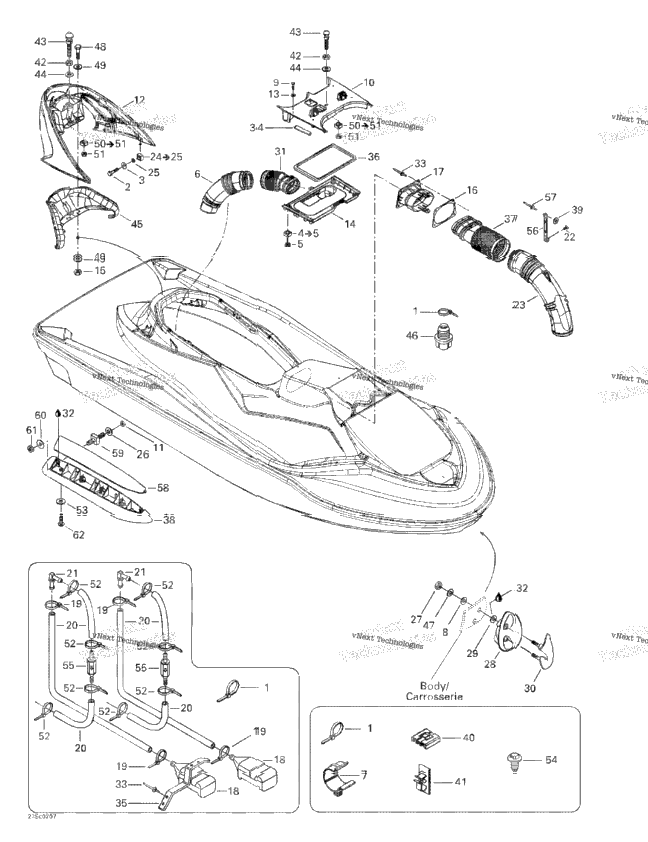

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 4 | 207162560 | Hex. Screw M6 X 25 | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 4 | 269501166 | Nut Housing Ass'y Includes 4 - 5. | 4 |
| 4 | 232561200 | Elastic Stop Nut M6, Brass | 4 |
| 291001601 | Vent Hose | ||
| 4 | 275500527 | Cable Retainer | 4 |
| 2 | 293830037 | Rubber Washer | 2 |
| 207167560 | Hex. Screw M6 X 75 | ||
| 291001602 | Upper Bridge, Black | ||
| 10 | 232061600 | Hex. Nut M6 | 10 |
| 1 | 269000722 | GRAB HANDLE, BLACK | 1 |
| 291001599 | Lower Bridge, Black | ||
| 2 | 232581650 | Elastic Stop Nut M8 | 2 |
| 1 | 293250128 | Gasket | 1 |
| 1 | 291001627 | Front Air Collector | 1 |
| 292000688 | Bailer Screen | ||
| 4 | 293750001 | Tie Wrap 94 mm | 4 |
| 1 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 1 |
| 2 | 293710057 | ELBOW FITTING 90 | 2 |
| 1 | 293730010 | Black Dart | 1 |
| 291001689 | Vent Hose | ||
| 4 | 269500725 | M6 Nut Housing Ass'y Includes 24 - 25. | 4 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 10 | 234062600 | Flat Washer M6, Stainless | 10 |
| 1 | 292000453 | Shell, Black GTX DI 5563/5564. | 1 |
| 292000638 | Shell (Blue) GTX DI 5595/5596. | ||
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 1 | 292000708 | Bow Eye Ass'y, Black GTX DI 5563/5564. | 1 |
| 1 | 292000712 | Bow Eye (Blue) GTX DI 5595/5596. | 1 |
| 291001748 | Flexible Hose | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 8 | 293150037 | Avdel Rivet 3/16" | 8 |
| 293250008 | GASKET PAC = 1.0m | ||
| 2 | 292000398 | LH SPRING CLIP | 2 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 1 | 291001746 | FLEXIBLE HOSE | 1 |
| 1 | 292000818 | RH SPONSON | 1 |
| 292000816 | LH SPONSON | ||
| 1 | 234032600 | Flat Washer M3, Stainless | 1 |
| 2 | 293750025 | Tie-Rap Mount | 2 |
| 1 | 293750005 | TIE CLAMP | 1 |
| 2 | 232100600 | Hex. Jam Nut M10 | 2 |
| 2 | 291000945 | SEAT STUD | 2 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 1 | 269000749 | HANDLE COVER, BLACK | 1 |
| 1 | 293720042 | GROMMET | 1 |
| 2 | 250200011 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 207084560 | Hex. Screw M8 X 45 | 2 |
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 271000598 | NUT HOUSING ASS'Y Includes 50 - 51. | ||
| 2 | 232501600 | HEX. ELASTIC NUT M10 | 2 |
| 8 | 293750001 | Tie Wrap 94 mm | 8 |
| 6 | 234051600 | Flat Washer M5, Stainless | 6 |
| 1 | 293730018 | Mount Dart | 1 |
| 276000093 | Check Valve | ||
| 291001760 | Hose Support | ||
| 1 | 293150026 | RIVET_POP 1/8 | 1 |
| 1 | 292000815 | RH SPONSON COVER | 1 |
| 1 | 292000817 | LH SPONSON COVER | 1 |
| 293450227 | THREADED INSERT | ||
| 211000037 | Phillips Screw 10-14 X 7/8” |
