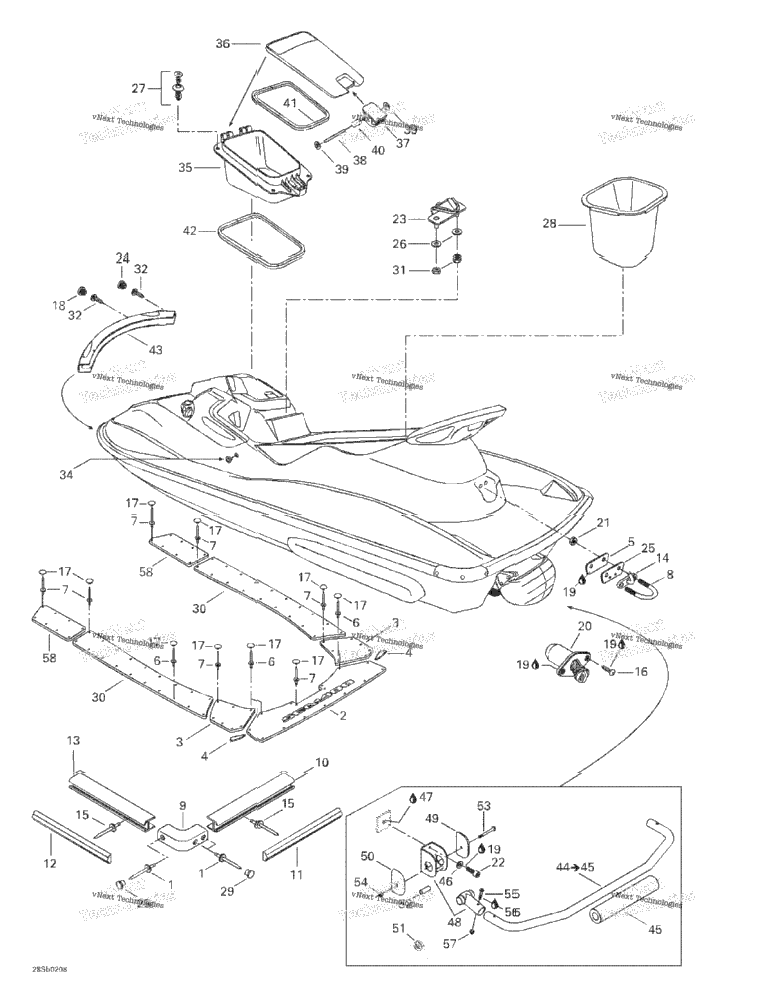

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 6 | 293150013 | Pop Rivet 3/16" | 6 |
| 291001053 | Rear Carpet (Black) | ||
| 291001051 | RH Rear Carpet (Black) | ||
| 291001052 | LH Rear Carpet (Black) | ||
| 291001252 | RH Anti-Skid Carpet | ||
| 291001253 | LH Anti-Skid Carpet | ||
| 1 | 291000307 | RETAINING PLATE | 1 |
| 5 | 293150016 | Rivet 1/8" | 5 |
| 78 | 293150036 | RIVET_POP 1/8 X ,750 | 78 |
| 1 | 292000011 | U-CLAMP | 1 |
| 2 | 291001505 | Bumper Corner, Black | 2 |
| 291001226 | Rear Bumper (Black) | ||
| 291001543 | Rear Bumper Trim (Blue) | ||
| 291001542 | Side Bumper Trim (Blue) | ||
| 2 | 291001224 | Side Bumper (Black) | 2 |
| 1 | 291001232 | Hook | 1 |
| 54 | 293150005 | Pop Rivet 3/16" | 54 |
| 4 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 4 |
| 1 | 293000014 | Black, Snap Cap | 1 |
| 2 | 291001040 | Bumper Plug, Black | 2 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 292000685 | DRAIN ASSY | ||
| 2 | 232581650 | Elastic Stop Nut M8 | 2 |
| 6 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip | 6 |
| 291001479 | Seat Hook | ||
| 291001519 | Bumper Plug, Black | ||
| 291000544 | Finition Plate | ||
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 211000088 | SCREW-TUFLOCK PHILLIPS | ||
| 269500992 | Rear Tray (Seat) | ||
| 6 | 291000339 | Bumper Plug, Black | 6 |
| 291001030 | RH Center Carpet (Black) | ||
| 291001031 | LH Center Carpet (Black) | ||
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 211000037 | Phillips Screw 10-14 X 7/8” | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 293000089 | PIPE CAP | ||
| 269500439 | Box Gloves | ||
| 269501095 | Door (Box Gloves) | ||
| 1 | 269500553 | Latch, Black | 1 |
| 1 | 211400008 | Pin | 1 |
| 2 | 211100002 | Push Nut | 2 |
| 1 | 291000922 | Latch Spring | 1 |
| 1 | 293250060 | GASKET | 1 |
| 1 | 219704373 | Was 293250143 Neoprene Seal | 1 |
| 291001035 | NOSE BUMPER, BLACK | ||
| 292000590 | Stair Tube Includes 44 - 45. | ||
| 292000593 | Protector Tube | ||
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 1 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml | 1 |
| 292000539 | Support Ass’Y | ||
| 292000540 | RH Support Cap | ||
| 292000548 | LH Support Cap | ||
| 2 | 292000541 | RECALL SPRING | 2 |
| XXXX | Not Available As Spare Part - Plastic Tube | ||
| 211000186 | Phillips Screw | ||
| 2 | 212000005 | NUT-STOP ELASTIC MS-17830 | 2 |
| 2 | 205063560 | Socket Head Screw M6 X 35 | 2 |
| 2 | 232361600 | Nut M6 | 2 |
| 291001032 | RH Front Carpet (Black) | ||
| 291001033 | LH Front Carpet (Black) |
