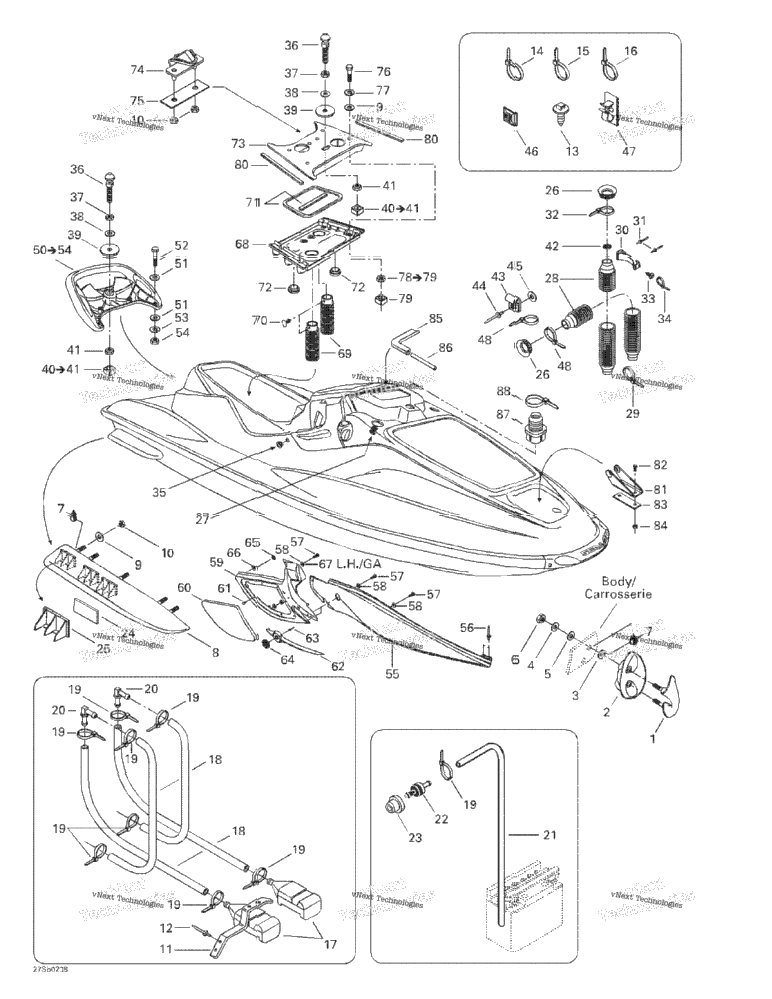

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 292000712 | Bow Eye (Blue) | 1 |
| 292000638 | Shell (Blue) | ||
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 2 | 250200011 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 293830037 | Rubber Washer | 2 |
| 2 | 232581650 | Elastic Stop Nut M8 | 2 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 292000594 | RH SPONSON | 1 |
| 1 | 292000595 | LH SPONSON | 1 |
| 13 | 234062600 | Flat Washer M6, Stainless | 13 |
| 12 | 232561600 | Hex. Elastic Stop Nut M6 | 12 |
| 2 | 292000398 | LH SPRING CLIP | 2 |
| 4 | 293150037 | Avdel Rivet 3/16" | 4 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 292000688 | Bailer Screen | ||
| 1 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 1 |
| 9 | 293750001 | Tie Wrap 94 mm | 9 |
| 2 | 293710057 | ELBOW FITTING 90 | 2 |
| 275500446 | HOSE 6 MM | ||
| 275500499 | CHECK VALVE | ||
| 1 | 293720029 | Grommet | 1 |
| 6 | 292000414 | CUSHION | 6 |
| 293450149 | Insert | ||
| 291001100 | VENT ADAPTOR | ||
| 291001512 | Protector | ||
| 291001772 | Vent Hose | ||
| 293750023 | Tie Rap 394 mm | ||
| 274000891 | Support | ||
| 2 | 293150043 | Pop Rivet 3/16" | 2 |
| 293750022 | Tie Rap | ||
| 293000089 | PIPE CAP | ||
| 2 | 291000945 | SEAT STUD | 2 |
| 2 | 232100600 | Hex. Jam Nut M10 | 2 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 2 | 291000628 | RUBBER WASHER | 2 |
| 271000598 | NUT HOUSING ASS'Y Includes 40 - 41. | ||
| 2 | 232501600 | HEX. ELASTIC NUT M10 | 2 |
| 291001770 | Restrictor | ||
| 293750021 | CLAMP TIE | ||
| 1 | 293150005 | Pop Rivet 3/16" | 1 |
| 1 | 213200016 | Flat Washer, Emhart | 1 |
| 293750015 | TIE RAP MOUNT | ||
| 1 | 293750025 | Tie-Rap Mount | 1 |
| 1 | 293750005 | TIE CLAMP | 1 |
| 295500369 | Grab Handle (Black) Includes 50 - 54. | ||
| 8 | 234062600 | Flat Washer M6, Stainless | 8 |
| 4 | 207064060 | Hex. Screw M6 X 40 | 4 |
| 4 | 234161601 | Lock Washer Helical M6 | 4 |
| 4 | 232061600 | Hex. Nut M6 | 4 |
| 291001403 | LH Moulding | ||
| 291001404 | RH Moulding | ||
| 11 | 241141660 | Hex. Flange Screw K40 X 16 | 11 |
| 10 | 234052600 | Flat Washer 5 mm, Stainless | 10 |
| 269500715 | RH Intake Grille (Starboard) | ||
| 269500714 | LH Intake Grille (Port) | ||
| 269000759 | RH Knee Pad | ||
| 269000760 | LH Knee Pad | ||
| 269000678 | LH Knee Pad | ||
| 6 | 414644300 | Black, Dart | 6 |
| 2 | 269500716 | FINITION PLATE | 2 |
| 2 | 293150011 | Pop Rivet 3/16" | 2 |
| 2 | 516000983 | Bombardier Logo | 2 |
| 250100008 | Push Nut | ||
| 4 | 211200055 | Flat Washer, Stainless/Neoprene | 4 |
| 1 | 211200033 | FLAT WASHER | 1 |
| 1 | 291001281 | BRIDGE LOWER | 1 |
| 291001775 | Vent Hose | ||
| 2 | 293730011 | Black, Dart | 2 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 293000049 | Plug | ||
| 291000851 | Bridge Upper | ||
| 291001479 | Seat Hook | ||
| 1 | 291000079 | REINFORCEMENT PLATE | 1 |
| 4 | 207067060 | Hex. Screw M6 X 70 | 4 |
| 4 | 269500252 | M6 Nut Housing Ass'y Includes 78 - 79. | 4 |
| 293250008 | GASKET PAC = 1.0m | ||
| 1 | 291000855 | SHOCK SUPPORT | 1 |
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm | 1 |
| 1 | 293720042 | GROMMET | 1 |
