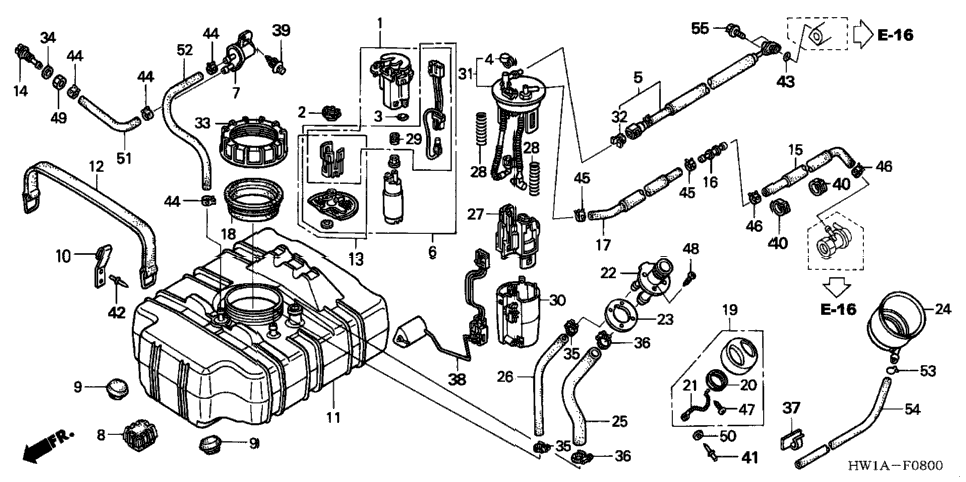

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 16010-HW1-673 | FILTER SET, FUEL | ||
| 1 | 16711-S84-A01 | RUBBER, FUEL PUMP INSULATOR | 1 |
| 1 | 16715-S0X-A01 | O-RING | 1 |
| 1 | 16719-HW1-670 | DAMPER, CONNECTOR | 1 |
| 16920-HW3-670 | HOSE, FUEL | ||
| 16920-HW3-671 | HOSE, FUEL | ||
| 17040-HW1-681 | PUMP SET, FUEL | ||
| 17371-SD5-J32 | VALVE (TWO-WAY) (TSUCHIYA) | ||
| 17505-HW1-670 | RUBBER, FUEL TANK STOPPER | ||
| 17506-HW1-670 | RUBBER, FUEL TANK MOUNTING | ||
| 17507-HW1-670 | HOLDER A, BAND | ||
| 17510-HW1-670 | TANK, FUEL | ||
| 17516-HW1-670 | BAND A, RUBBER | ||
| 1 | 17516-S0X-A01 | FILTER SET, FUEL PUMP | 1 |
| 17521-HW1-670 | BOLT, BREATHER | ||
| 17525-HW3-670 | HOSE, FUEL RETURN | ||
| 17526-HW1-670 | JOINT, FUEL RETURN | ||
| 17527-HW1-670 | HOSE B, FUEL RETURN | ||
| 1 | 17574-S1A-E01 | GASKET, BASE | 1 |
| 17620-HW3-670 | CAP ASSY., FUEL TANK | ||
| 1 | 17624-HF7-000 | GASKET, FUEL CAP | 1 |
| 17627-HW3-670 | CHAIN, FUEL FILLER CAP | ||
| 17631-HW1-680 | NECK, FUEL FILLER | ||
| 17633-HW1-670 | SEAL, FUEL FILLER | ||
| 17635-HW1-670 | PARTITION, FILLER NECK | ||
| 17641-HW1-670 | TUBE, FILLER NECK | ||
| 17642-HW1-670 | TUBE, TANK BREATHER | ||
| 17701-S3V-A01 | ADAPTER | ||
| 2 | 17703-S0X-A01 | SPRING | 2 |
| 1 | 17705-S0X-A01 | GROMMET | 1 |
| 1 | 17706-S0X-A01 | RESERVOIR | 1 |
| 17710-HW1-671 | FLANGE SET | ||
| 1 | 17711-S0X-003 | RETAINER (ORANGE) (TOKAI) | 1 |
| 1 | 17719-S1A-E01 | NUT, FUEL PUMP MODULE LOCK | 1 |
| 19079-HW1-670 | SEAL, NOZZLE | ||
| 19081-HW1-670 | CLAMP, WATER HOSE (14-27MM) | ||
| 19081-HW1-671 | CLAMP, WATER HOSE (14-27MM) | ||
| 19086-HW1-670 | CLAMP, WATER HOSE (27-51MM) | ||
| 1 | 32912-MR5-000 | CLAMP, TUBE | 1 |
| 37800-HW1-671 | SENSOR UNIT, FUEL | ||
| 1 | 90602-GCT-000 | RIVET, PUSH (6MM) | 1 |
| 2 | 90683-KJ2-003 | CLIP, WIRE HARNESS | 2 |
| 90851-GN3-920 | RIVET (4X10.4) | ||
| 90852-HW1-670 | RIVET (4.8X17.2) | ||
| 1 | 91302-MCA-000 | O-RING (7.8X1.9) | 1 |
| 91404-HW1-A21 | CLAMP, FUEL HOSE (D10.5) | ||
| 91404-HW1-A22 | CLAMP, FUEL HOSE (D10.5) | ||
| 2 | 91406-HW1-671 | CLAMP (D13.5) | 2 |
| 2 | 91406-HW1-672 | CLAMP (D13.5) | 2 |
| 91405-HW1-A21 | CLAMP (D10.5MM) | ||
| 91405-HW1-A22 | CLAMP (D10.5MM) | ||
| 1 | 93903-223J0 | SCREW, TAPPING (4X12) | 1 |
| 4 | 93903-253J0 | SCREW, TAPPING (5X16) | 4 |
| 1 | 94001-12490-0S | NUT, HEX. (12MM) | 1 |
| 1 | 94101-04800 | WASHER, PLAIN (4MM) | 1 |
| 1 | 95001-55003-60M | BULK HOSE, FUEL (5.5X3000) (95001-550(95001-55001-60M) | 1 |
| 1 | 95001-55003-60M | BULK HOSE, FUEL (5.5X3000) (5.3X520) | 1 |
| 1 | 95002-02109 | CLIP, TUBE (B10) | 1 |
| 1 | 95005-70001-50M | BULK HOSE, VACUUM (7X1000) | 1 |
| 2 | 96001-06012-02 | BOLT, FLANGE (6X12) | 2 |
