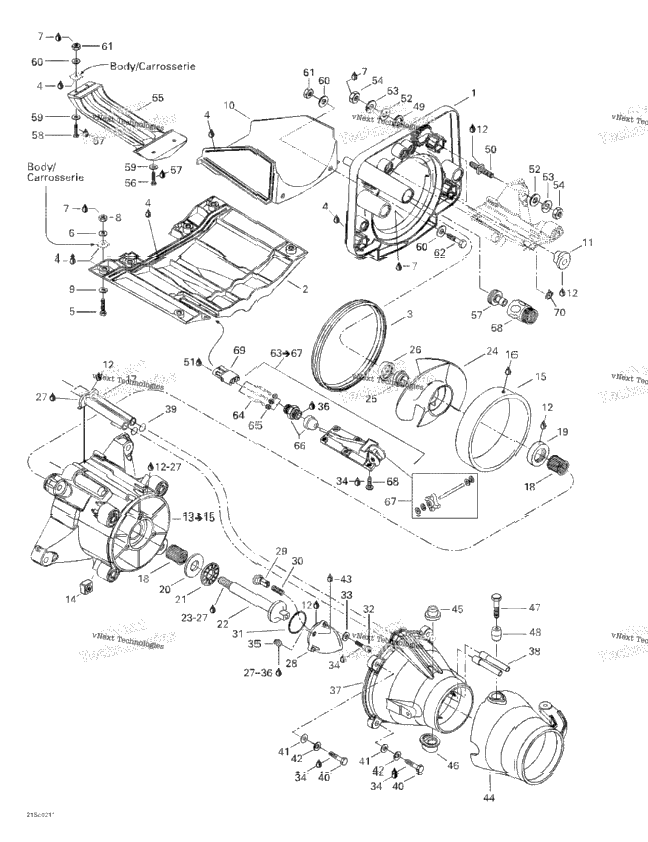

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204050475 | Pump Support | ||
| 271000712 | Riding Plate | ||
| 1 | 293200051 | Neoprene Seal | 1 |
| 1 | 293800088 | Adchem Sealant | 1 |
| 6 | 207184060 | Hex. Screw M8 X 40 | 6 |
| 6 | 234082600 | Flat Washer 8 mm, Stainless | 6 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 6 | 232581600 | Hex. Elastic Nut M8 | 6 |
| 6 | 234081600 | Stainless, Flat Washer 8 mm | 6 |
| 1 | 271000792 | SHOE | 1 |
| 2 | 293250084 | Watertight Seal | 2 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 271001381 | HOUSING ASSY Includes 13 - 15. | ||
| 4 | 211100033 | Square Nut M8 | 4 |
| 1 | 271000653 | Wear Ring | 1 |
| 1 | 413711400 | Loctite 648, 10 ml | 1 |
| 1 | 271000785 | Water Outlet | 1 |
| 2 | 293350017 | Needle Bearing | 2 |
| 1 | 293200065 | Oil Seal | 1 |
| 1 | 293350020 | THRUST WASHER | 1 |
| 1 | 293350022 | Thrust-Bearing | 1 |
| 1 | 271000965 | Impeller Shaft | 1 |
| 413705200 | Loctite 262, 50 ml | ||
| 204160136 | Impeller Assy | ||
| 1 | 271000516 | Impeller Boot | 1 |
| 1 | 271000517 | Impeller Ring | 1 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 271001250 | IMPELLER COVER | ||
| 1 | 271000978 | PUSHER | 1 |
| 271000973 | SPRING | ||
| 1 | 293300011 | O-Ring | 1 |
| 3 | 205062560 | Socket Head Screw M6 X 25 | 3 |
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt | 1 |
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 271001194 | Venturi (Black) | ||
| 2 | 271001133 | Siphon Tube | 2 |
| 2 | 293300013 | O-Ring | 2 |
| 207087060 | HEX. SCREW M8 X 70 | ||
| 4 | 293050001 | Flat Washer M8.5 x 18 | 4 |
| 4 | 234181601 | Lock Washer 8 mm, Stainless | 4 |
| 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | ||
| 204160144 | Steering Nozzle | ||
| 1 | 293900001 | Venturi Bushing | 1 |
| 1 | 293900010 | Plastic Bushing | 1 |
| 2 | 211000047 | SCREW-SPECIAL M8 | 2 |
| 204160153 | Venturi Spacer | ||
| 2 | 204120067 | SHIM, 0.9 MM | 2 |
| 4 | 250300010 | Square Stud | 4 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 8 | 234002600 | Flat Washer 10 mm, Stainless | 8 |
| 8 | 234101601 | Helicoidal Lock Washer M10 | 8 |
| 8 | 232001600 | HEX. NUT M10 | 8 |
| 271000790 | PUMP GRATE | ||
| 2 | 207161660 | Hex. Screw M6 X 16 | 2 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 2 | 207164560 | Hex. Screw M6 X 45 | 2 |
| 4 | 234061600 | Stainless, Flat Washer M6 | 4 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 2 | 207162060 | Hex. Forming Screw M6 X 20 | 2 |
| 278000849 | Speed Sensor Includes 63 - 67. | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal . | 3 |
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 208551060 | PHILLIPS SCREW M5 X 10 | ||
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 291001761 | Reducer | ||
| 1 | 293710078 | Adaptor | 1 |
| 1 | 293710077 | QUICK FITTING | 1 |
