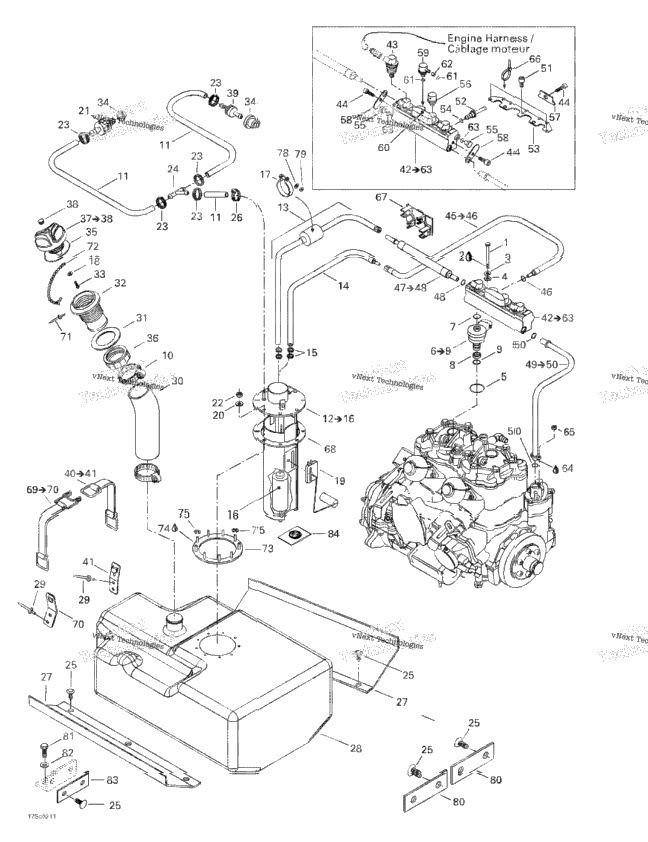

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 207087060 | HEX. SCREW M8 X 70 | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 234181601 | Lock Washer 8 mm, Stainless | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 293300083 | O-Ring | ||
| 2 | 275500545 | Air Injector Includes 6 - 9. | 2 |
| 293300084 | O-Ring | ||
| 2 | 270600030 | INJECTOR RING | 2 |
| 293300076 | O-Ring | ||
| 2 | 293650023 | Tridon Clamp | 2 |
| 1 | 219704357 | Was 275500549 Hose 1/4" | 1 |
| 204250212 | Fuel Module Ass'y Includes 12 - 16. | ||
| 204250213 | Fuel Outlet Hose Ass'y | ||
| 275500508 | Fuel Return Hose Ass'y | ||
| 4 | 293650140 | Oetiker Clamp | 4 |
| XXXX | Not Available As Spare Part - Fuel Pump | ||
| 2 | 293650139 | CLAMP | 2 |
| 3 | 234032600 | Flat Washer M3, Stainless | 3 |
| 270600012 | Sensor Level | ||
| 9 | 234052400 | Flat Washer 5 mm, Stainless | 9 |
| 1 | 275500505 | Check Valve | 1 |
| 9 | 232551200 | Elastic Stop Nut 5 mm | 9 |
| 5 | 293650050 | Caillau Clic Clamp | 5 |
| 1 | 293710059 | Y-Fitting | 1 |
| 12 | 293730006 | Black, Dart | 12 |
| 1 | 293650128 | Hose Clamp | 1 |
| 204050298 | Pad Rubber | ||
| 204560197 | Fuel Tank | ||
| 16 | 293150011 | Pop Rivet 3/16" | 16 |
| 204250135 | Filler Neck Hose | ||
| 1 | 293250029 | Gasket | 1 |
| 275500247 | Filler Neck | ||
| 1 | 241140060 | Screw K40 X 10 | 1 |
| 2 | 293720029 | Grommet | 2 |
| 1 | 293250075 | Gasket | 1 |
| 1 | 211100012 | Filler Neck Nut, Fuel | 1 |
| 1 | 275500153 | Fuel Cap Ass'y Includes 37 - 38. | 1 |
| 1 | 293000034 | Black, Snap Cap | 1 |
| 1 | 275500398 | Check Valve | 1 |
| 293850026 | Fuel Tank Strap Includes 40 - 41. | ||
| 4 | 293850024 | STRAP CLIP | 4 |
| 275500541 | Fuel Distributor Includes 42 - 63. | ||
| 2 | 275500460 | Fuel Injector | 2 |
| 3 | 205061260 | Socket Head Screw M6 X 12 | 3 |
| 275500511 | Hose Ass'y (Fuel Return) Includes 45 - 46. (987.8 mm) | ||
| 293300070 | O-Ring | ||
| 275500519 | Hose Ass'y (Fuel Supply) Includes 47 - 48. (864.5 mm) | ||
| 293300069 | O-RING | ||
| 270600022 | Pressure Hose Includes 49 - 50. | ||
| 205051260 | SOCKET HEAD SCREW M5 X 12 | ||
| 1 | 275500538 | AIR ADAPTER | 1 |
| 1 | 275500543 | RETAINER PLATE | 1 |
| 275500544 | Cap | ||
| 275500463 | Air Regulator | ||
| 1 | 275500456 | RETAINER PLATE | 1 |
| 275500455 | RETAINER PLATE | ||
| 1 | 275500464 | FUEL REGULATOR | 1 |
| 275500449 | Cover | ||
| 293300072 | O-Ring | ||
| 1 | 275500465 | SPACER | 1 |
| 2 | 293300073 | O-RING | 2 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 3 | 293750001 | Tie Wrap 94 mm | 3 |
| 291001399 | Clamp Tie | ||
| 1 | 293250088 | Gasket | 1 |
| 293850025 | Strap Includes 69 - 70. | ||
| 1 | 390407900 | Pop Rivet 1/8" | 1 |
| 275500015 | Oil Cap Chain | ||
| 204130018 | Ring, 9 Stud | ||
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 2 | 293370002 | Circlip 5 mm | 2 |
| 1 | 275500067 | Internal Filler Neck Hose | 1 |
| 293150057 | Rivet 1/8” | ||
| 2 | 234051500 | Flat Washer 5 mm | 2 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 292000415 | Rubber Pad | ||
| 2 | 207162060 | Hex. Forming Screw M6 X 20 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 204060702 | MUFFLER RUBBER PAD | 1 |
| 1 | 219700368 | Fuel Filter, Bosch | 1 |
