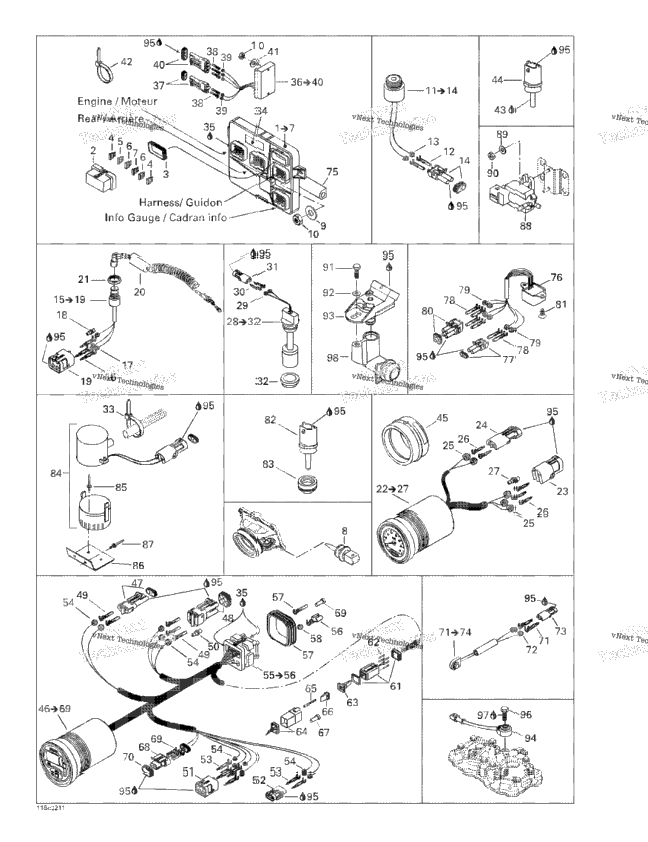

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001747 | Electronic Module Ass'y Includes 1 - 7. | ||
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 1 | 278001442 | FUSE, 2 AMPERES | 1 |
| 2 | 278001443 | Fuse, 25 Amperes | 2 |
| 278001196 | FUSE, 3 AMPERES | ||
| 1 | 270600000 | AIR TEMPERATURE SENSOR | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 278000978 | Buzzer Ass'y Includes 11 - 14. | ||
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 278000977 | Safety Switch Includes 15 - 19. | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal | 3 |
| 1 | 278000216 | Wire Seal | 1 |
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 1 | 278001543 | Safety Lanyard | 1 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 278001359 | Speedometer Includes 22 - 27. | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 5 | 278001065 | Wire Seal | 5 |
| 5 | 278000222 | Male Terminal | 5 |
| 1 | 278001515 | OIL SENSOR Includes 28 - 32. | 1 |
| 2 | 278000222 | Male Terminal | 2 |
| 1 | 293720008 | Grommet | 1 |
| 4 | 293750002 | Tie Wrap 142 mm | 4 |
| 204901016 | Module Decal | ||
| 1 | 293550015 | Deoxit Lubricant, Spray | 1 |
| 1 | 278001554 | Rectifier Ass’Y Includes 36 - 40. | 1 |
| 5 | 409007300 | Female Terminal | 5 |
| 5 | 278000218 | Wire Seal | 5 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 2 | 278001016 | Temperature Sensor | 2 |
| 293720047 | Gauge Support | ||
| 204470675 | LCD Info Gauge Includes 46 - 69. | ||
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS | 1 |
| 5 | 278000223 | Female Terminal | 5 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 6 | 278000222 | Male Terminal | 6 |
| 11 | 278001065 | Wire Seal | 11 |
| 278000993 | Male Connector, 26 Circuits Includes 55 - 56. | ||
| 1 | 278001307 | WIRE SEAL | 1 |
| 3 | 278000994 | FEMALE TERMINAL | 3 |
| 278000995 | FEMALE TERMINAL | ||
| 278000996 | WIRE SEAL | ||
| 10 | 293000070 | SEALING CAP | 10 |
| 1 | 278000736 | Male Connector, 6 Circuits | 1 |
| 4 | 278000632 | Female Terminal | 4 |
| 1 | 278000737 | MALE LOCK, 6 CIRCUITS | 1 |
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 2 | 278000631 | Male Terminal | 2 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 6 | 293000052 | Sealing Cap | 6 |
| 1 | 278001005 | Male Housing, 2 Circuits | 1 |
| 2 | 278000998 | Female Terminal | 2 |
| 278001353 | SWITCH ASS. START/STOP Includes 71 - 74. | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 278001243 | Compass Includes 76 - 80. | ||
| 6 | 278000223 | Female Terminal | 6 |
| 6 | 278000218 | Wire Seal | 6 |
| 2 | 293730016 | Dart, Black | 2 |
| 1 | 278001054 | INSULATOR | 1 |
| 1 | 204470220 | Bilge Pump | 1 |
| 2 | 293150029 | RIVET_POP 5/32 | 2 |
| 204050304 | Bilge Pump Support | ||
| 2 | 293150011 | Pop Rivet 3/16" | 2 |
| 270600044 | SOLENOID VALVE | ||
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 1 | 243041660 | HEX. PLASTITE SCREW M5.28 X 16 | 1 |
| 1 | 211200035 | Flat Washer | 1 |
| 1 | 270600040 | Pressure Sensor | 1 |
| 1 | 270000484 | Noise Sensor | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 207183060 | Hex. Screw M8 X 30 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 270600019 | VALVE ADAPTOR | 1 |
