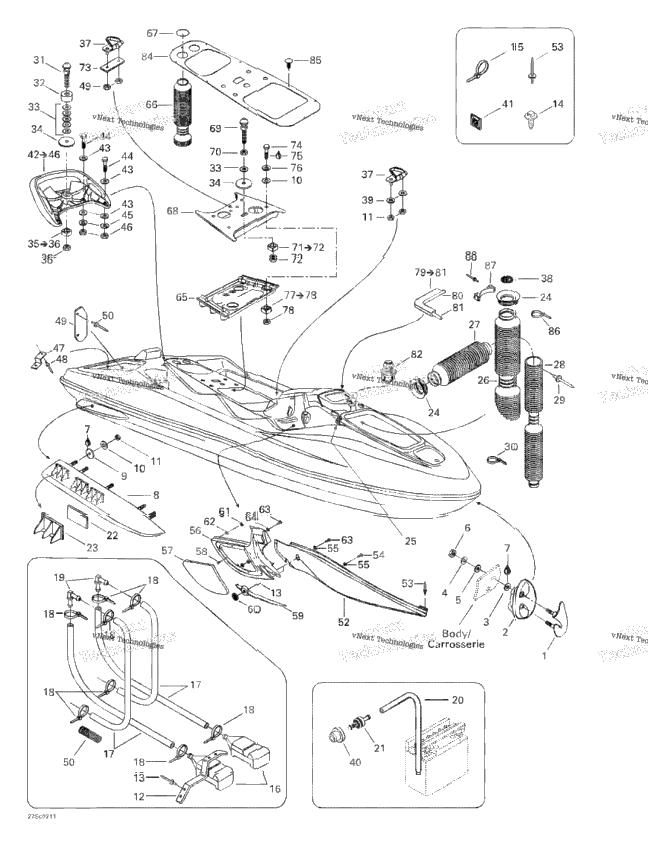

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 291000079 | REINFORCEMENT PLATE | 1 |
| 1 | 292000708 | Bow Eye Ass'y, Black | 1 |
| 1 | 292000453 | Shell, Black | 1 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 2 | 293830037 | Rubber Washer | 2 |
| 2 | 232581600 | Hex. Elastic Nut M8 | 2 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 292000594 | RH SPONSON | 1 |
| 1 | 292000595 | LH SPONSON | 1 |
| 10 | 293250026 | GASKET | 10 |
| 14 | 234062600 | Flat Washer M6, Stainless | 14 |
| 12 | 232561600 | Hex. Elastic Stop Nut M6 | 12 |
| 2 | 292000398 | LH SPRING CLIP | 2 |
| 6 | 293150011 | Pop Rivet 3/16" | 6 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 292000688 | Bailer Screen | ||
| 1 | 219704412 | Polyurethane Hose 8 MM 3000MM Long | 1 |
| 8 | 293750001 | Tie Wrap 94 mm | 8 |
| 2 | 293710057 | ELBOW FITTING 90 | 2 |
| 1 | 219704360 | Hose 6 Mm 15000Mm Long | 1 |
| 1 | 275500489 | Check Valve | 1 |
| 6 | 292000414 | CUSHION | 6 |
| 293450149 | Insert | ||
| 291001100 | VENT ADAPTOR | ||
| 291001512 | Protector | ||
| 291001772 | Vent Hose | ||
| 291001775 | Vent Hose | ||
| 204070575 | Vent Hose | ||
| 2 | 293150011 | Pop Rivet 3/16" | 2 |
| 291000664 | Stud Latch | ||
| 293830025 | Rubber Pad | ||
| 6 | 234002600 | Flat Washer 10 mm, Stainless | 6 |
| 2 | 291000628 | RUBBER WASHER | 2 |
| 271000598 | NUT HOUSING ASS'Y Includes 35 - 36. | ||
| 1 | 232501600 | HEX. ELASTIC NUT M10 | 1 |
| 291001479 | Seat Hook | ||
| 1 | 291001617 | Restrictor | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 293720029 | Grommet | 1 |
| 293750015 | TIE RAP MOUNT | ||
| 295500369 | Grab Handle (Black) Includes 42 - 46. | ||
| 8 | 234062600 | Flat Washer M6, Stainless | 8 |
| 4 | 207064060 | Hex. Screw M6 X 40 | 4 |
| 4 | 234161601 | Lock Washer Helical M6 | 4 |
| 4 | 232061600 | Hex. Nut M6 | 4 |
| 204050341 | Retaining Plate | ||
| 2 | 293150014 | Pop Rivet 3/16" | 2 |
| 204050197 | Storage Extension | ||
| 4 | 293150011 | Pop Rivet 3/16" | 4 |
| XXXX | Not Available As Spare Part - Spring | ||
| 291001403 | LH Moulding | ||
| 291001404 | RH Moulding | ||
| 4 | 293150065 | RIVET | 4 |
| 4 | 241141660 | Hex. Flange Screw K40 X 16 | 4 |
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 269500715 | RH Intake Grille (Starboard) | ||
| 269500714 | LH Intake Grille (Port) | ||
| 204070954 | RH Knee Pad | ||
| 204070956 | LH Knee Pad | ||
| 6 | 414644300 | Black, Dart | 6 |
| 2 | 269500716 | FINITION PLATE | 2 |
| 2 | 516000983 | Bombardier Logo | 2 |
| 204100060 | Hex. Jam Nut | ||
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 7 | 241141660 | Hex. Flange Screw K40 X 16 | 7 |
| 1 | 211200033 | FLAT WASHER | 1 |
| 1 | 291001281 | BRIDGE LOWER | 1 |
| 293300063 | O-Ring | ||
| 291000851 | Bridge Upper | ||
| 1 | 291000945 | SEAT STUD | 1 |
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 271000598 | NUT HOUSING ASS'Y Includes 71 - 72. | ||
| 4 | 207067060 | Hex. Screw M6 X 70 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 4 | 269500252 | M6 Nut Housing Ass'y Includes 77 - 78. | 4 |
| 293830090 | Rubber Pad Includes 79 - 81. | ||
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 1 | 293720042 | GROMMET | 1 |
| 204070561 | Engine Access Panel | ||
| 10 | 293730006 | Black, Dart | 10 |
| 1 | 293750019 | Tie Rap | 1 |
| 274000891 | Support | ||
| 2 | 293150043 | Pop Rivet 3/16" | 2 |
