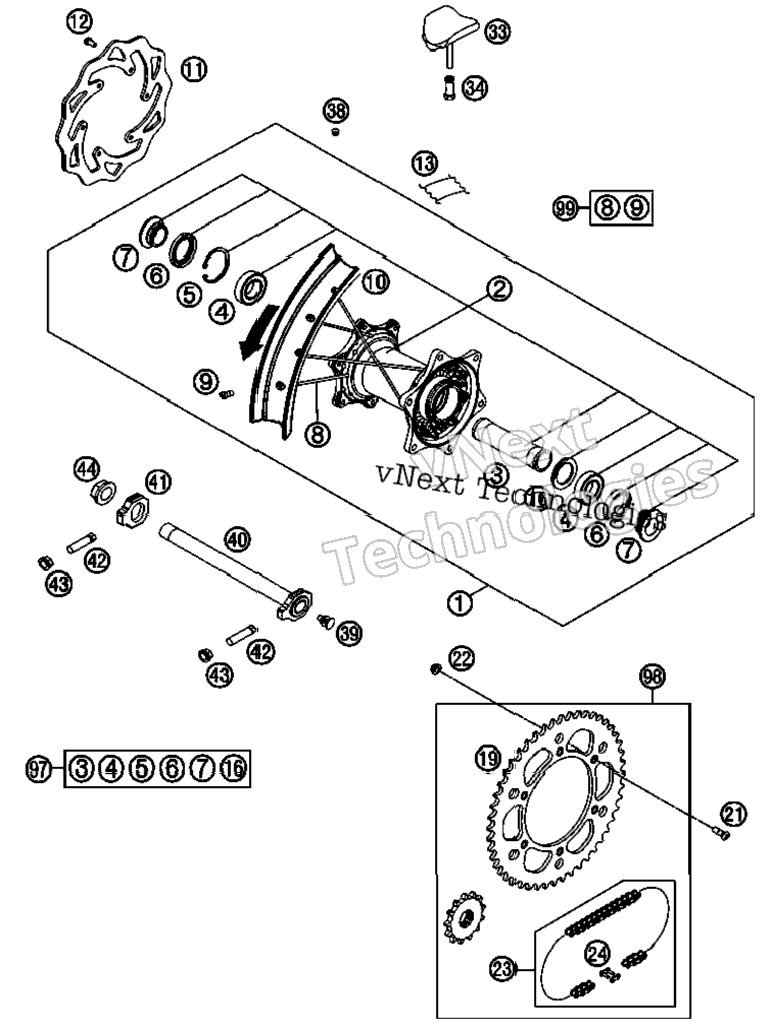

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 77710001044 | REAR WHEEL CPL.2,15X19''EXC.13 13 | 1 |
| 1 | 78010010244 | REAR WHEEL HUB CPL. 2013 2013 | 1 |
| 1 | 77710011000 | BEARING DISTANCE TUBE 121,5MM | 1 |
| 2 | 0625060058 | GR.BALL BEAR.6005 DDU2CG23S6NM | 2 |
| 1 | 0472047175 | CIRCLIP DIN0472-47X1,75 | 1 |
| 2 | 0760324771 | SHAFT SEAL RING 32X47X7 BSL | 2 |
| 2 | 77710016000 | DISTANCE BUSHING REAR WHEEL | 2 |
| 36 | 7711007120530 | SPOKE M4,5x205-19'' BLACK | 36 |
| 36 | 77109072000 | SPOKE NIPPLE M4,5 AL 11 11 | 36 |
| 1 | 77110070000 | RIM 2,15''X19'' EXCEL 11 11 | 1 |
| 1 | 77310060000 | BRAKE DISC REAR 220 | 1 |
| 6 | 59009062013 | SPECIAL SCREW M6X13 WS=8 10.9 10.9 | 6 |
| 1 | 50310073200 | RIM BAND 18'' AND 19'' | 1 |
| 1 | 77710015000 | DISTANCE RING | 1 |
| 1 | 58310051038 | REAR SPROCKET 38-T As Required | 1 |
| 1 | 58310051042 | REAR SPROCKET 42-T As Required | 1 |
| 1 | 58310151040 | REAR SPROCKET 40-T As Required | 1 |
| 1 | 58310151045 | REAR SPROCKET 45-T As Required | 1 |
| 1 | 58310151048 | REAR SPROCKET 48-T As Required | 1 |
| 1 | 58310151049 | REAR SPROCKET 49-T As Required | 1 |
| 1 | 58310151050 | REAR SPROCKET 50-T | 1 |
| 1 | 58310151051 | REAR SPROCKET 51-T As Required | 1 |
| 1 | 58310151052 | REAR SPROCKET 52-T As Required | 1 |
| 6 | 0019080266S | COUNTER-SUNK SCREW ISA45 M8X26 | 6 |
| 6 | 06923080003 | hex nut EN 1661 M8 WS13 | 6 |
| 1 | 50310165118 | CHAIN 5/8X1/4'' MX | 1 |
| 1 | 50310166000 | CONNECTING LINK F. 50310165118 | 1 |
| 1 | 78110090000 | RIM LOCK 2,15'' | 1 |
| 1 | 77110090050 | NUT FOR WHEEL HOLDER | 1 |
| 1 | 55003135000 | PLUG FOR RIM As Required | 1 |
| 1 | 50210086000 | COVERING CAP SFL16 As Required | 1 |
| 1 | 77710085044 | WHEEL SPINDLE CPL. '13 '13 | 1 |
| 1 | 77710084000 | CHAIN TENSIONER R/S | 1 |
| 2 | 50304040100 | screw M10x1.25x50 WS10 | 2 |
| 2 | 58414030000 | HH COLLAR NUT M10X1,25 WS=13 | 2 |
| 1 | 61010086000 | COLLAR NUT M25X1,5 WS=32 05 05 | 1 |
| 1 | 77710015010 | REAR WHEEL REP. KIT As Required | 1 |
| 1 | 00050002005 | DRIVETRAIN KIT 125 SX 13T/50T As Required | 1 |
| 00050000903 | SPOKE KIT REAR 19'' As Required, 19" |
